Scoupe L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connector Locations by Number
>>

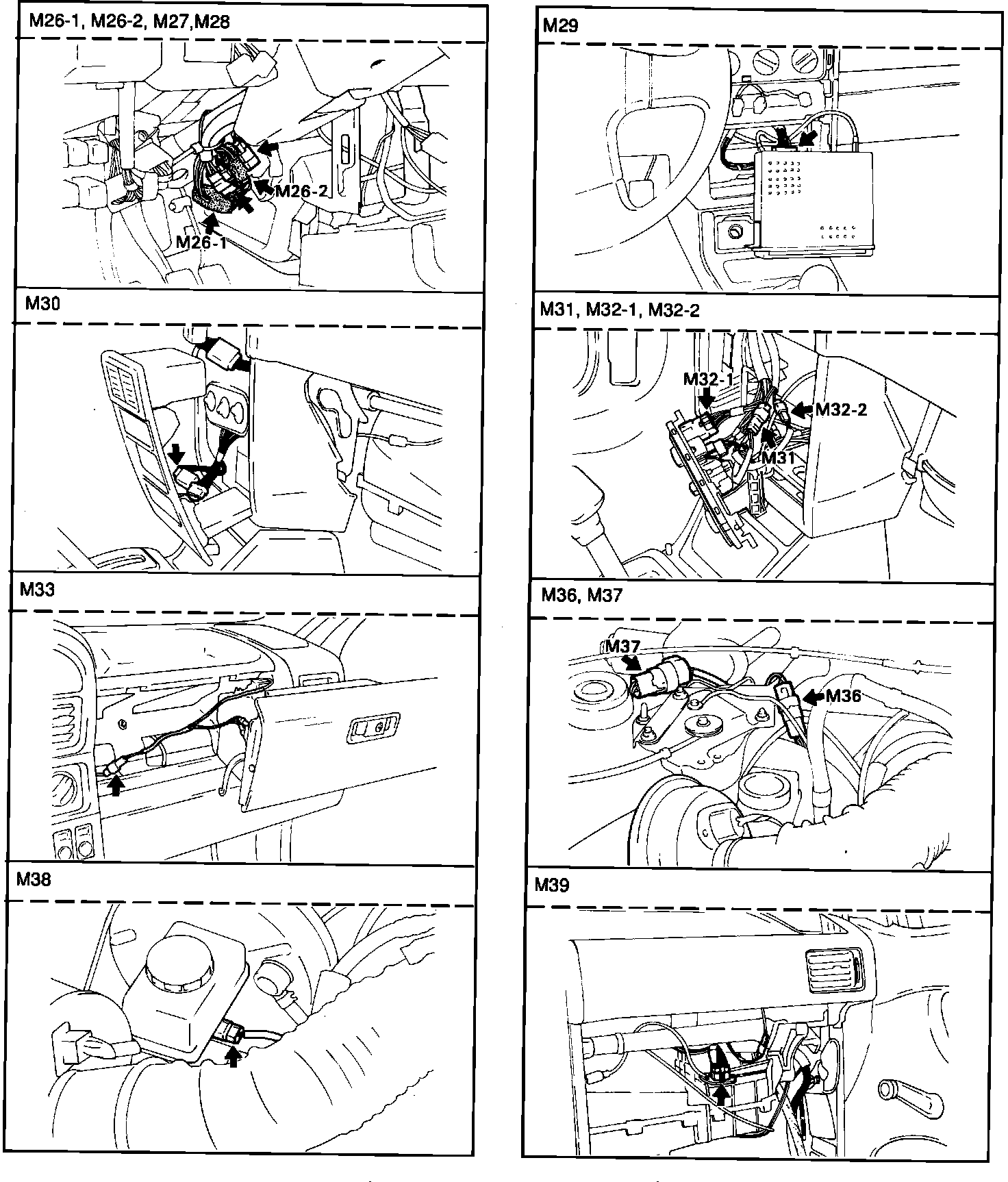

Connectors M26-1 ~ M39
Connectors M26-1 ~ M39
Component Locations:
