Electrical Diagrams

PART 1 OF 5

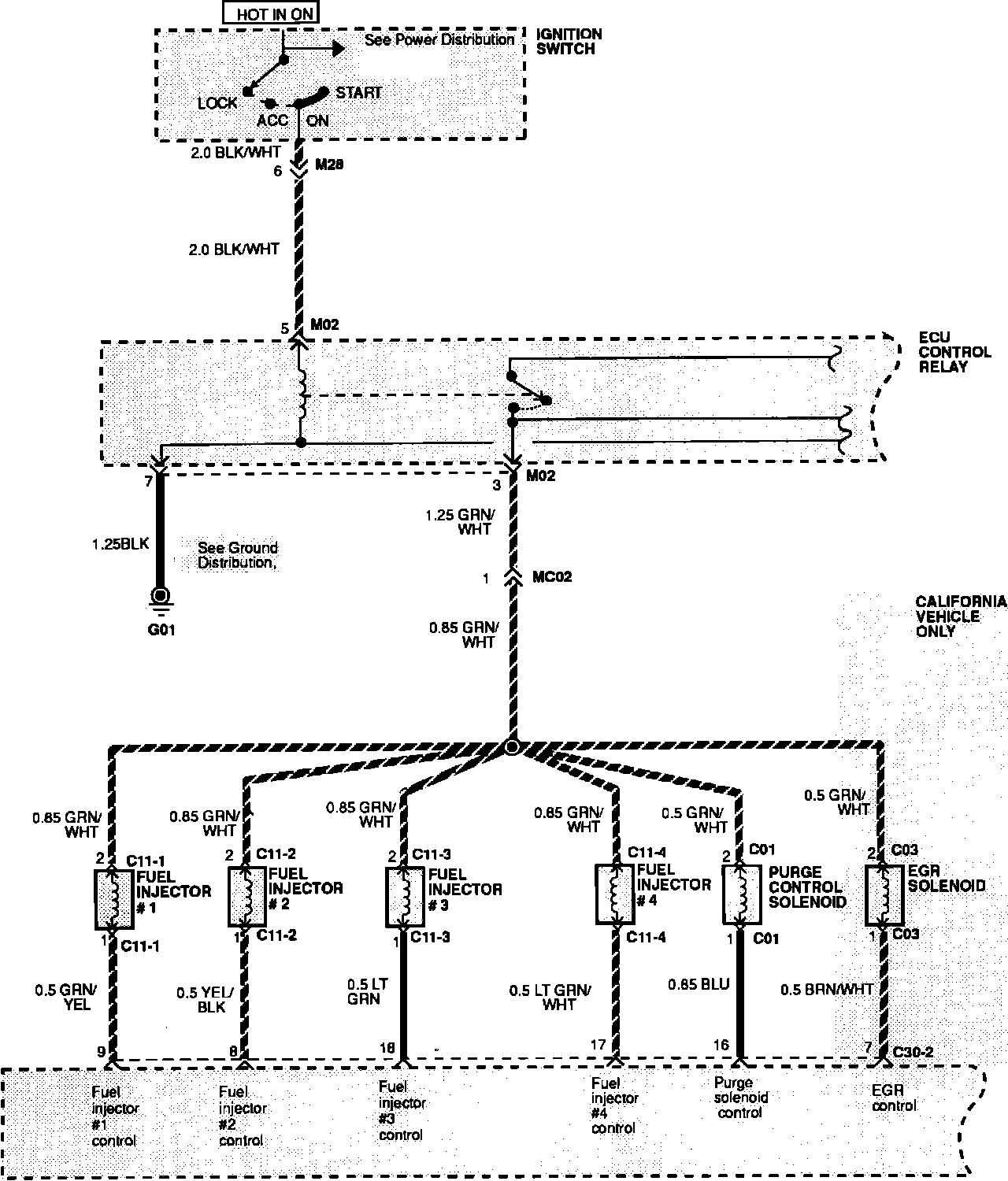

Multi-port Injection:

PART 2 OF 5

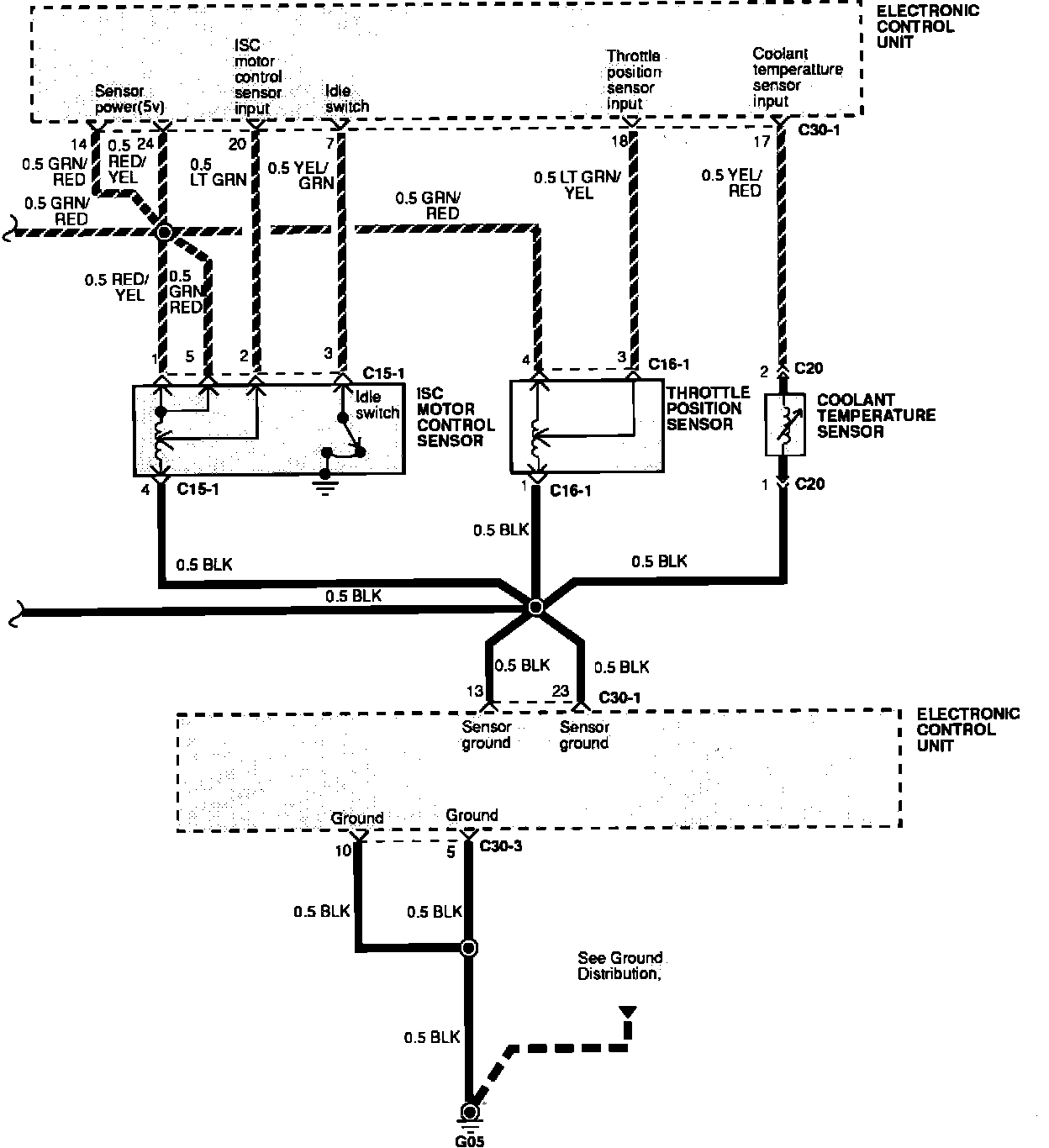

Multi-port Injection:

PART 3 OF 5

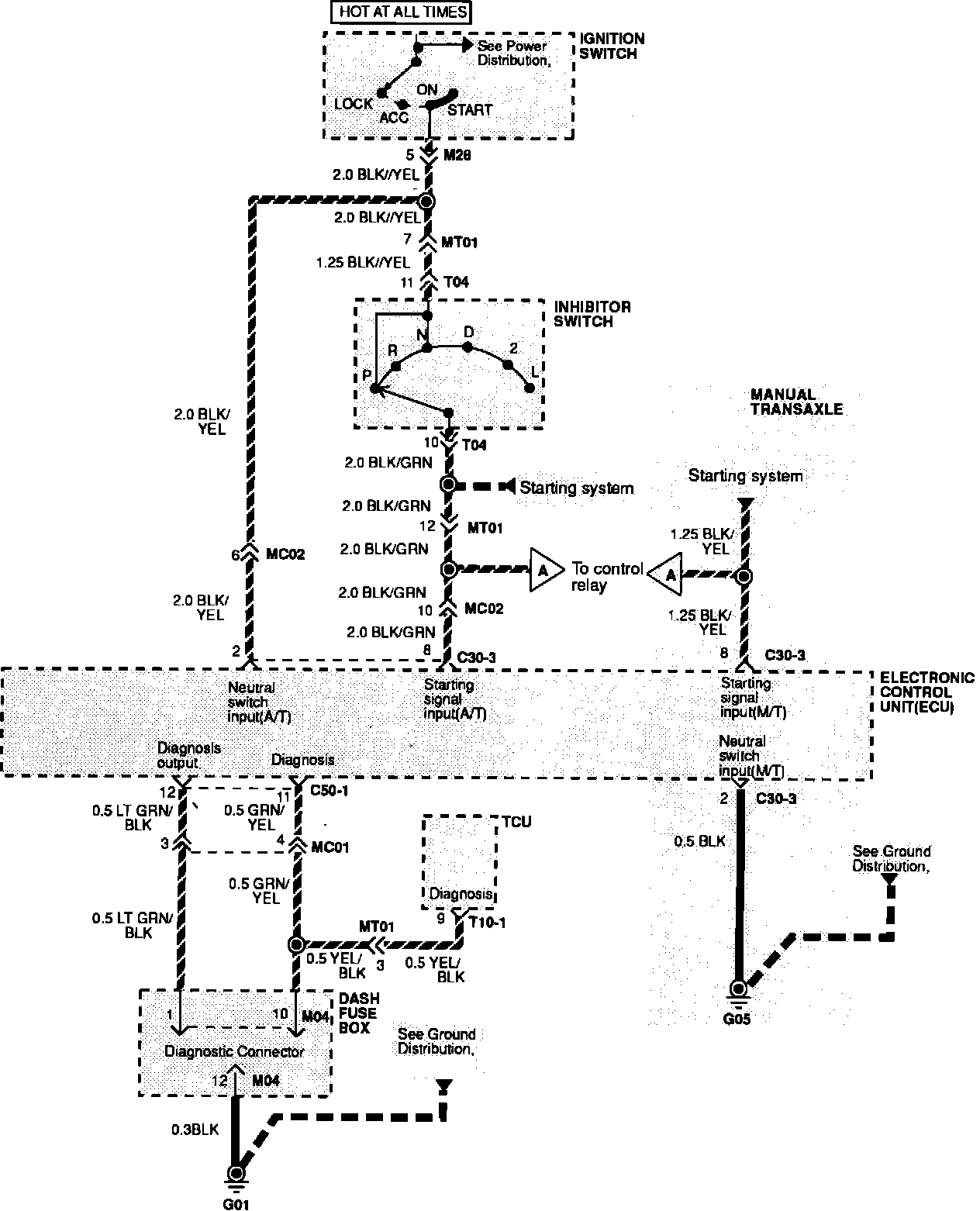

Multi-port Injection:

PART 4 OF 5

Multi-port Injection:

PART 5 OF 5

Multi-port Injection:

For further information refer to CHASSIS ELECTRICAL DIAGRAMS
