Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1992
>>
Sonata L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C01 - C18
C01 - C18

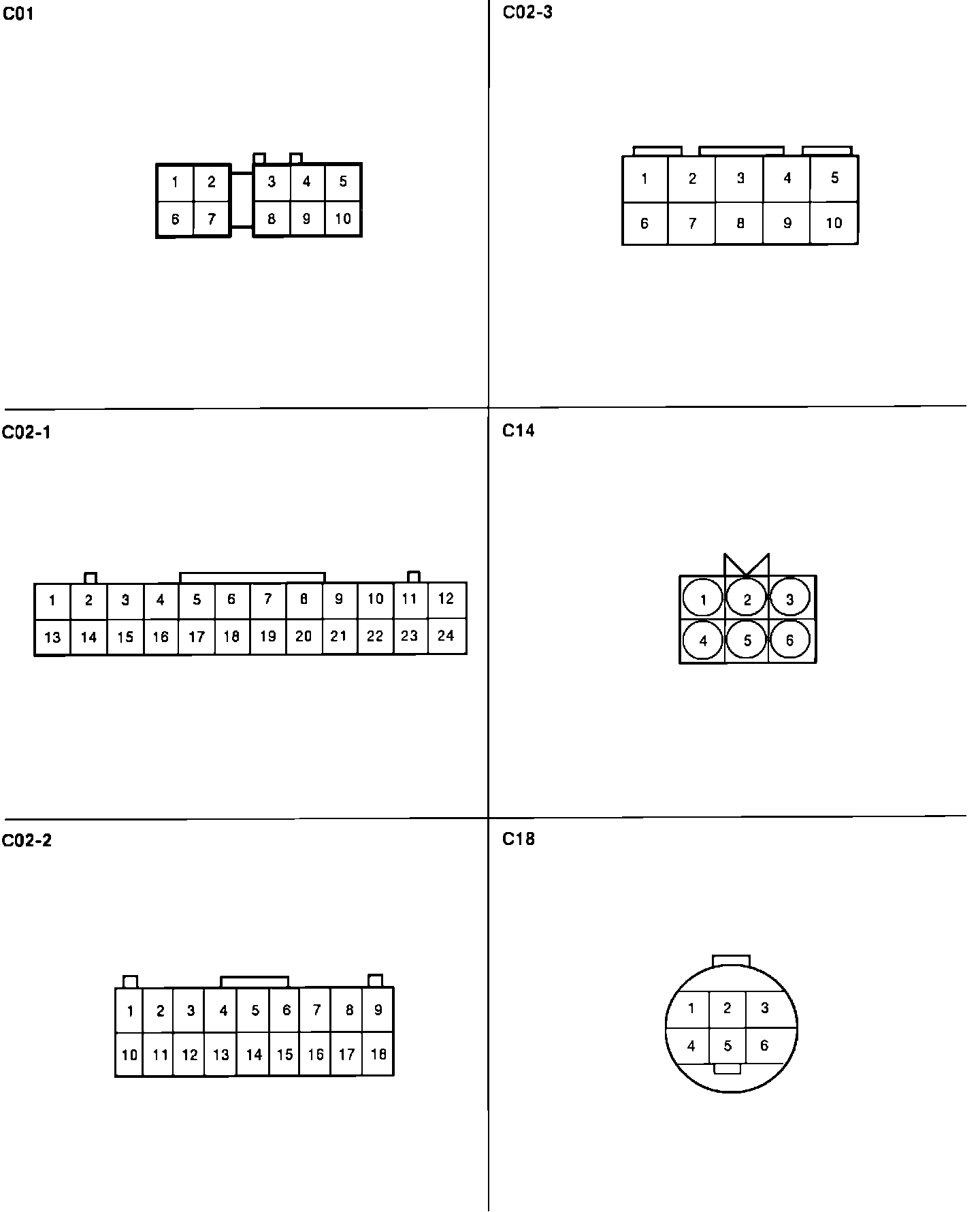

Connector Identification: C01 Thru C18:
