Sonata L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
M94 - MD02-1
M94 - MD02-1

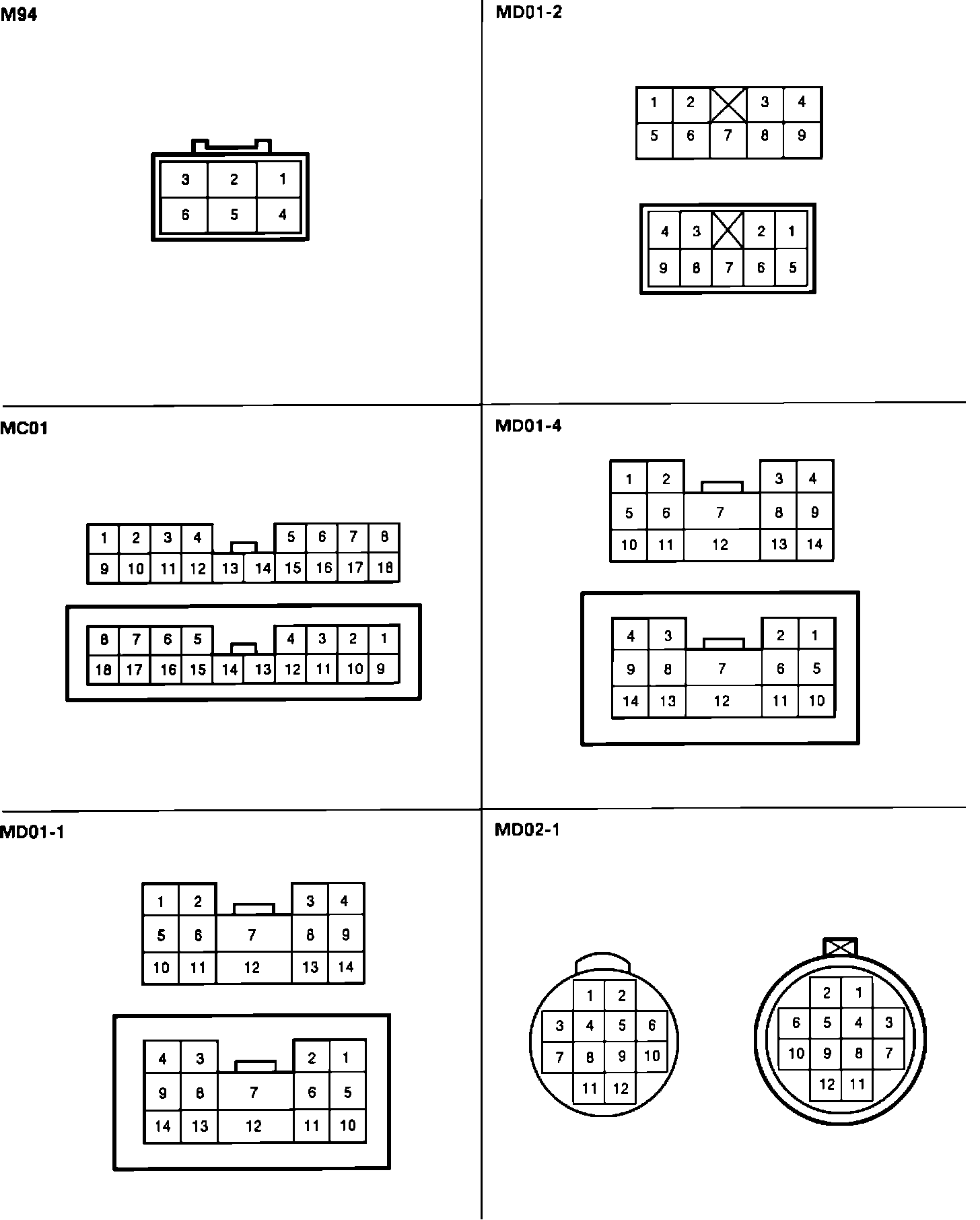

Connector Identification: M94 Thru MD02-1:
