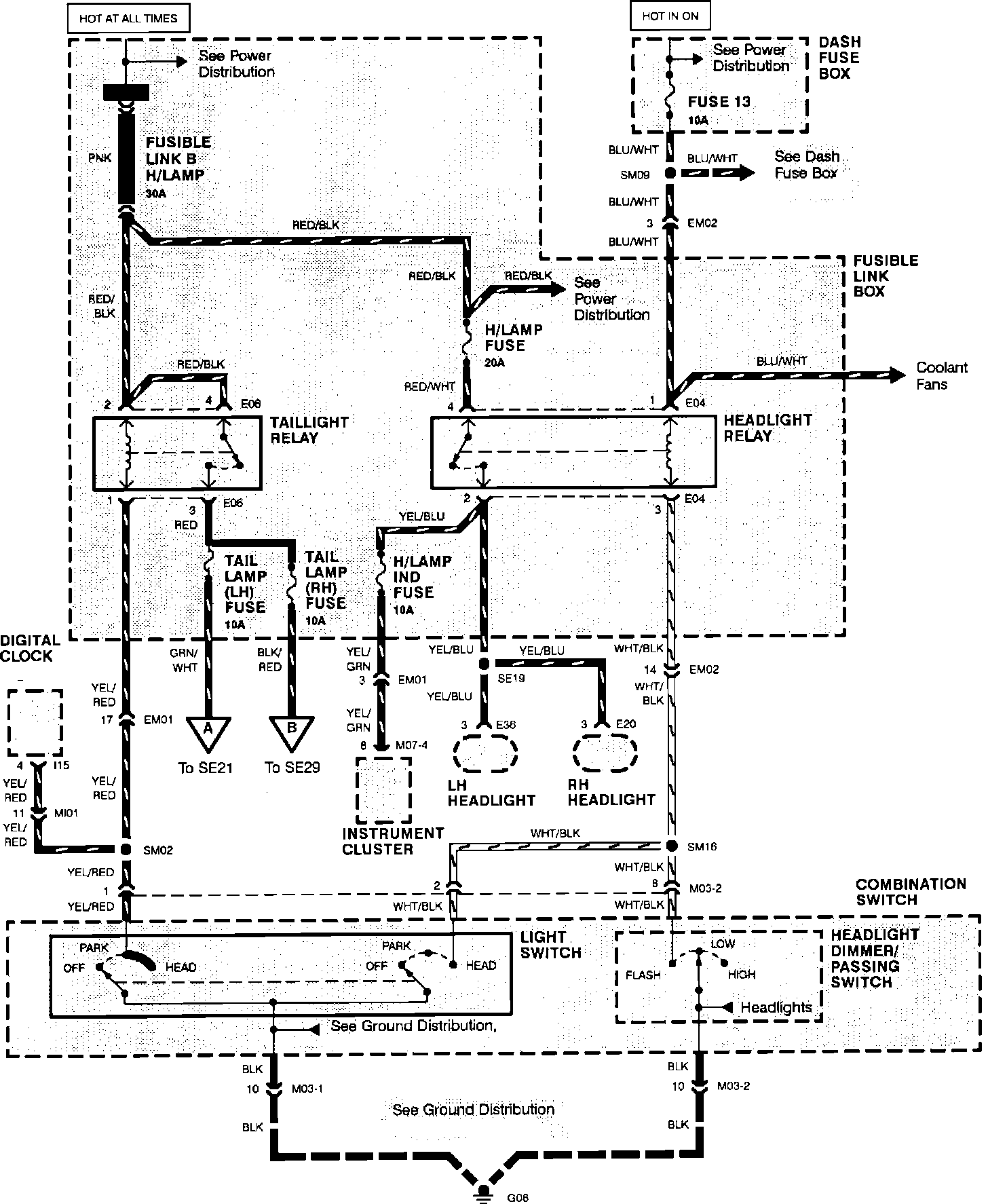

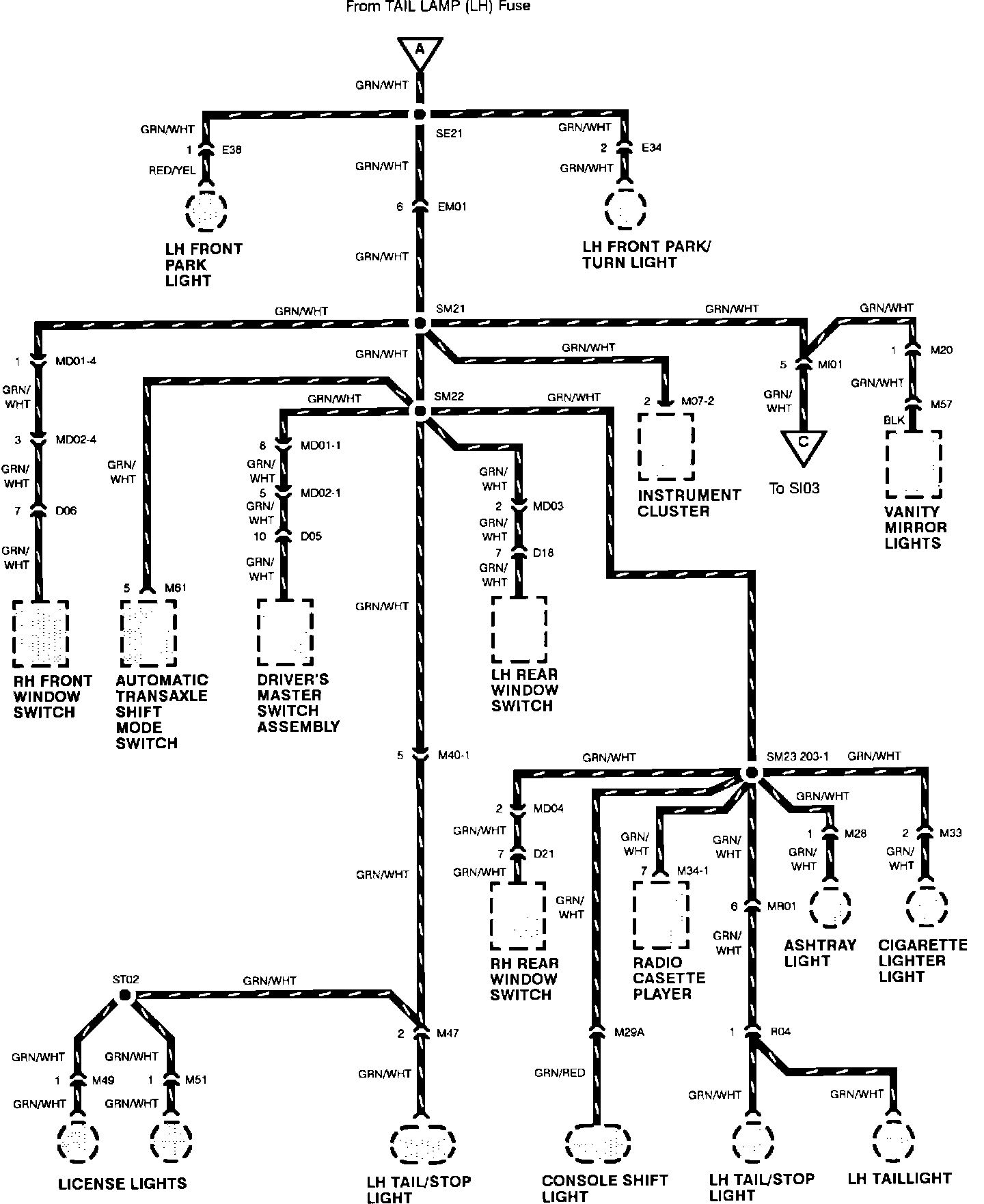

Headlamp Switch

Light Switch Details:



Light Switch Details:



Light Switch Details:



Light Switch Details:
