Home >> Hyundai >> 1992 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device Control Module

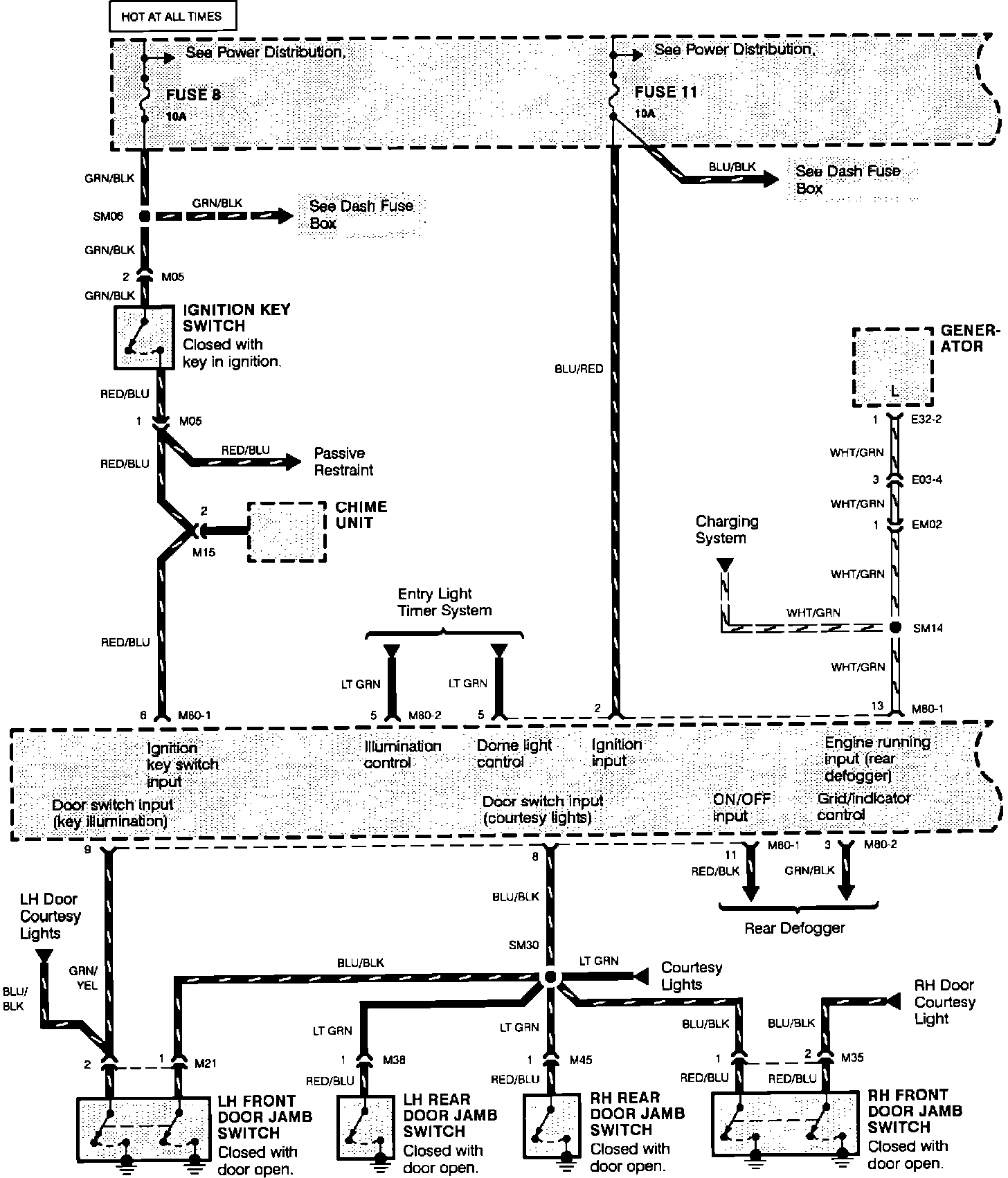

Audible Warning Device Control Module

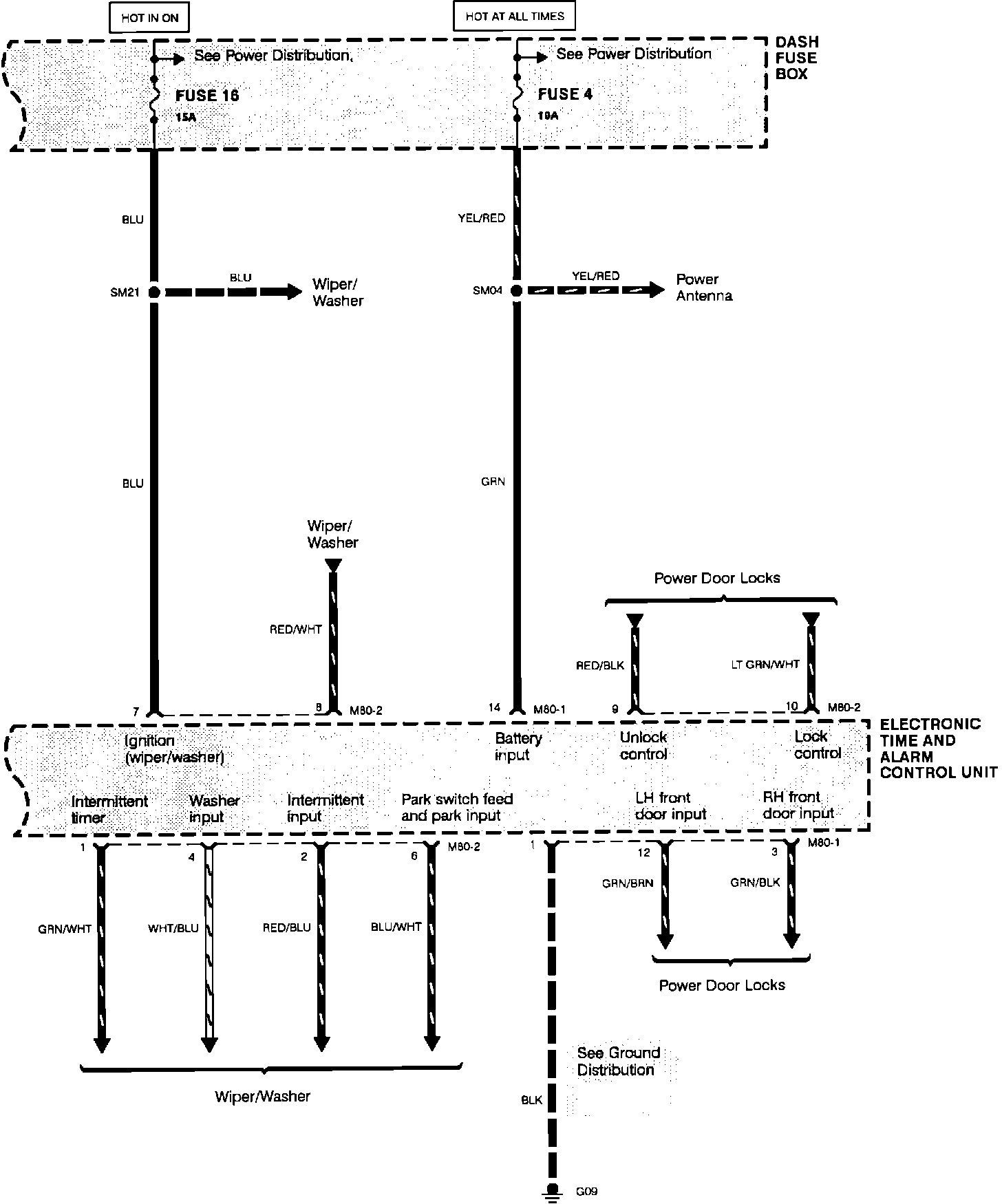

Time And Alarm Control:



Time And Alarm Control:
