System Diagram

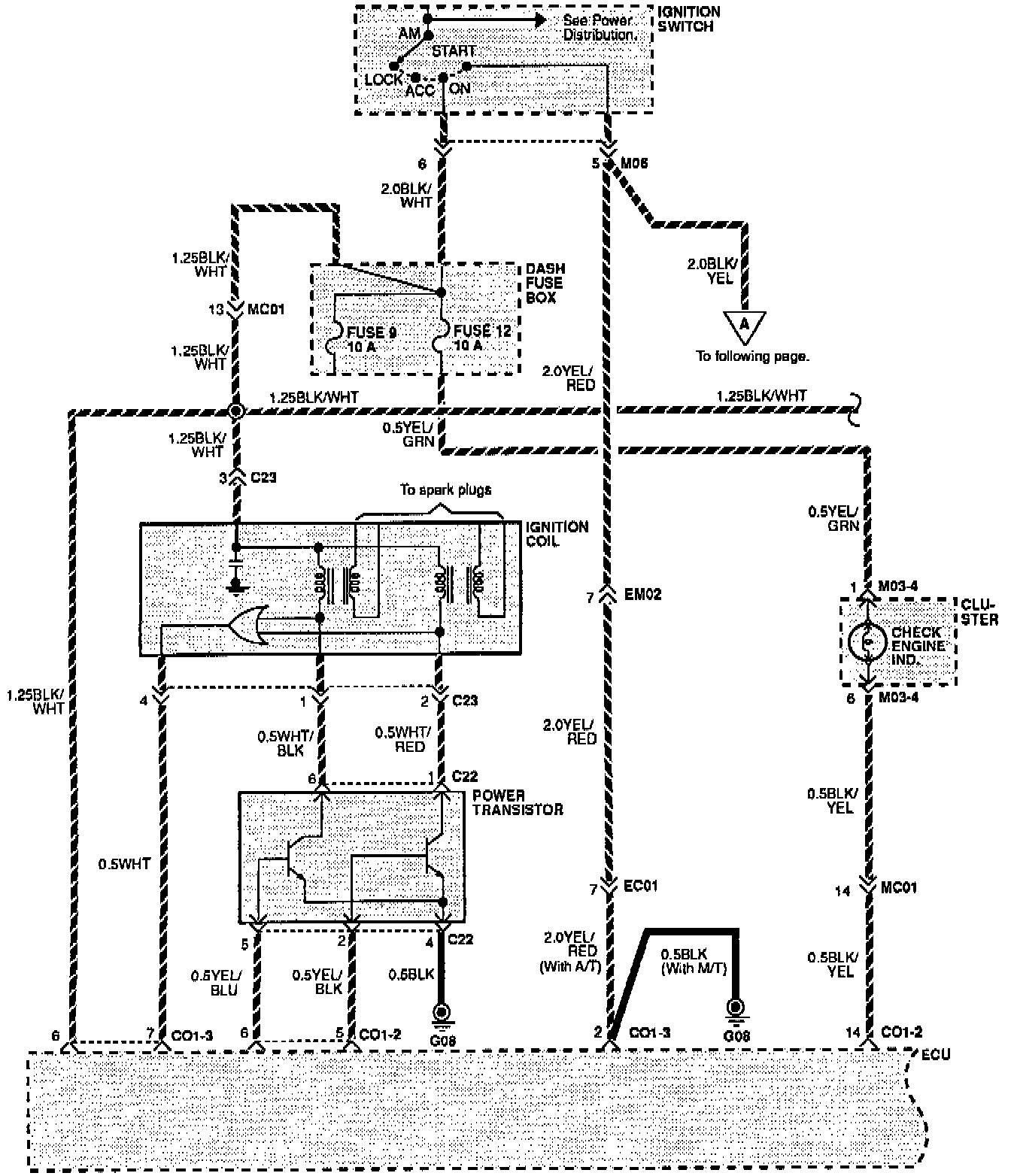

PART 1 OF 6




PART 2 OF 6




PART 3 OF 6




PART 4 OF 6




PART 5 OF 6




PART 6 OF 6
