Engine Control Harness

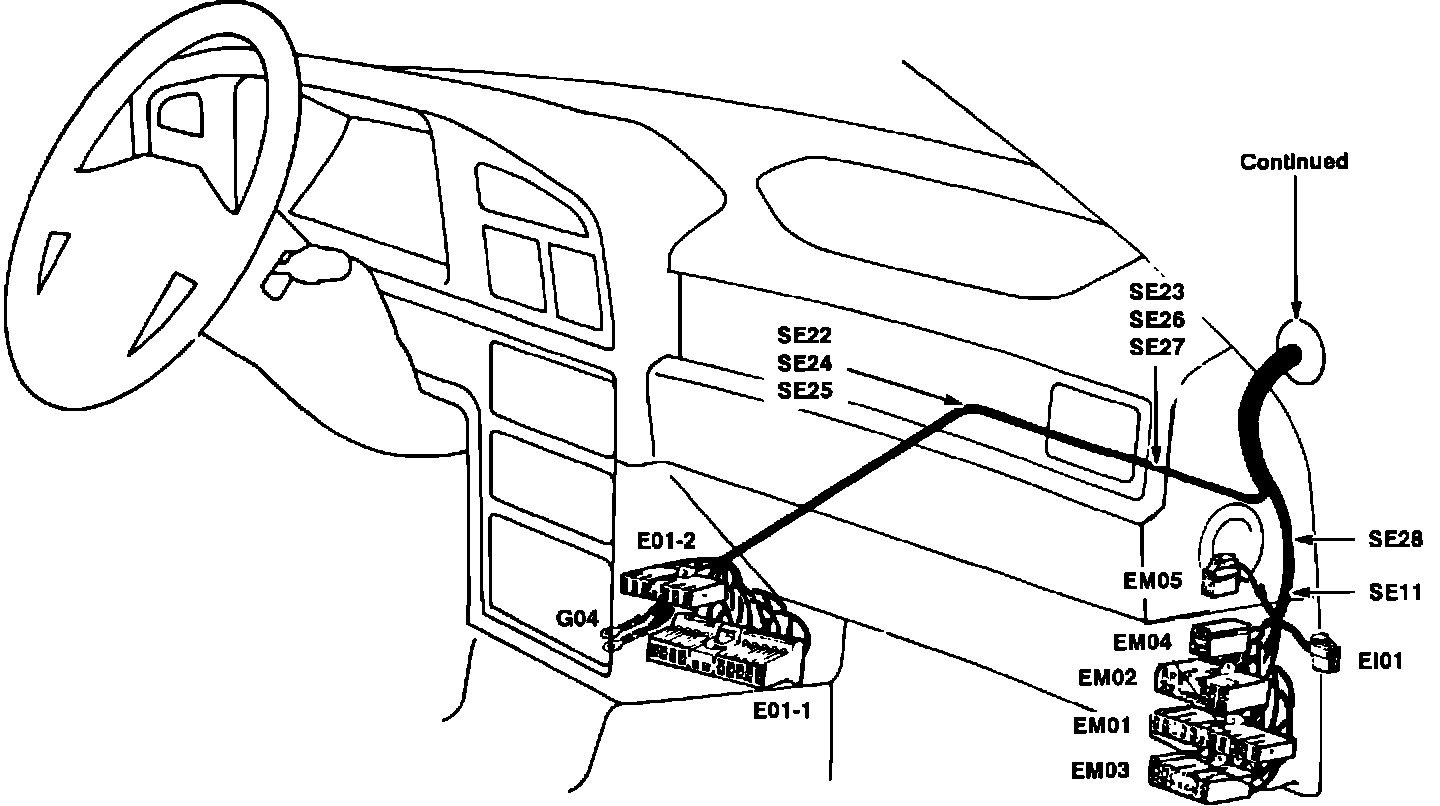

Main Harness Routing: Engine:

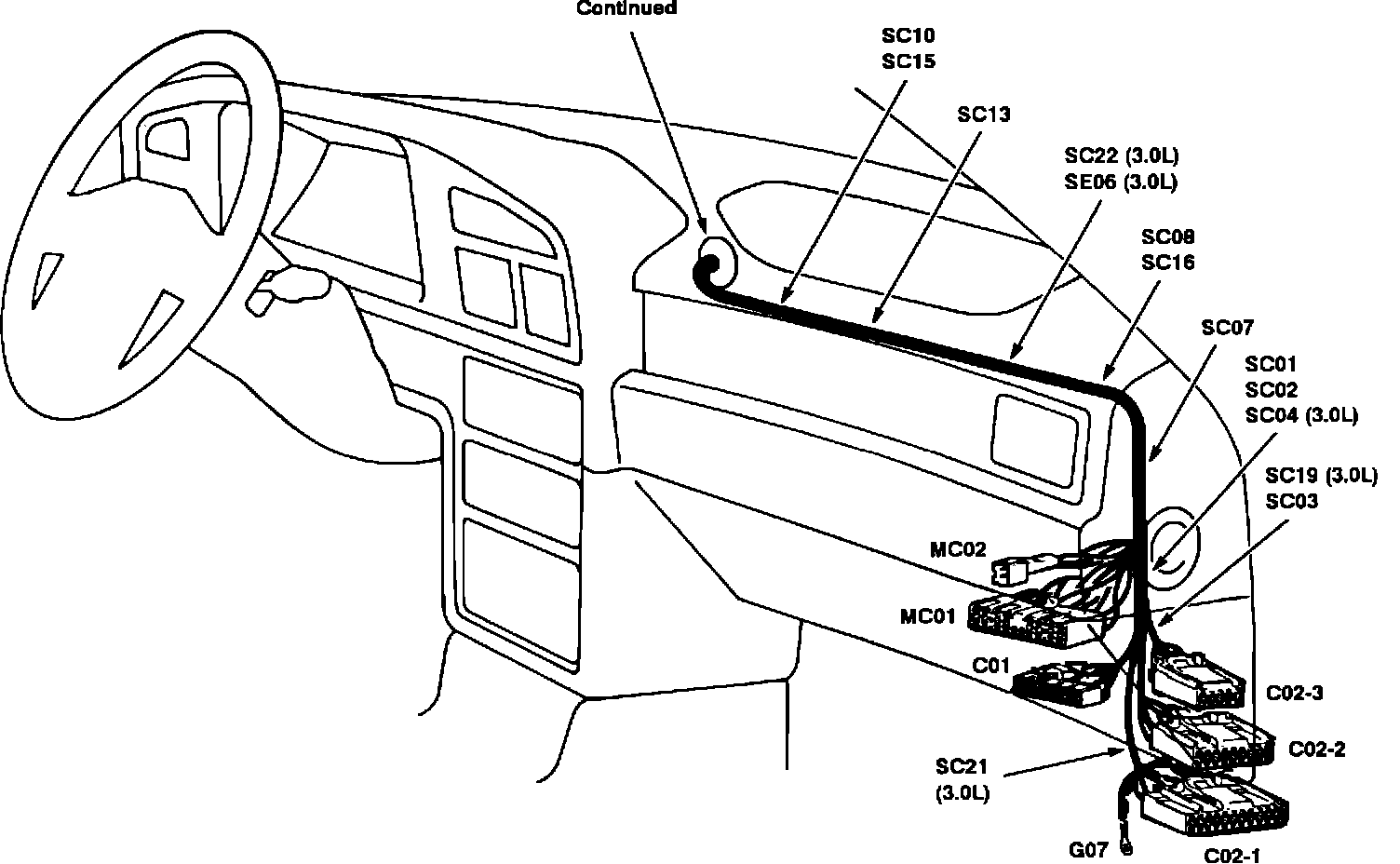

Main Harness Routing: Engine:

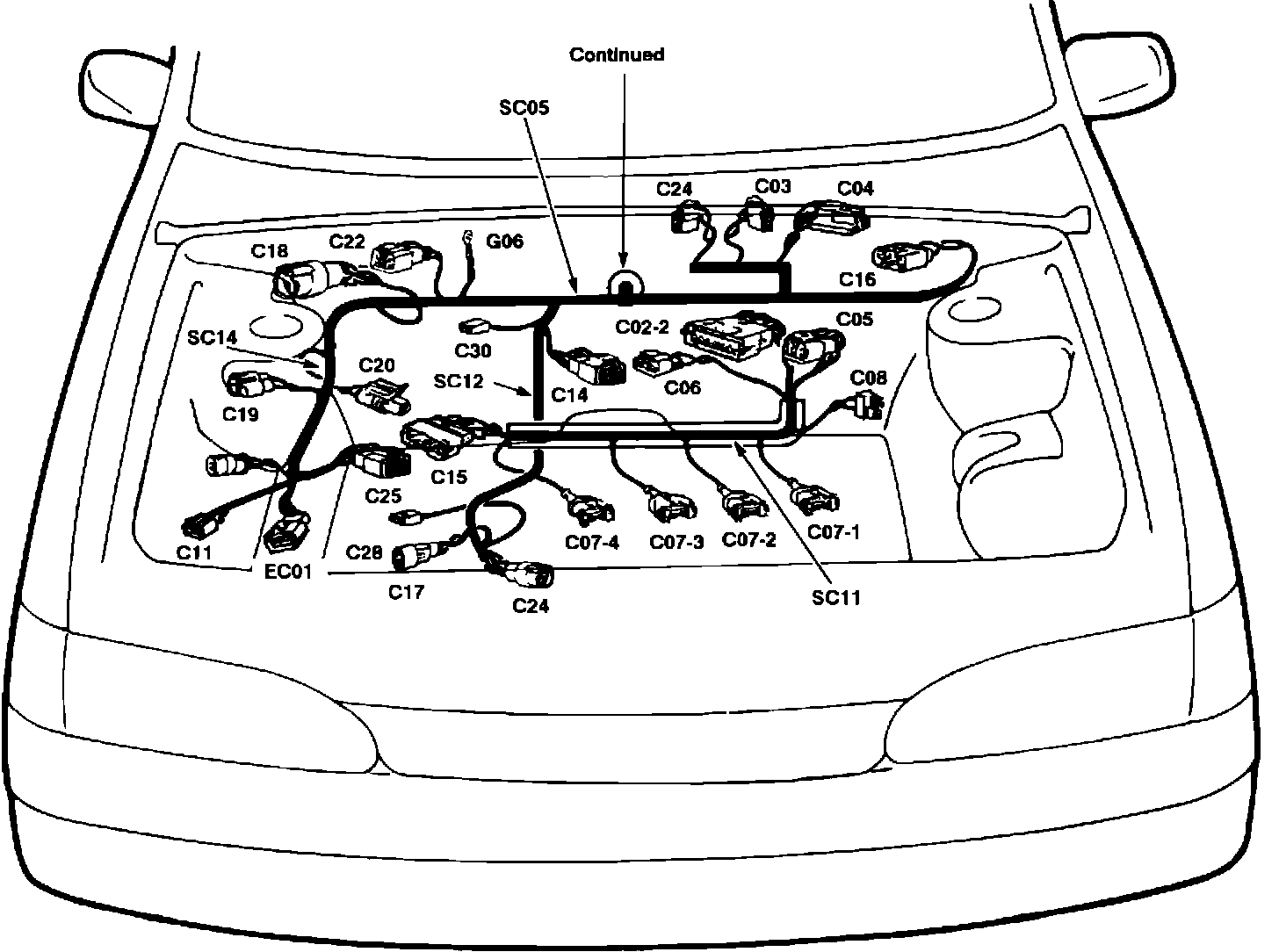

Main Harness Routing: Engine Control:



Main Harness Routing: Engine Control:
