Home
>>
Hyundai
>>
1992
>>
Sonata V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C22 - D06
C22 - D06

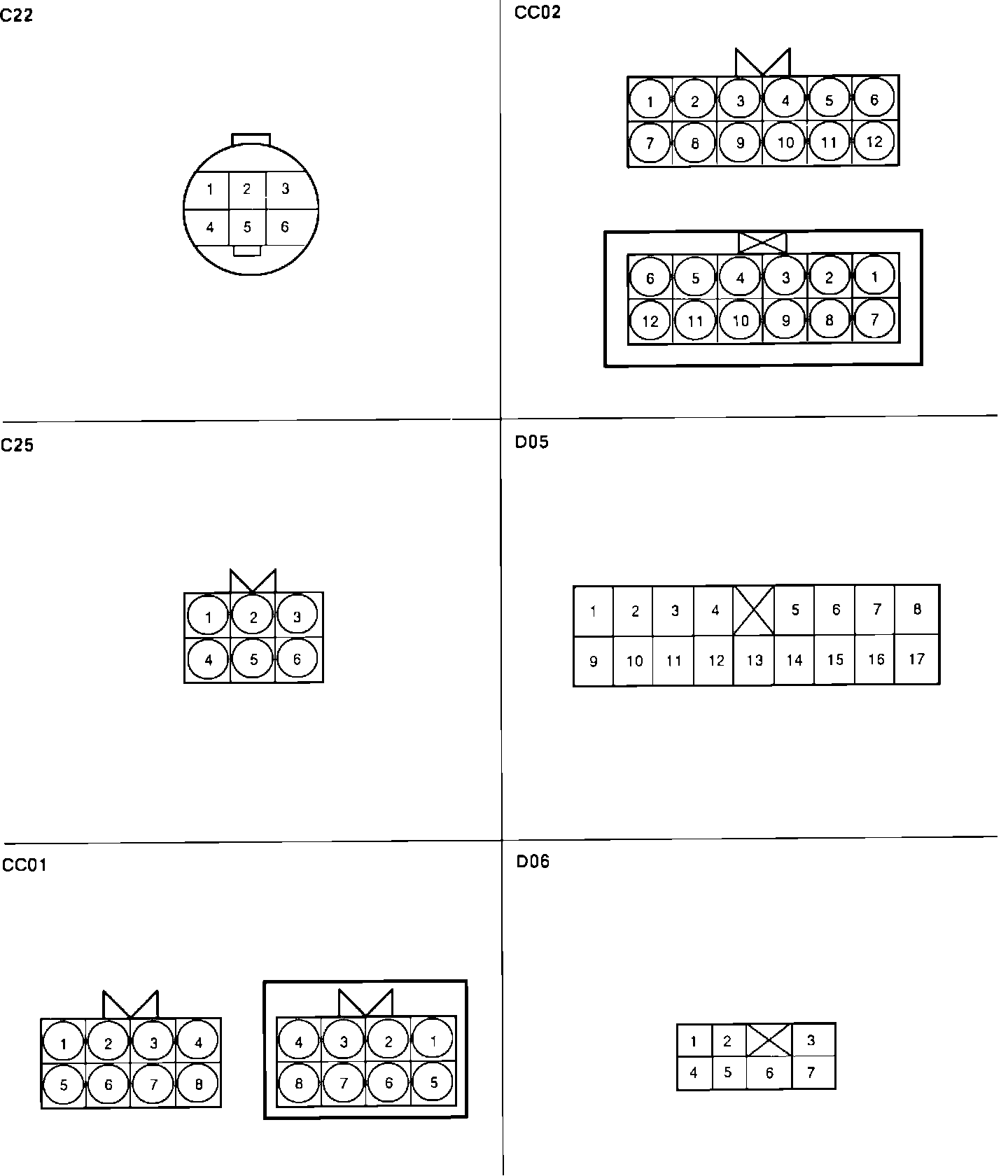

Connector Identification: C22 Thru D06:
