Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1992
>>
Sonata V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
M07-3 - M18
M07-3 - M18

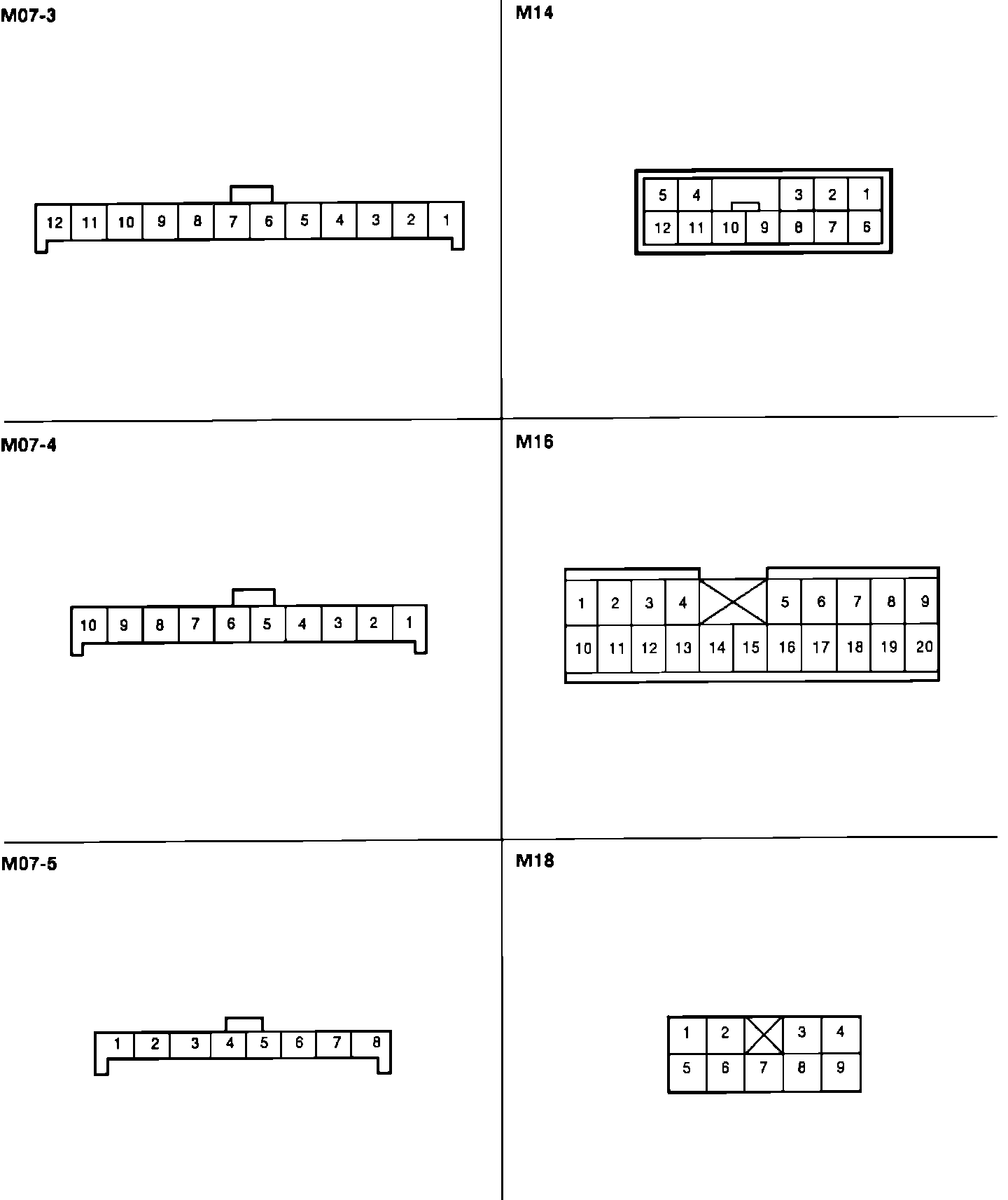

Connector Identification: M07-3 Thru M18:
