System Diagram

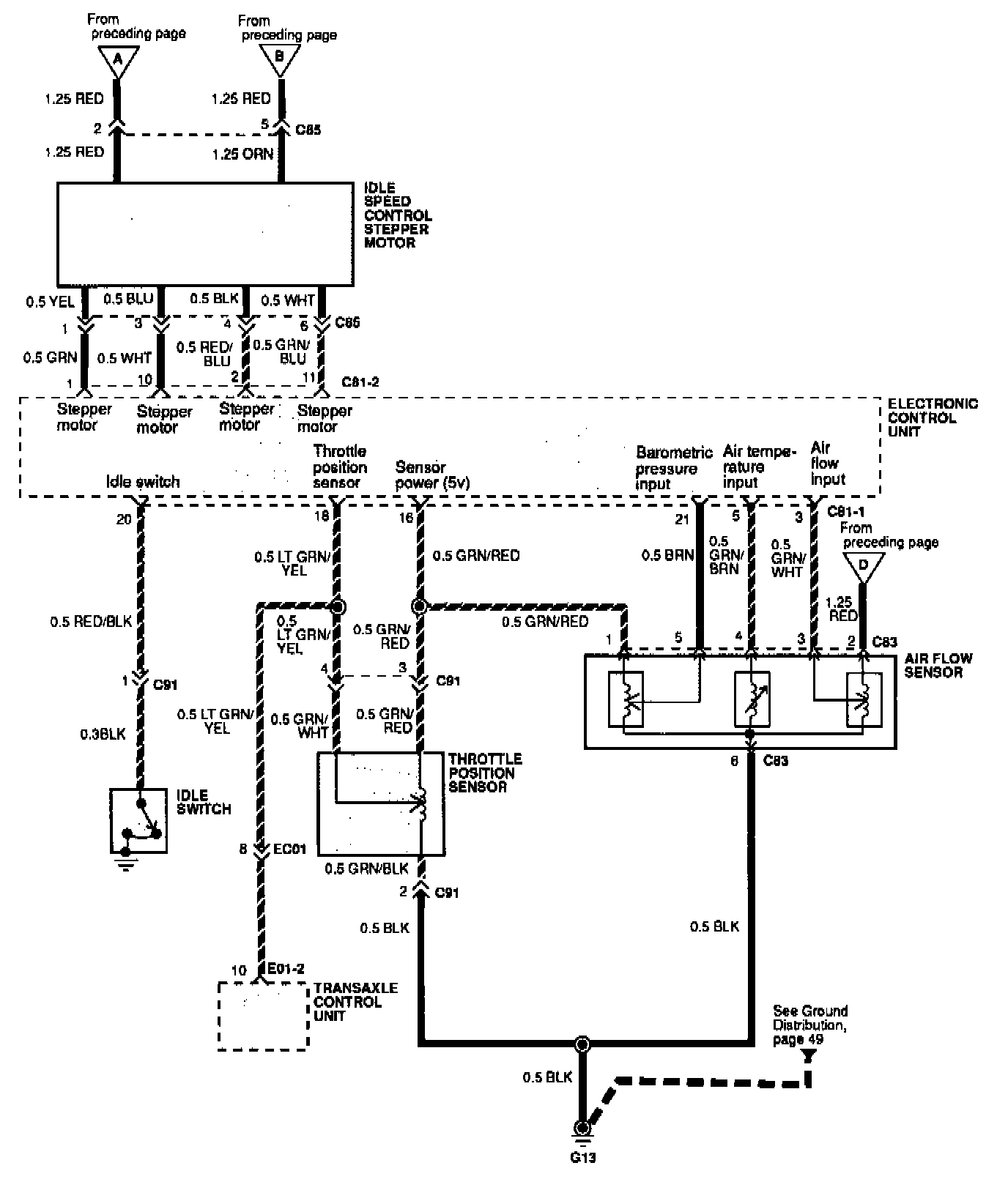

Multiport Fuel Injection System (Part 1 Of 6):

Part 1 of 6

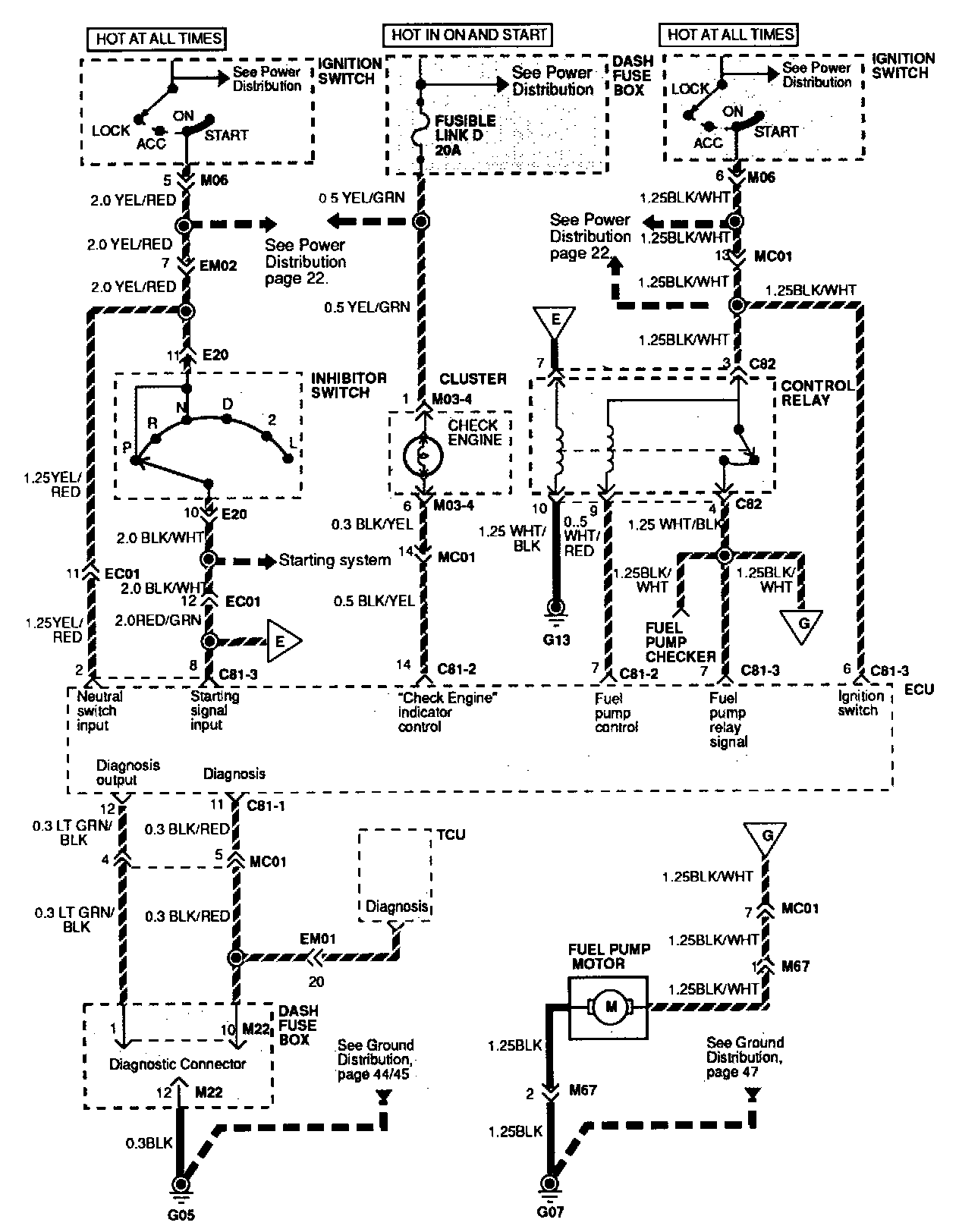

Part 2 Of 6:

Part 2 of 6

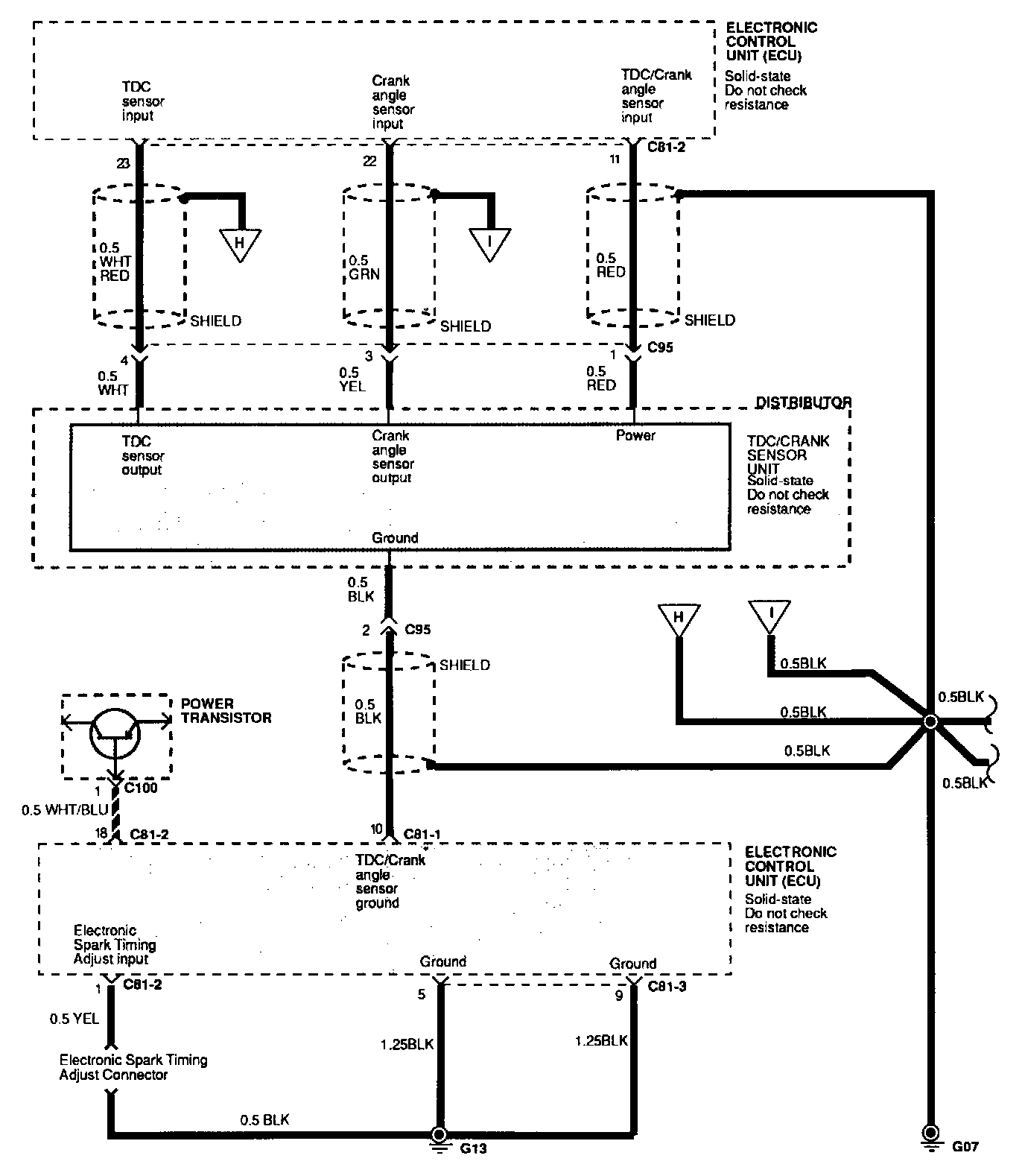

Multiport Fuel Injection System (Part 3 Of 6):

Part 3 of 6

Multiport Fuel Injection System (Part 4 Of 6):

Part 4 of 6

Multiport Fuel Injection System (Part 5 Of 6):

Part 5 of 6

Multiport Fuel Injection System (Part 6 Of 6):

Part 6 of 6
