Elantra L4-1595cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C21 - D16
C21 - D16

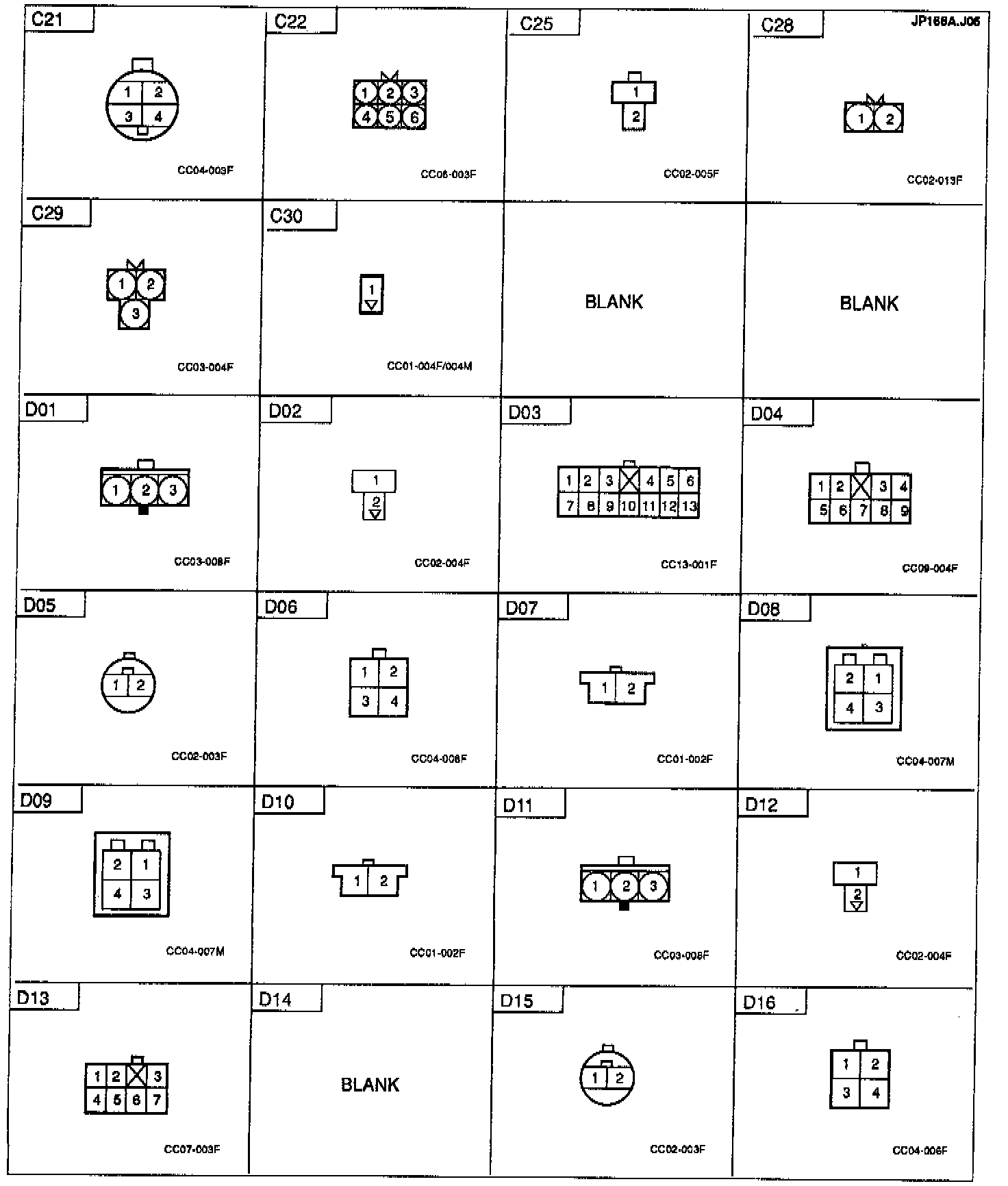

Connector Identification: C21 Thru D16:
