Home >> Hyundai >> 1993 >> Elantra L4-1595cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control

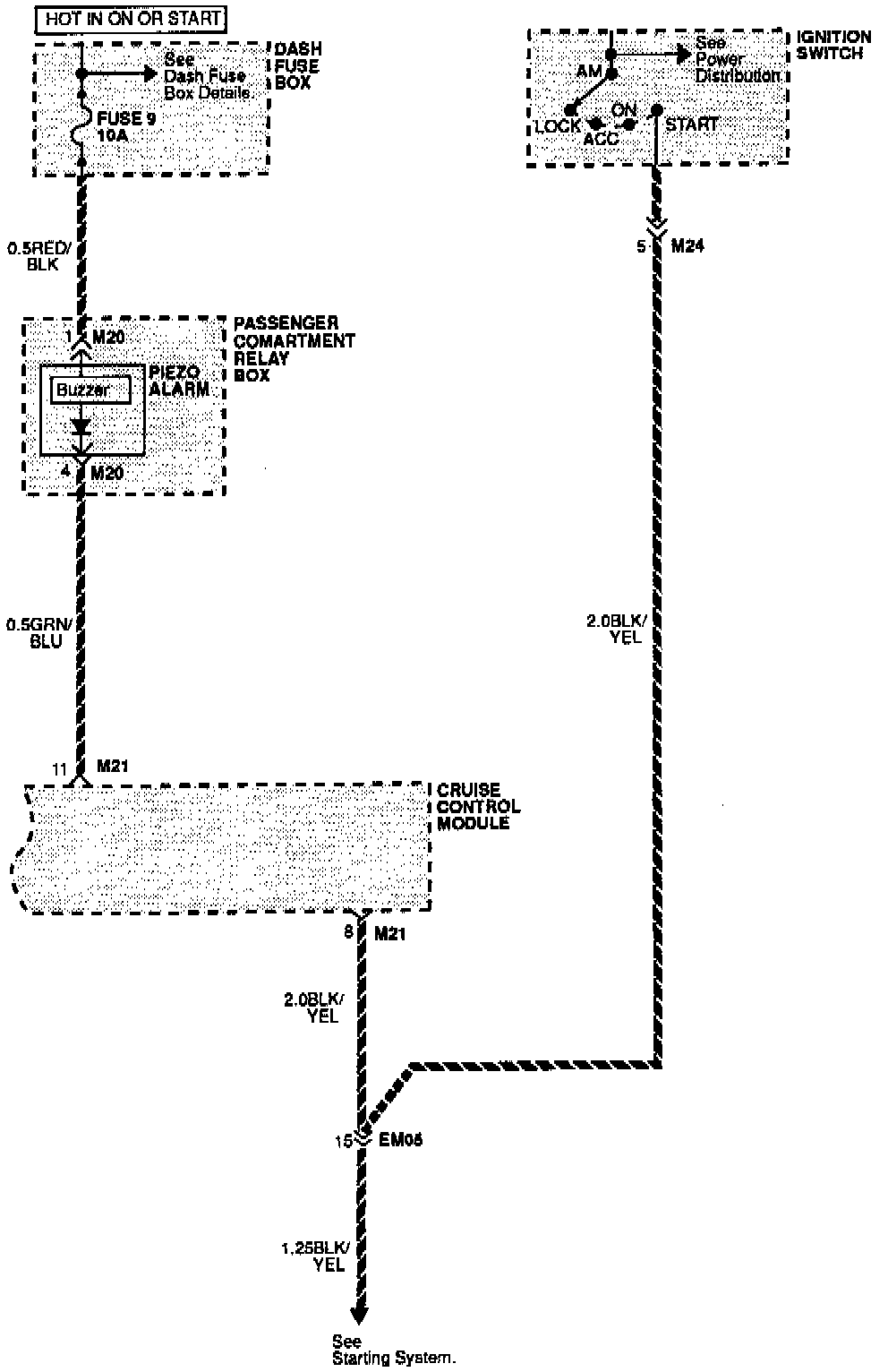

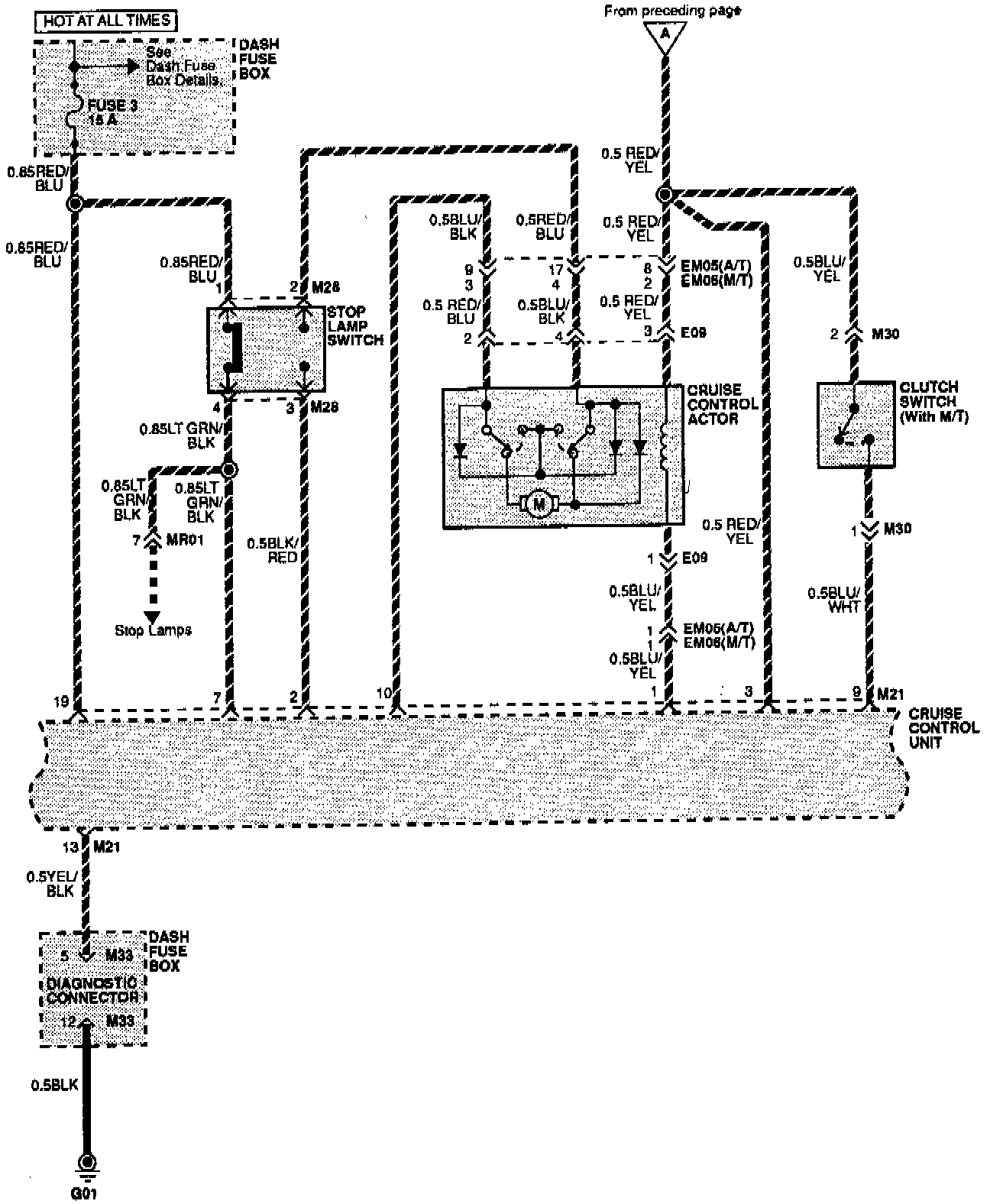

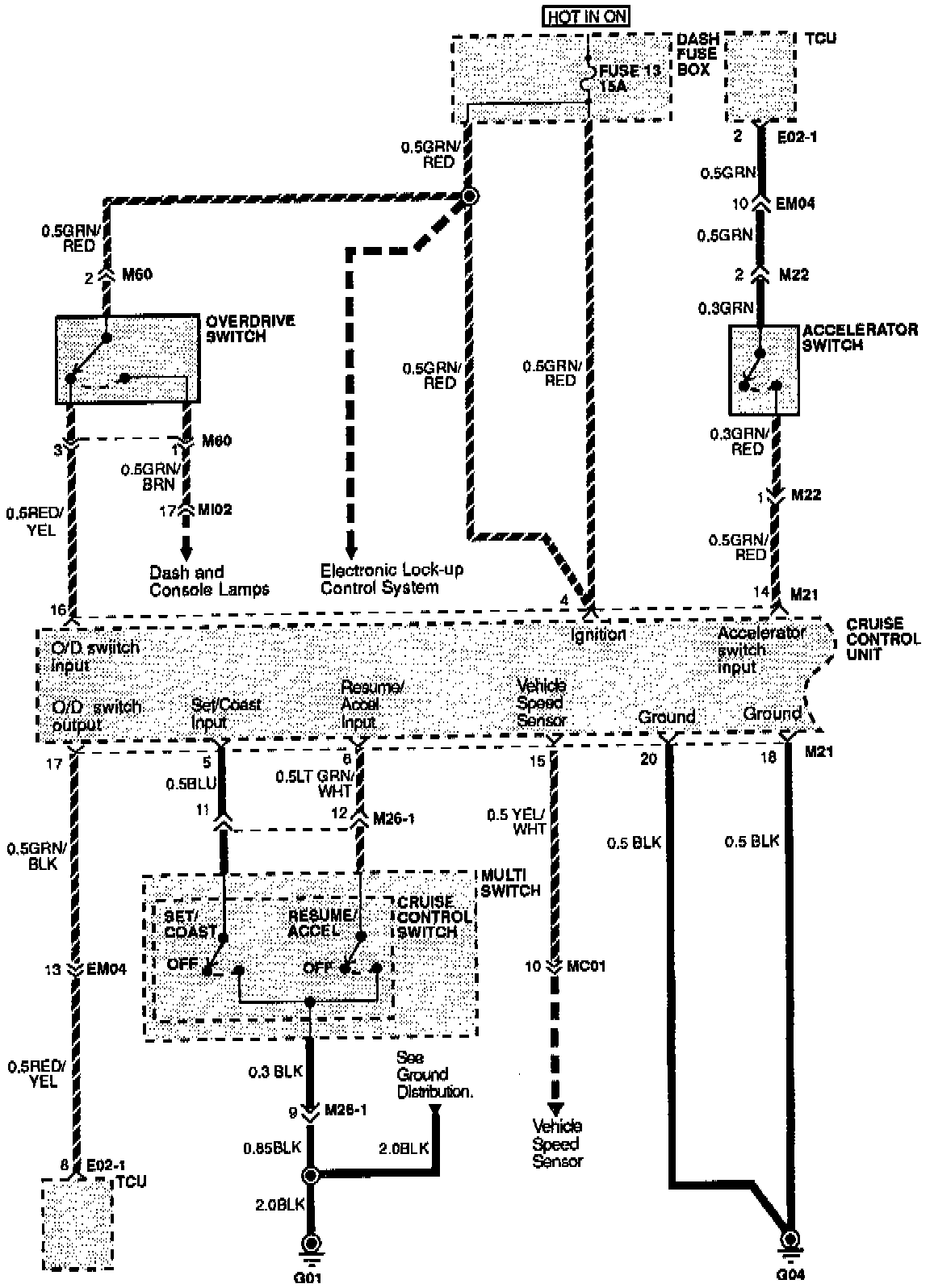

Cruise Control

Automatic Speed Control System:



Automatic Speed Control System:



Automatic Speed Control System:



Automatic Speed Control System:
