Home >> Hyundai >> 1993 >> Elantra L4-1595cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp

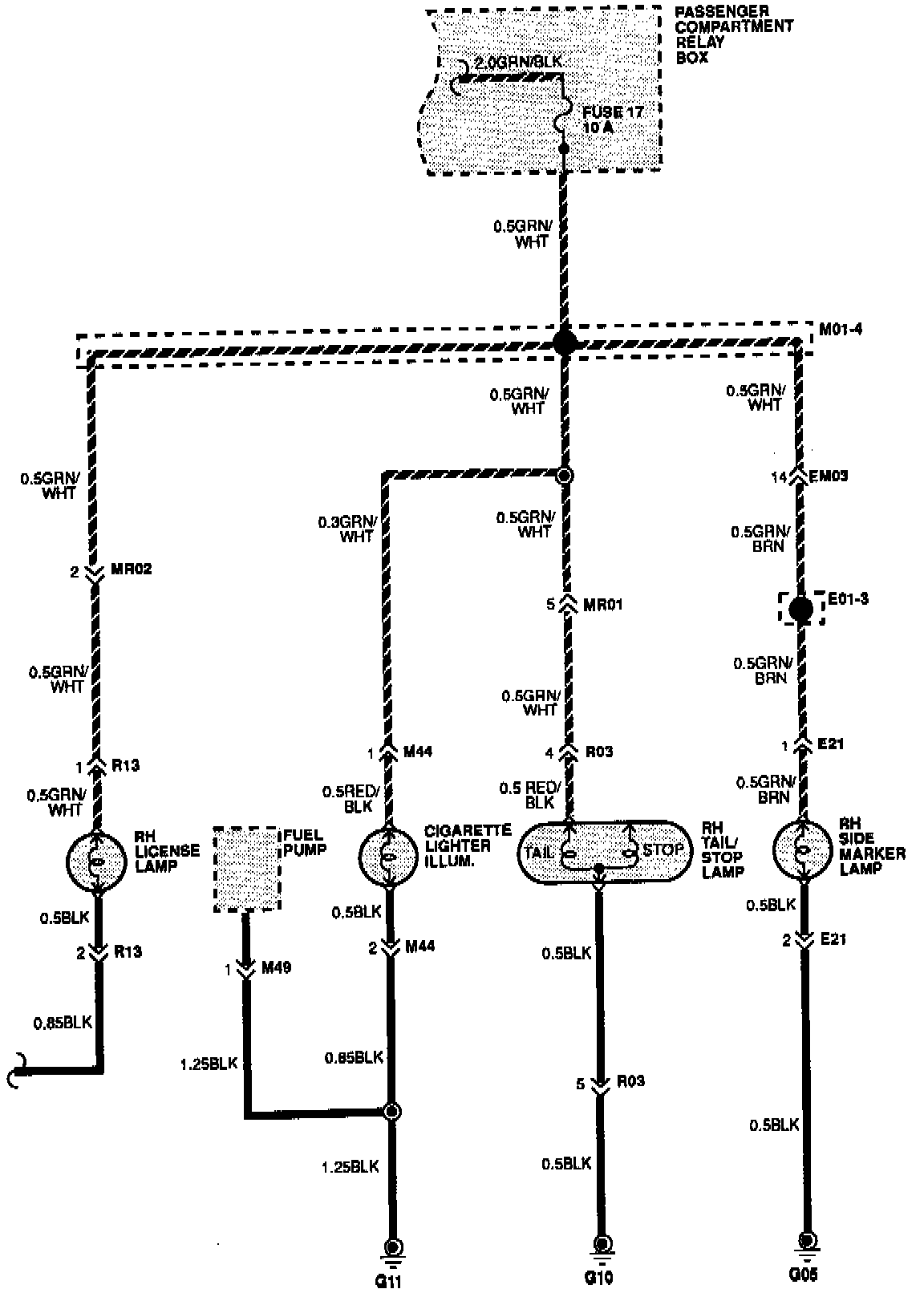

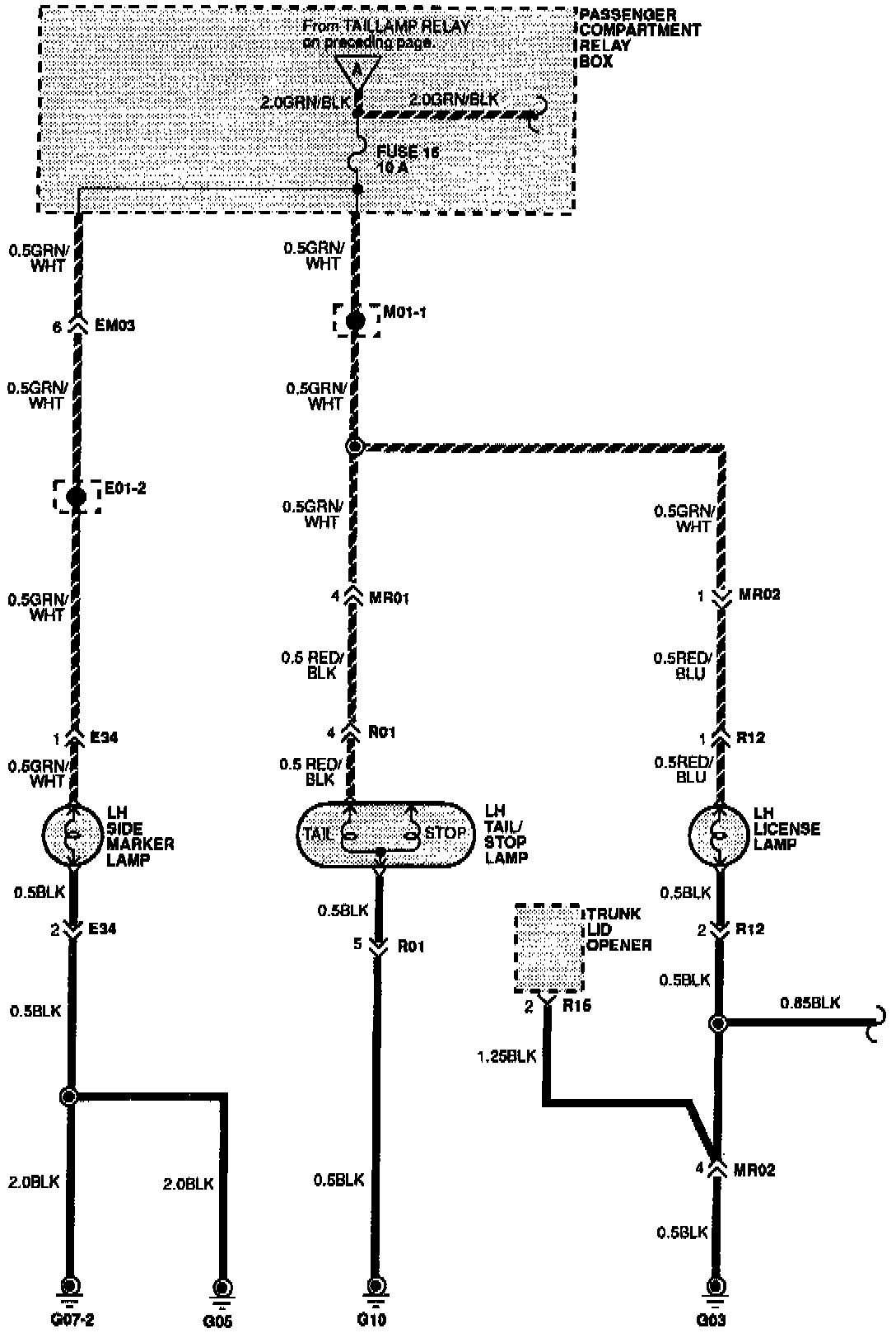

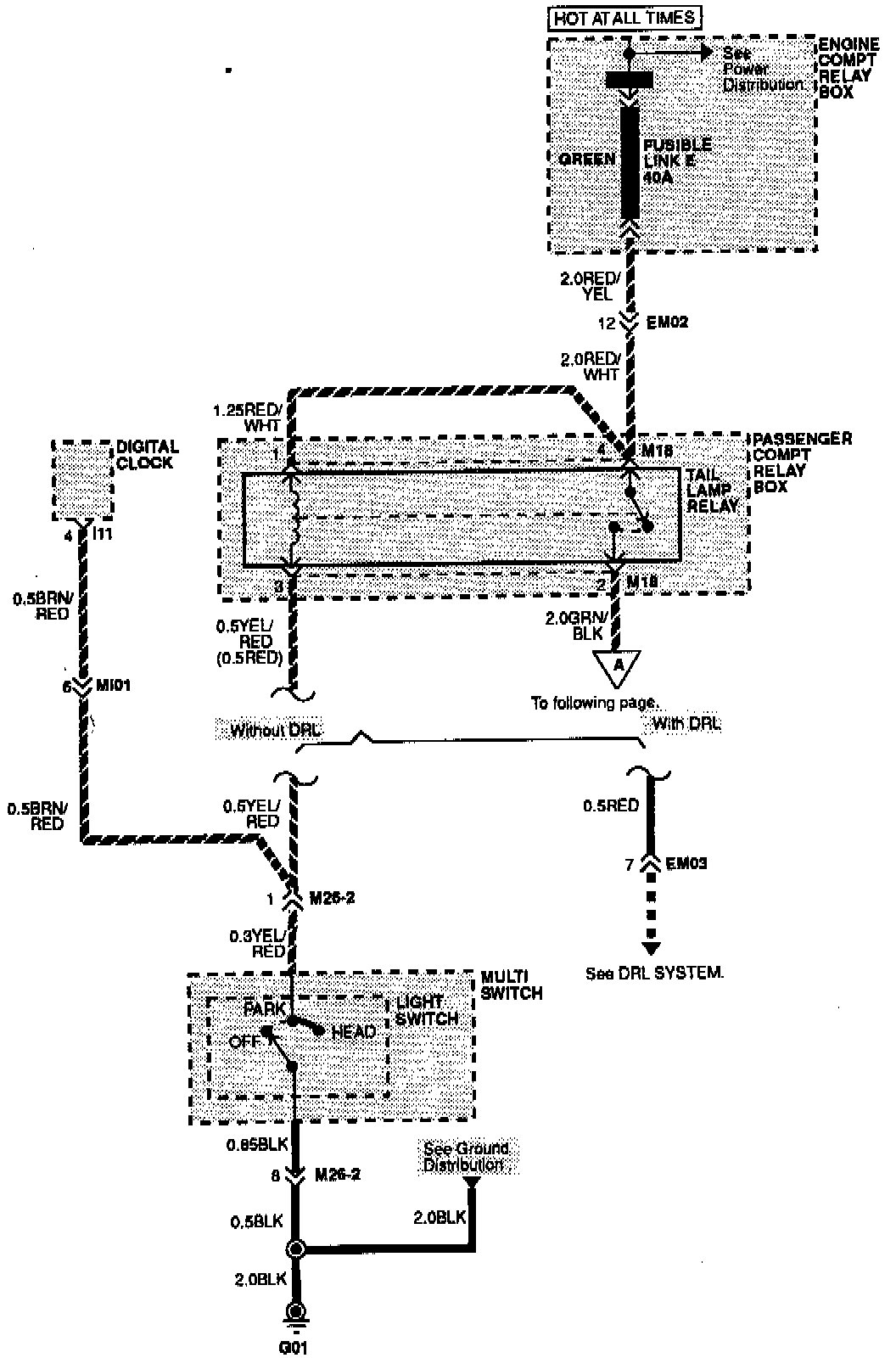

Tail Lamp

Exterior Lamps:



Exterior Lamps:



Exterior Lamps:
