Elantra L4-1595cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Control Harness
Control Harness

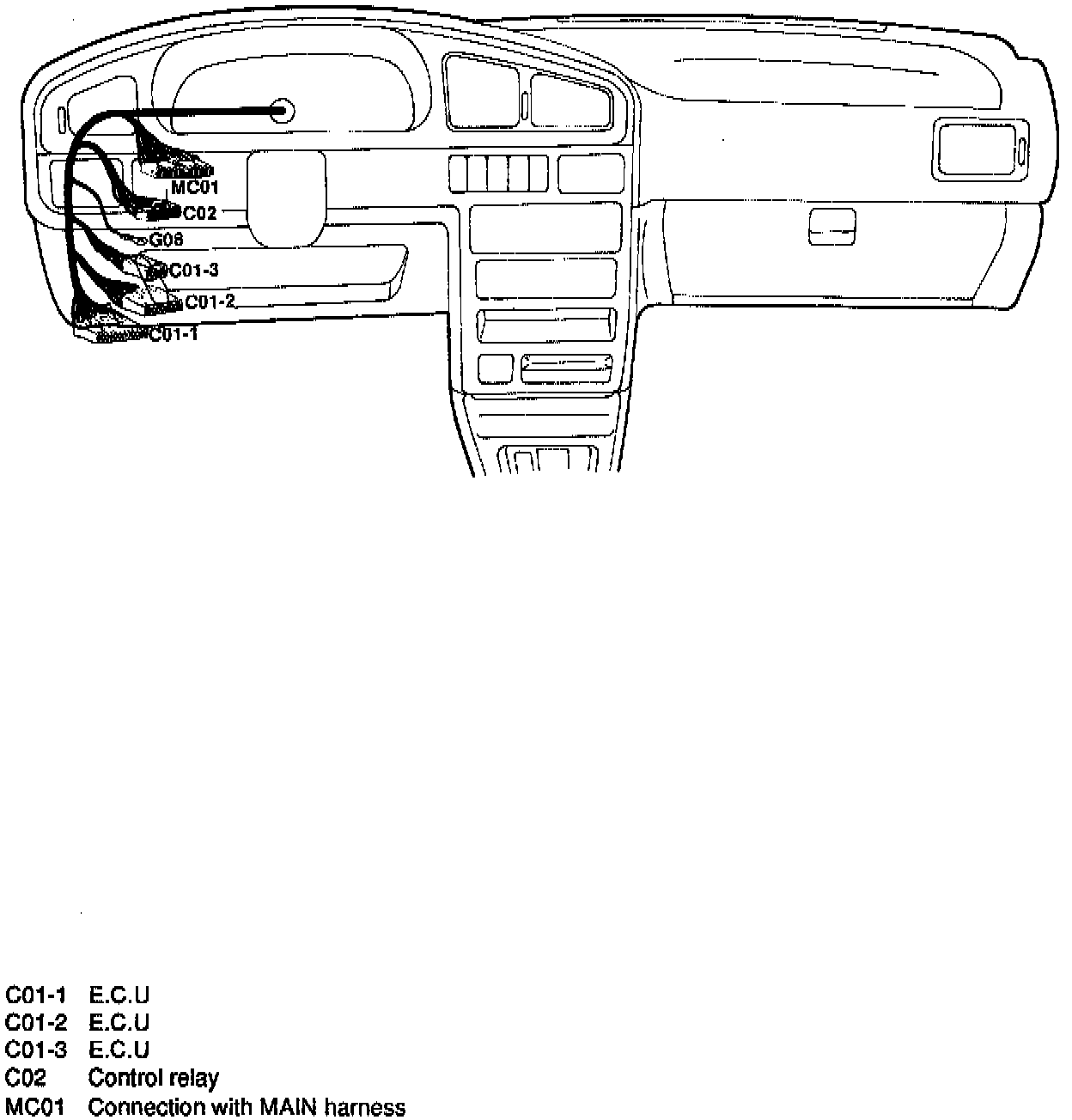

Harness Layout: Control Harness:

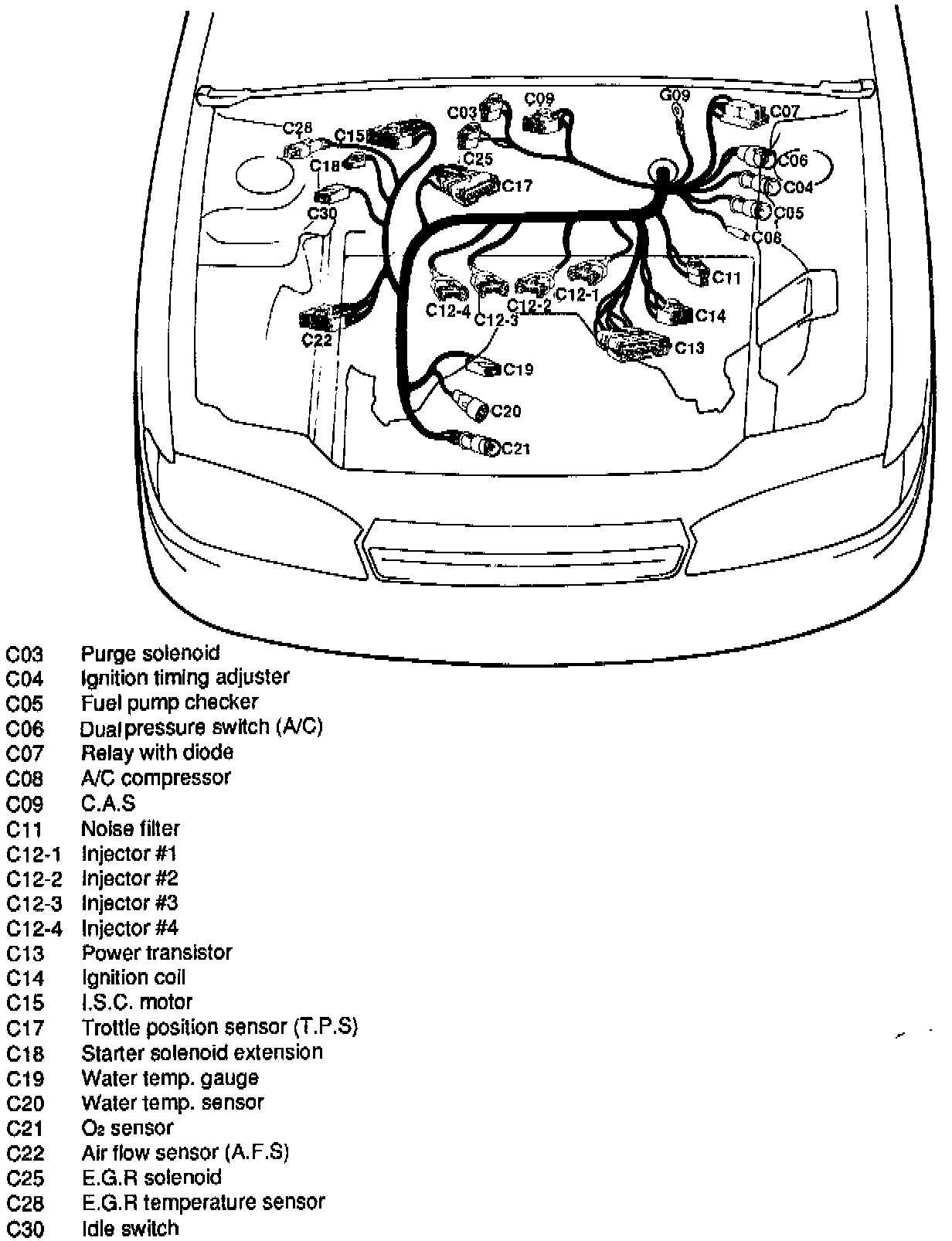

Harness Layout: Control Harness:
