Electrical Diagrams

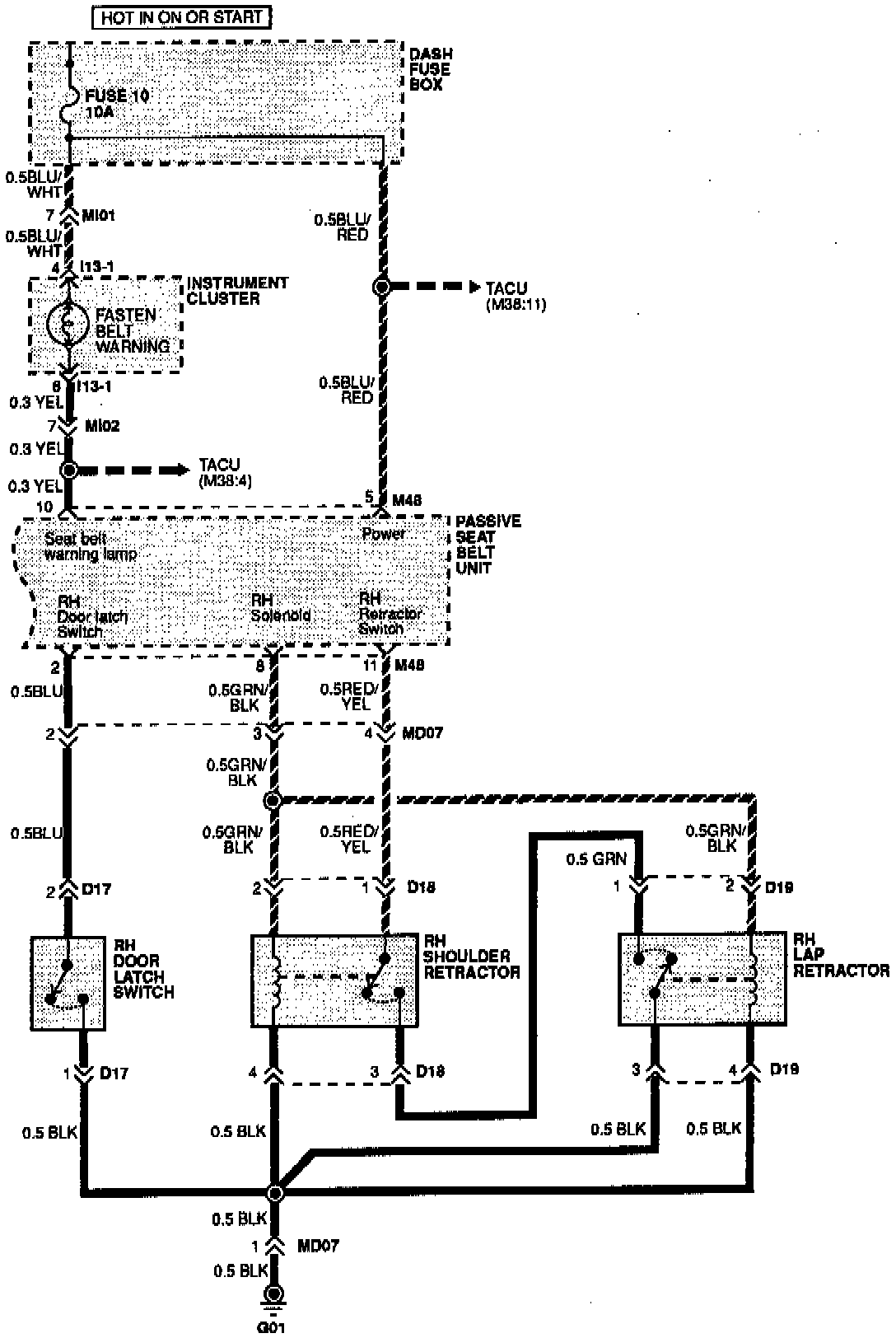

Passive Seat Belts:

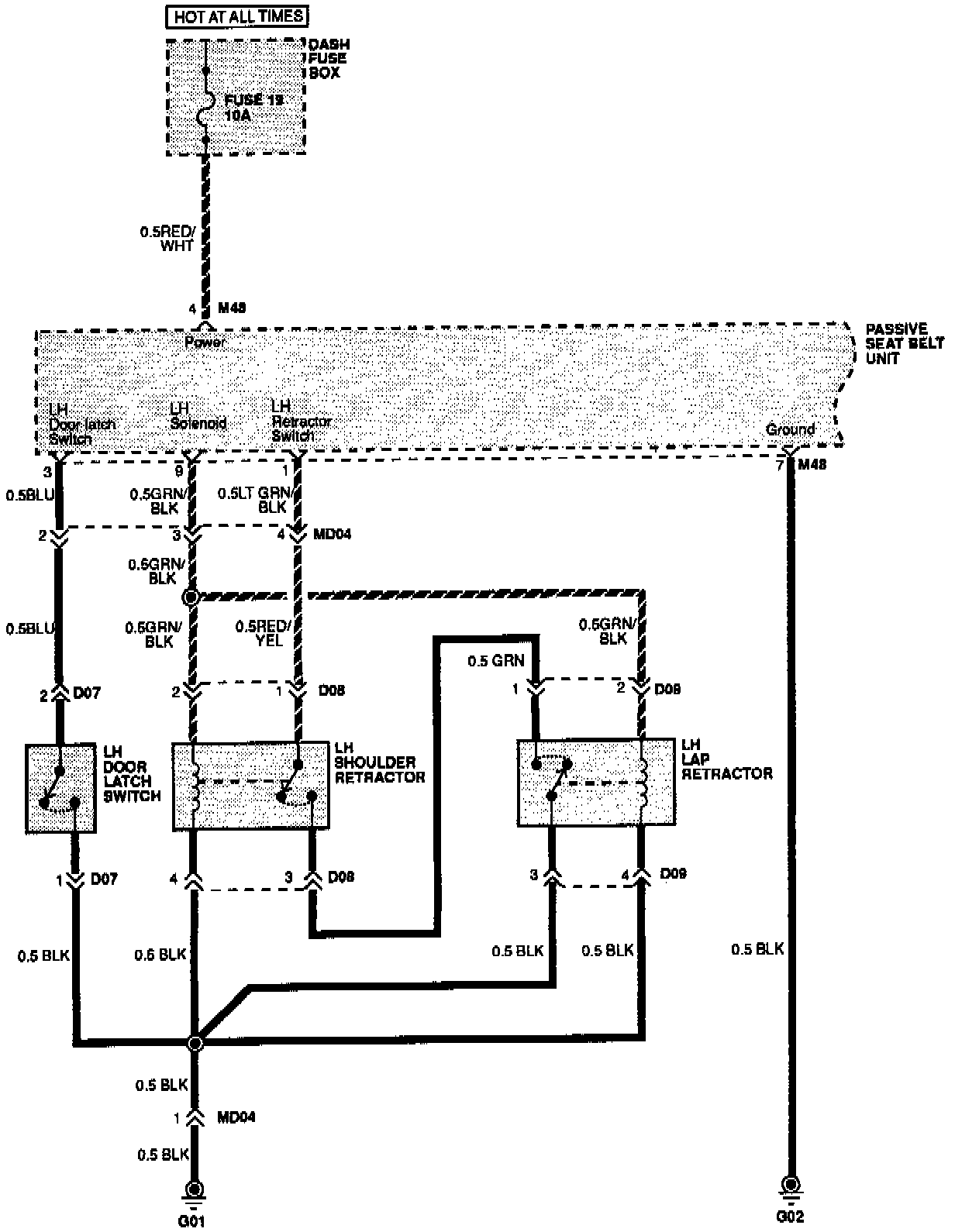

Passive Seat Belts:





Time Alarm Control Unit (T.A.C.U.):




Time Alarm Control Unit (T.A.C.U.):




Time Alarm Control Unit (T.A.C.U.):






Connector Configurations Are Found In The Diagram Section Of The Vehicle.

Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.

Locations
