Home
>>
Hyundai
>>
1993
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
T/A Control Harness
T/A Control Harness

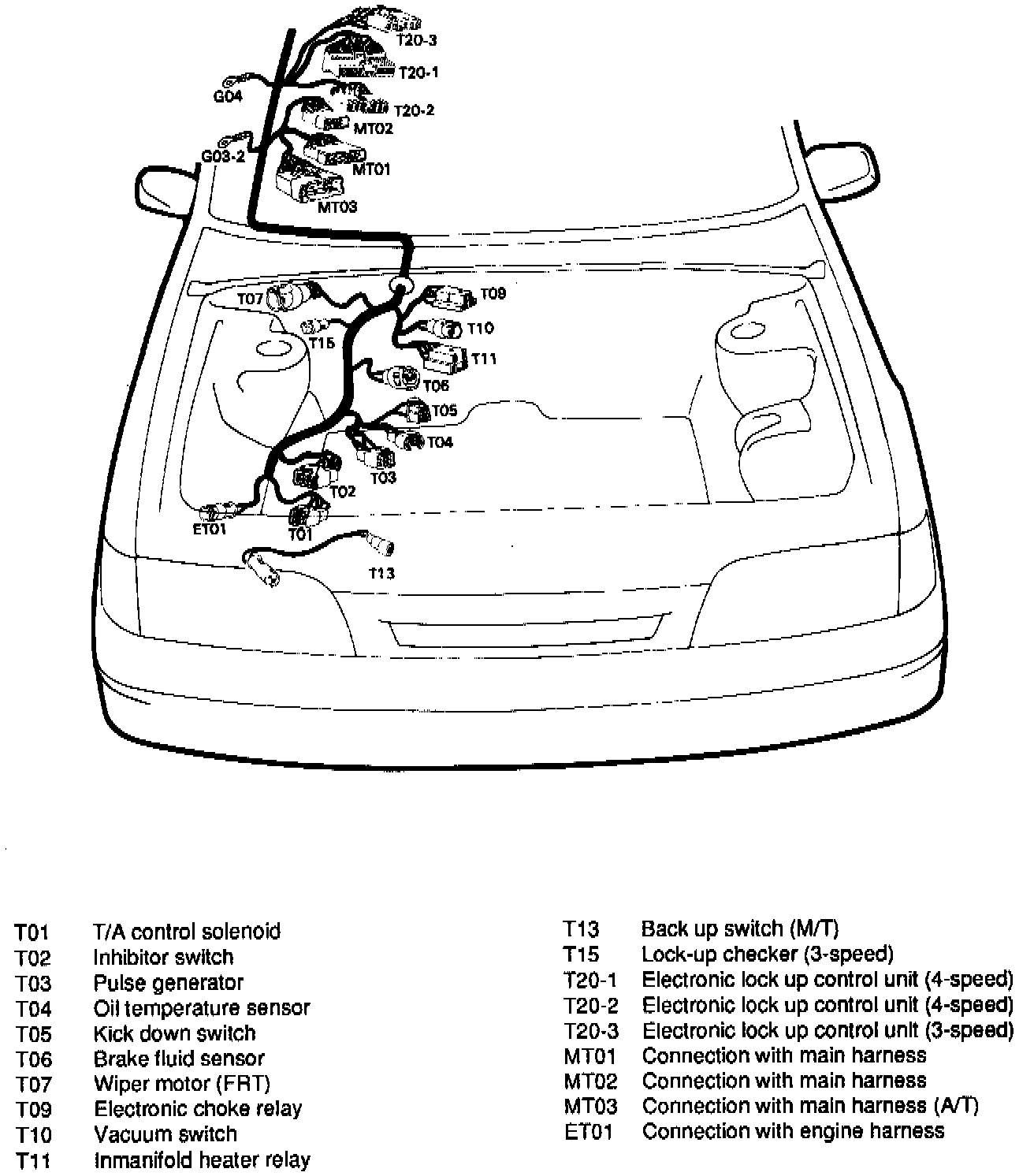

Harness Layout: T/A Control Unit Wiring Harness:
