Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1993
>>
Scoupe L4-1468cc 1.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
MC01 - MR02
MC01 - MR02

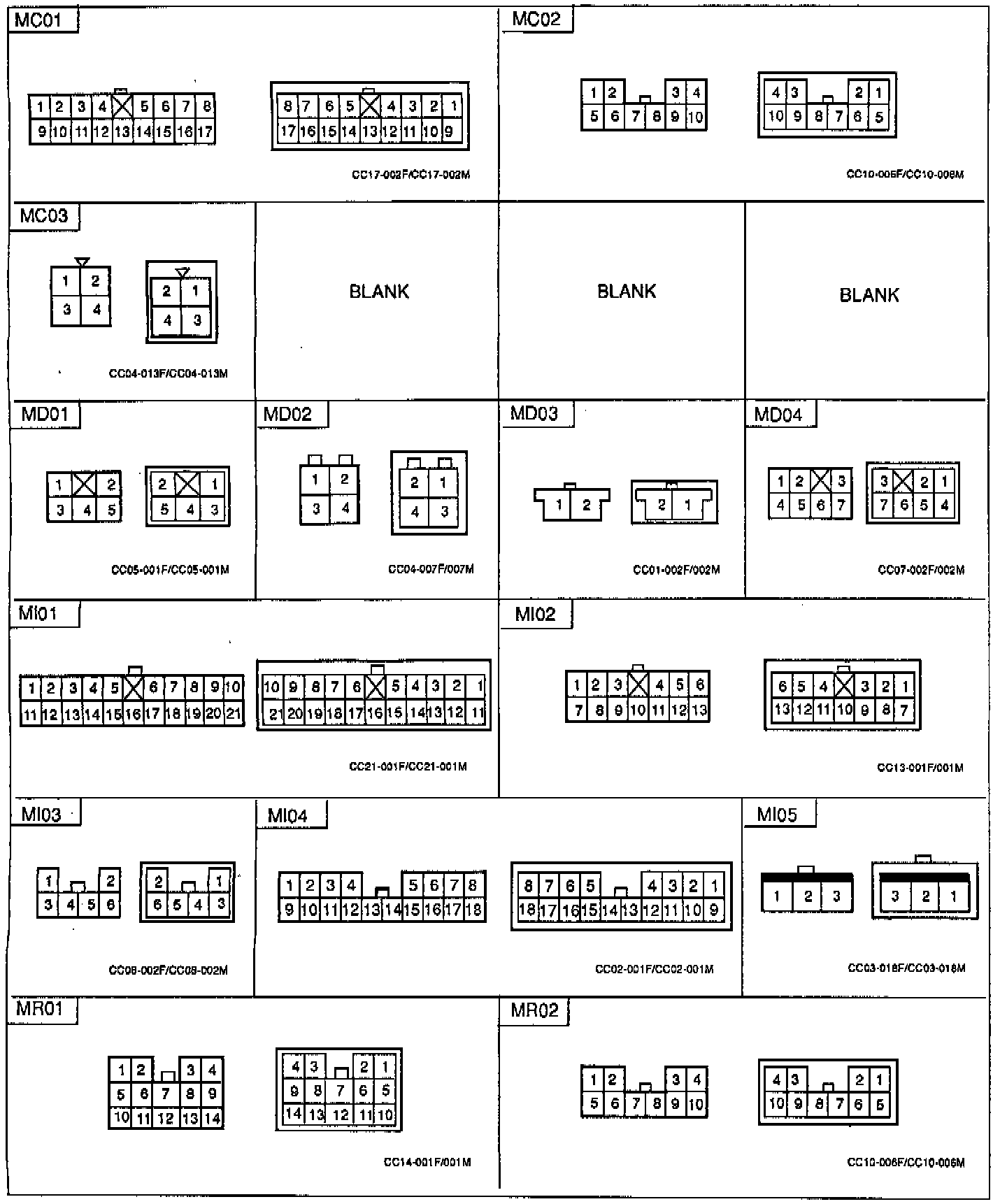

Connector Identification: MC01 Thru MR02:
