System Diagram

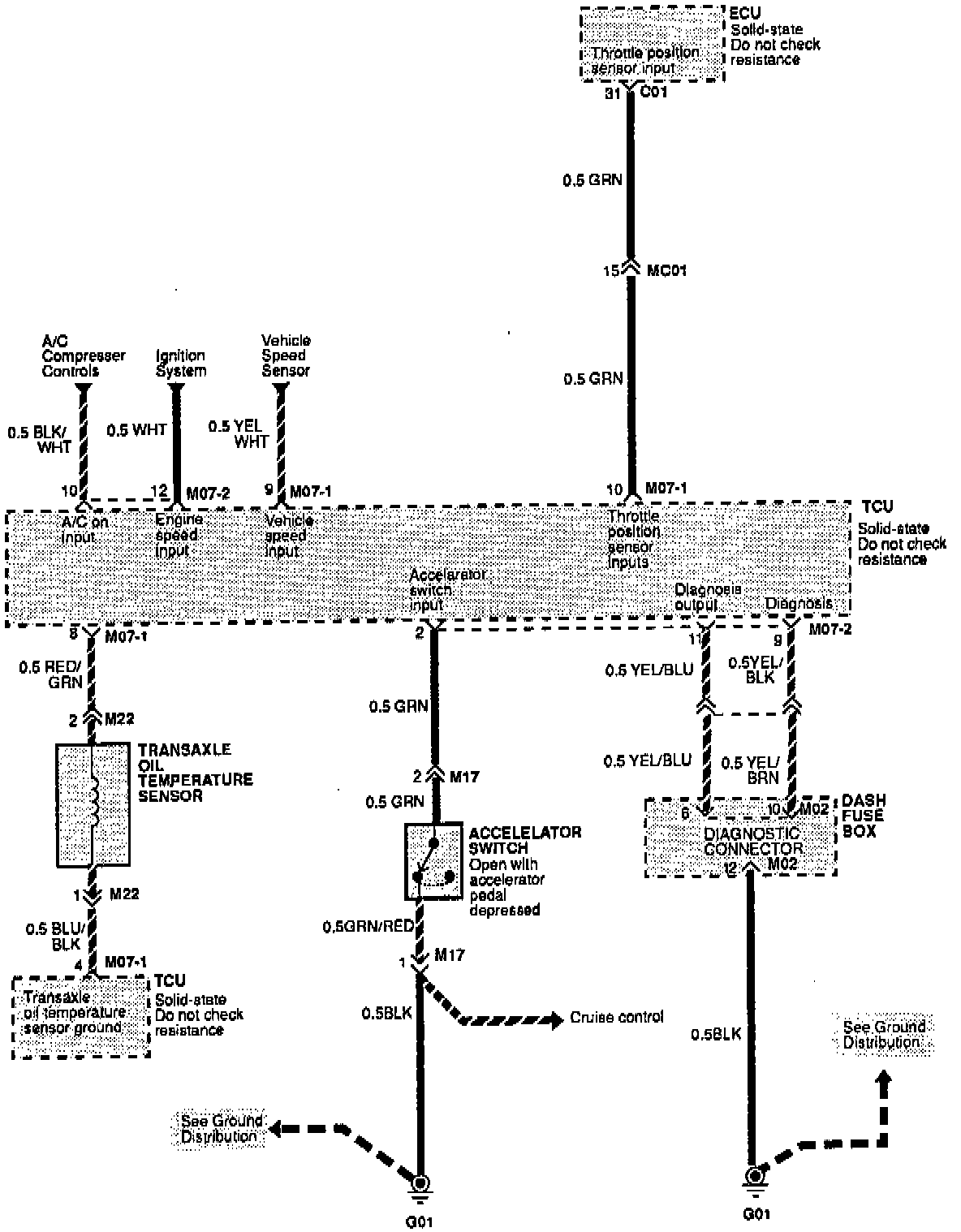

Electronic Lock Up Controls:

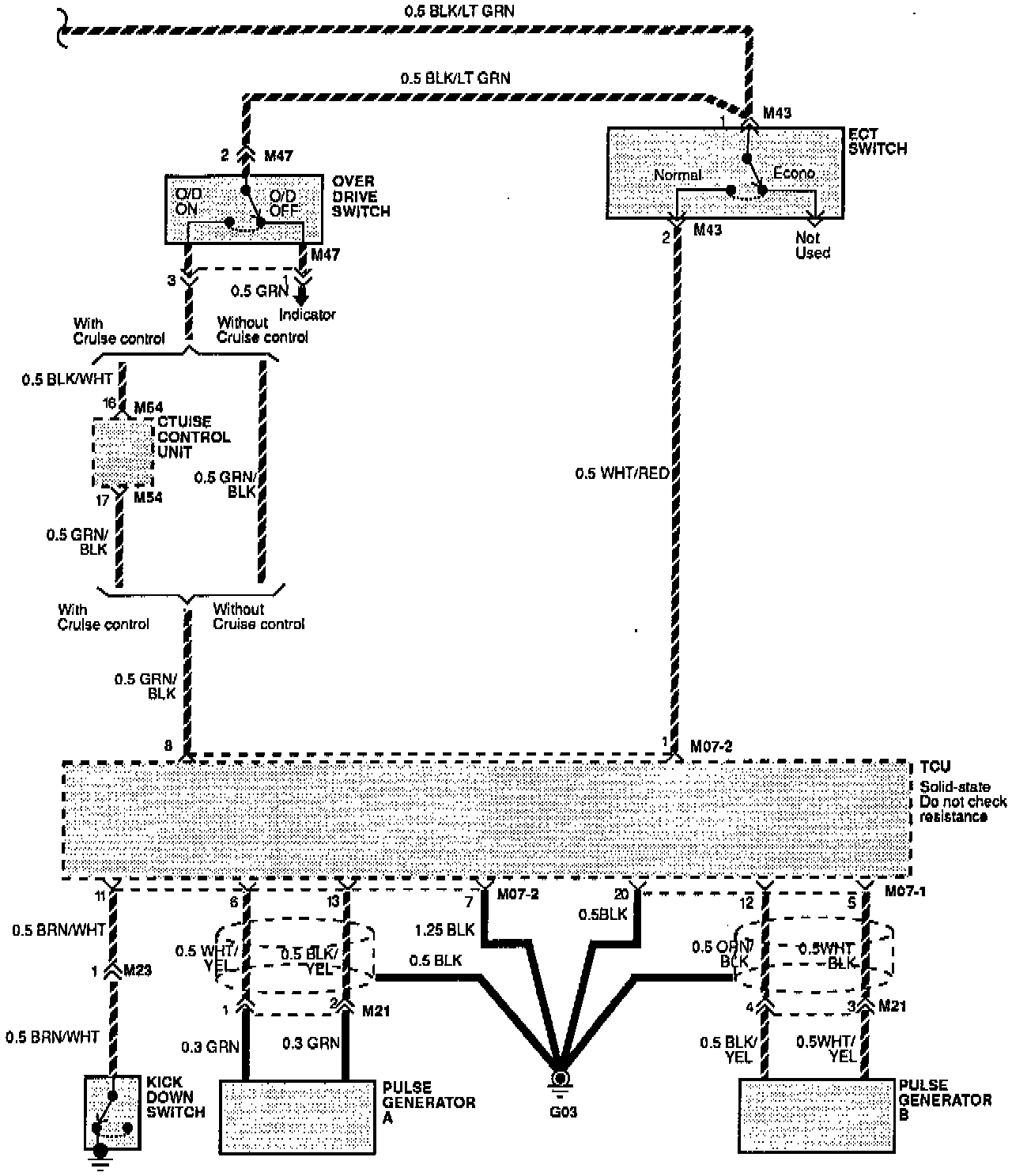

Electronic Lock Up Controls:

Electronic Lock Up Controls:
