Audible Warning Device Control Module

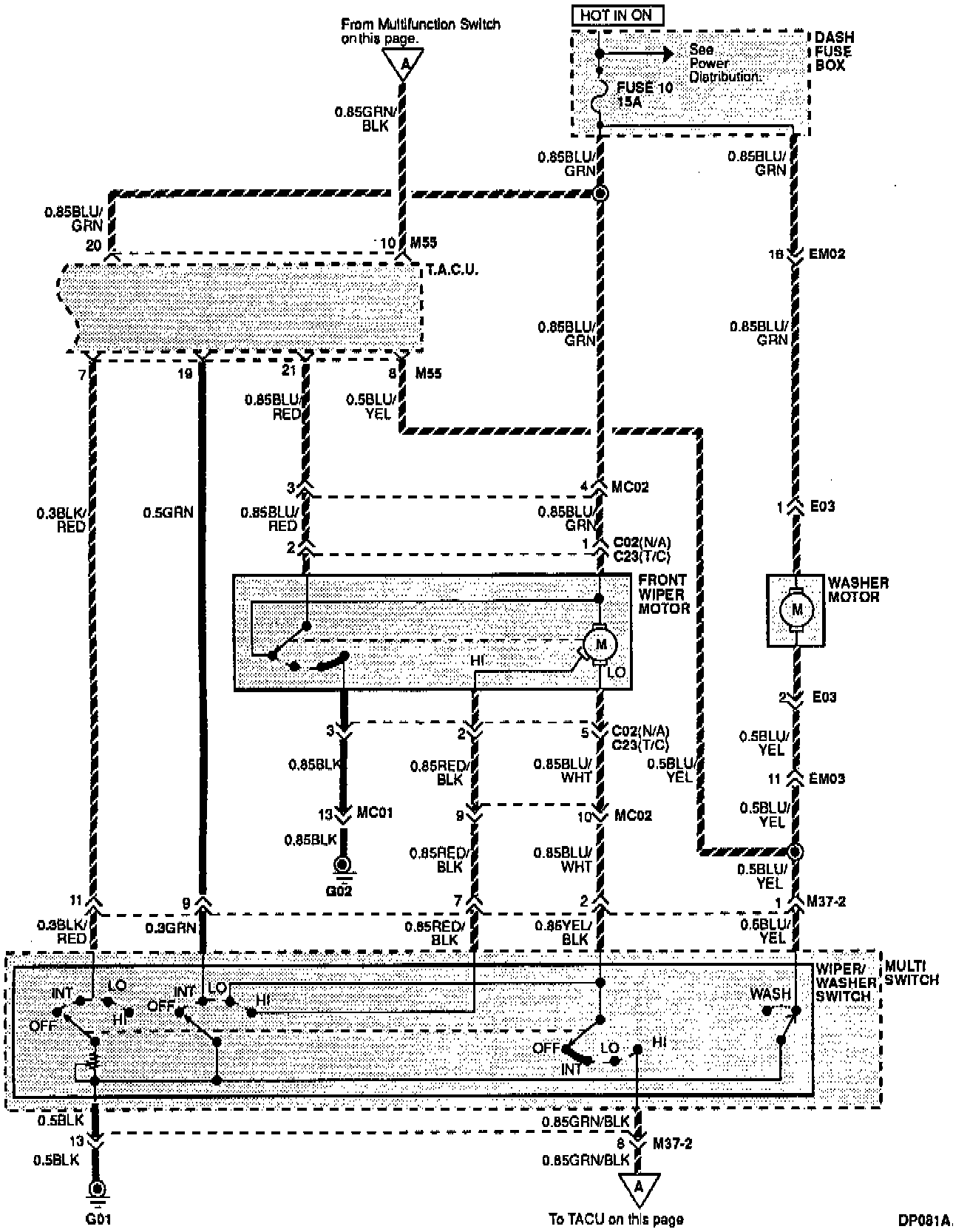

Time And Control Unit:

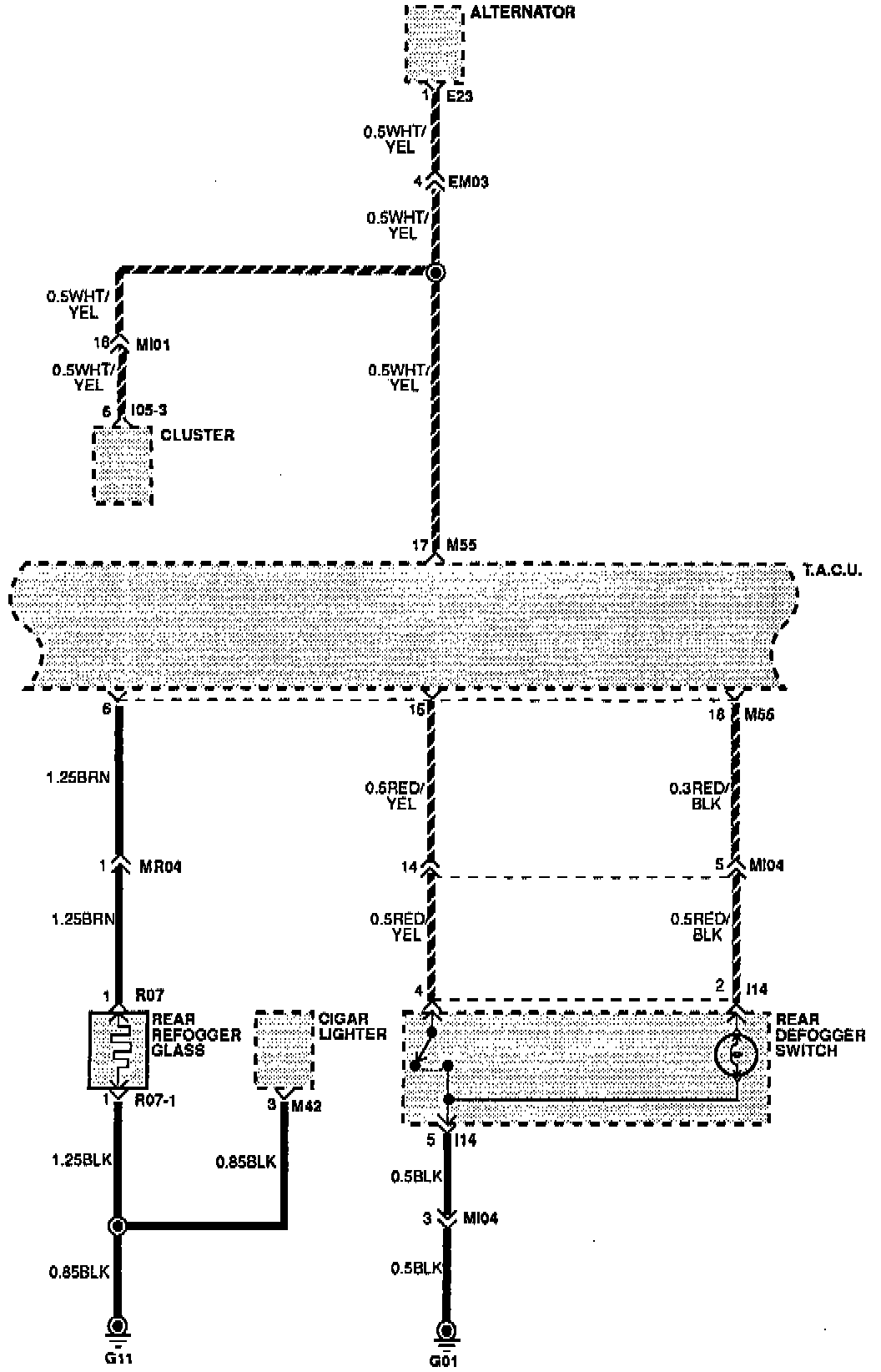

Time And Control Unit:

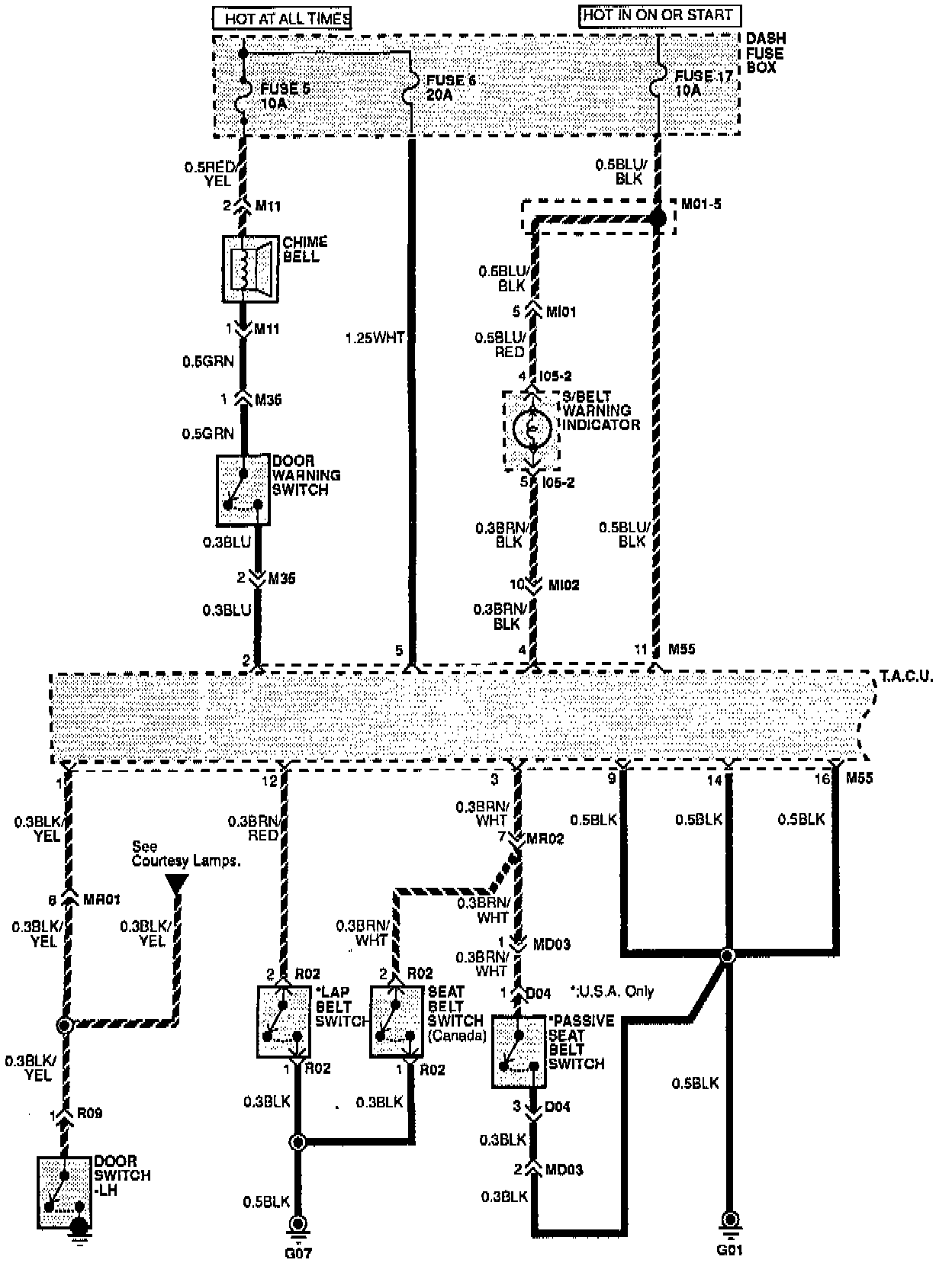

Time And Control Unit:
