Home
>>
Hyundai
>>
1993
>>
Scoupe L4-1468cc 1.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>

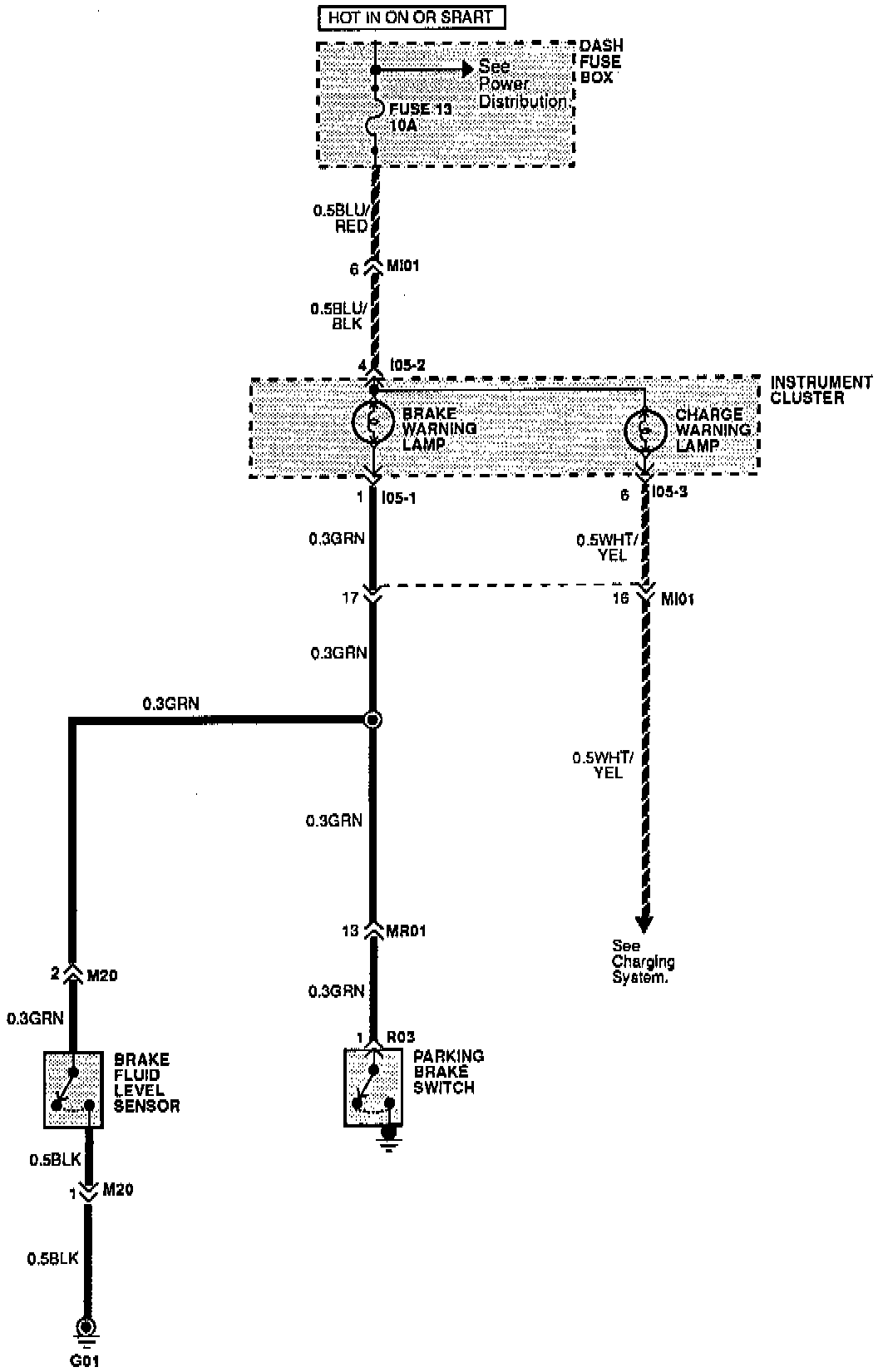

Charge Lamp/Indicator
Charge Lamp/Indicator
Brake Warning:
