Electrical Diagrams

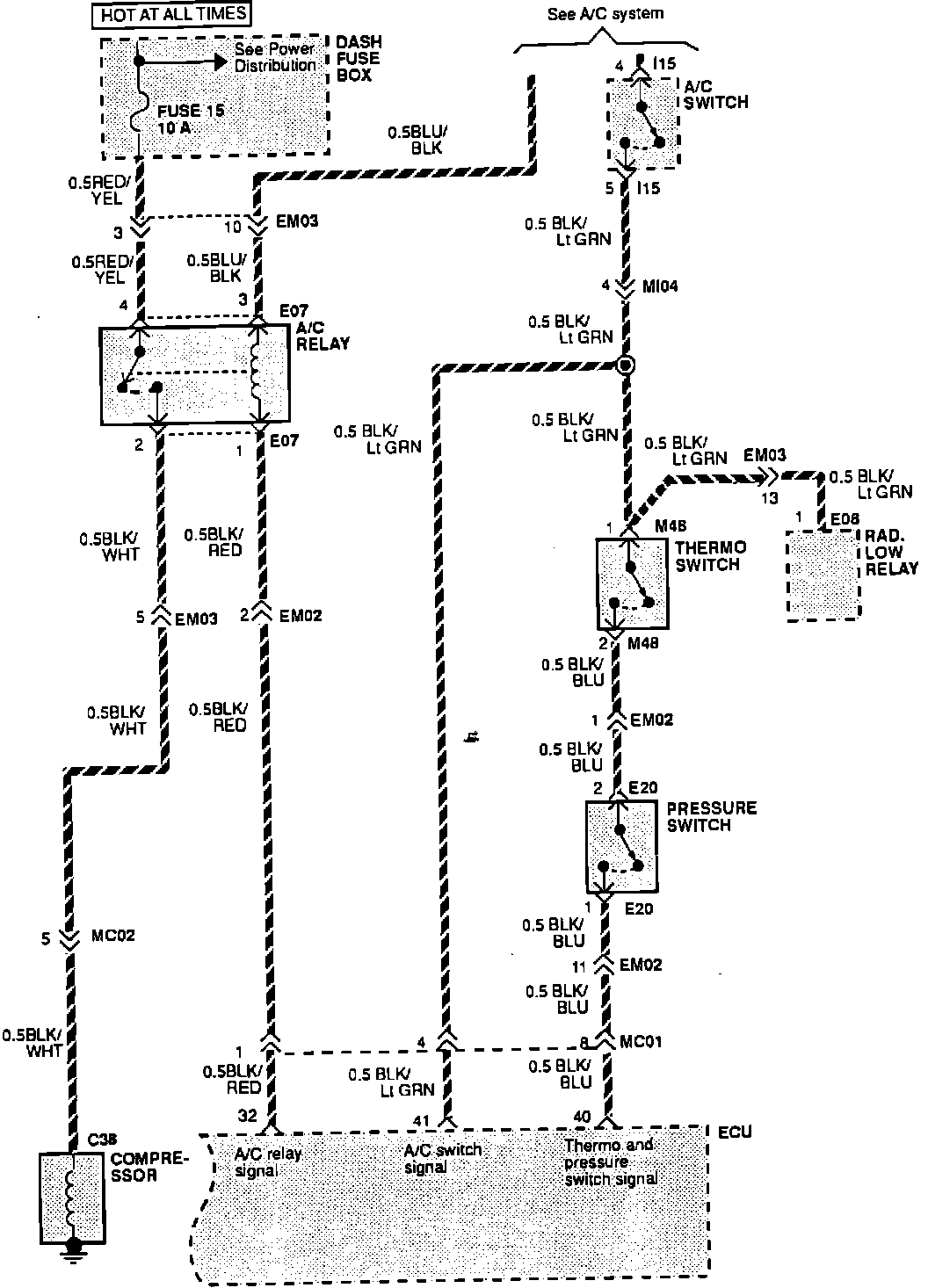

MPI Schematic Diagram T/C (1 Of 5):
1 of 5

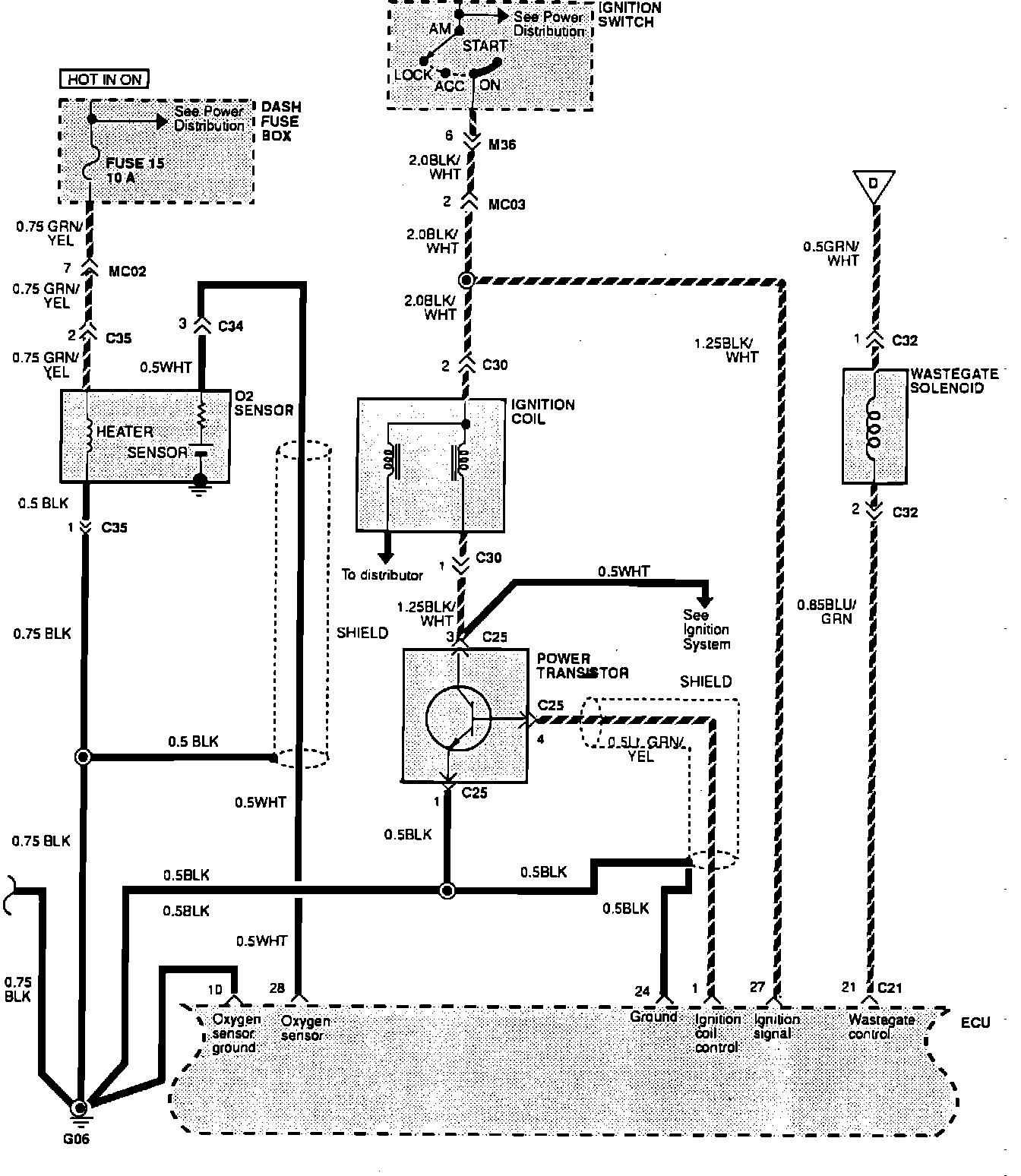

MPI Schematic Diagram T/C (2 Of 5):
2 of 5

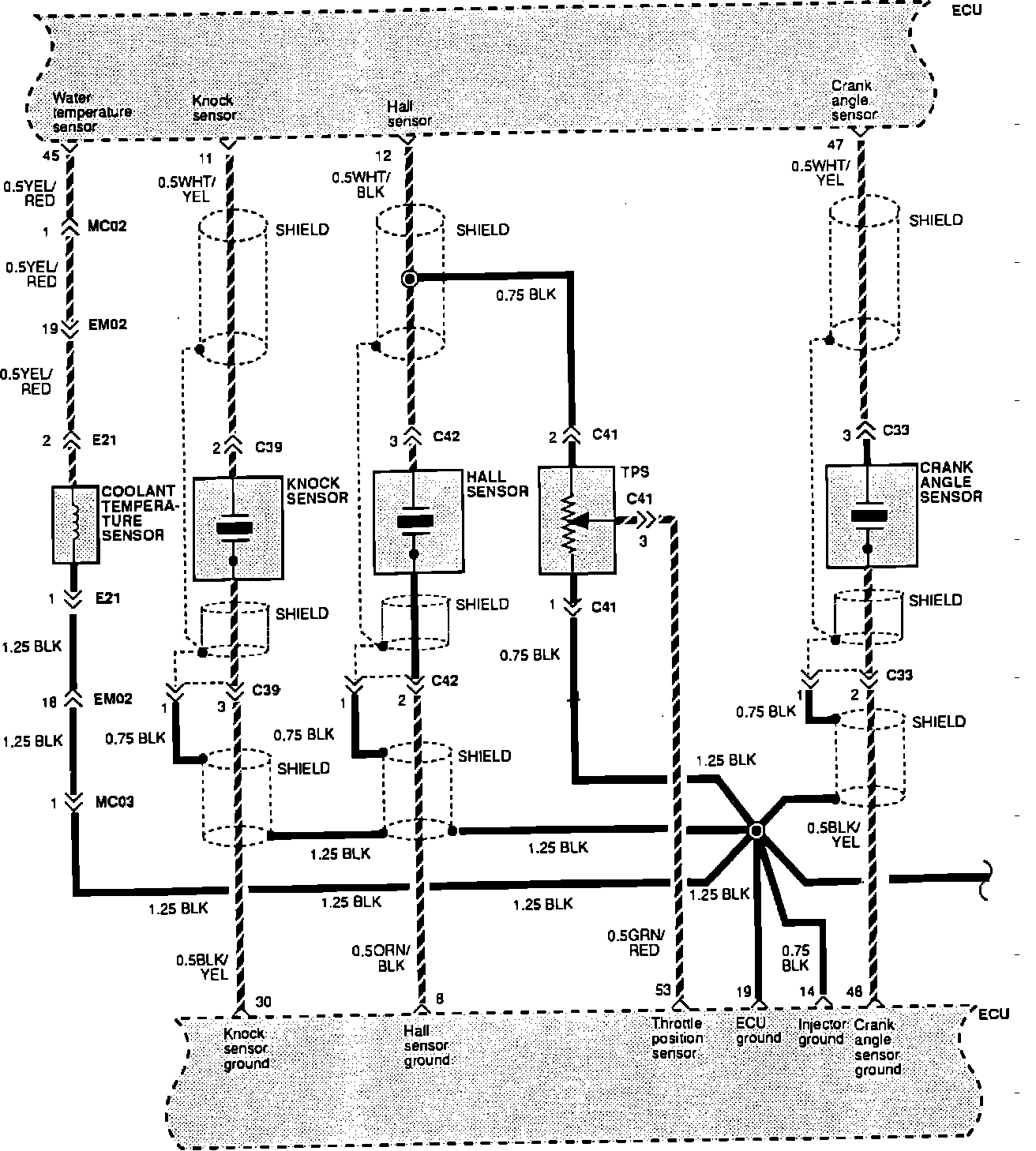

MPI Schematic Diagram T/C (3 Of 5):
3 of 5
MPI Schematic Diagram T/C (4 Of 5):
4 of 5
MPI Schematic Diagram T/C (5 Of 5):
5 of 5
1 of 5
2 of 5
3 of 5
4 of 5
5 of 5
