Fuel Filter: Service and Repair

1. Reduce the internal pressure of the fuel pipes and hoses by completing the following operations.
- Disconnect the fuel pump harness connector at the rear of the fuel tank.
- Start the engine and after it stalls, turn the ignition switch to OFF.
- Disconnect the battery negative (-) terminal.
- Connect the fuel pump harness connector.

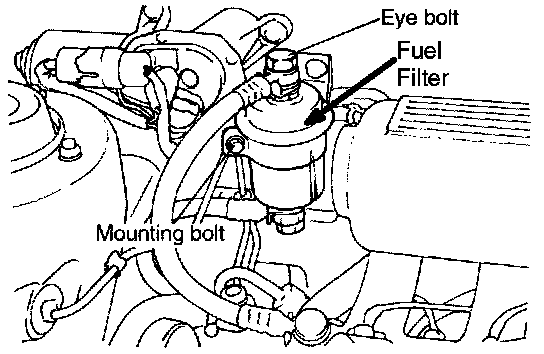

2. Remove the eye bolts while holding the fuel filter nuts securely.

CAUTION: Cover with a shop towel to avoid gasoline from splashing

3. Remove the fuel filter mounting bolts, then remove the fuel filter from the fuel filter clamp.
4. After replacing the fuel filter, check for fuel leaks.
