Home >> Hyundai >> 1993 >> Scoupe L4-1468cc 1.5L SOHC Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Joint Distribution >> M01-1

M01-1

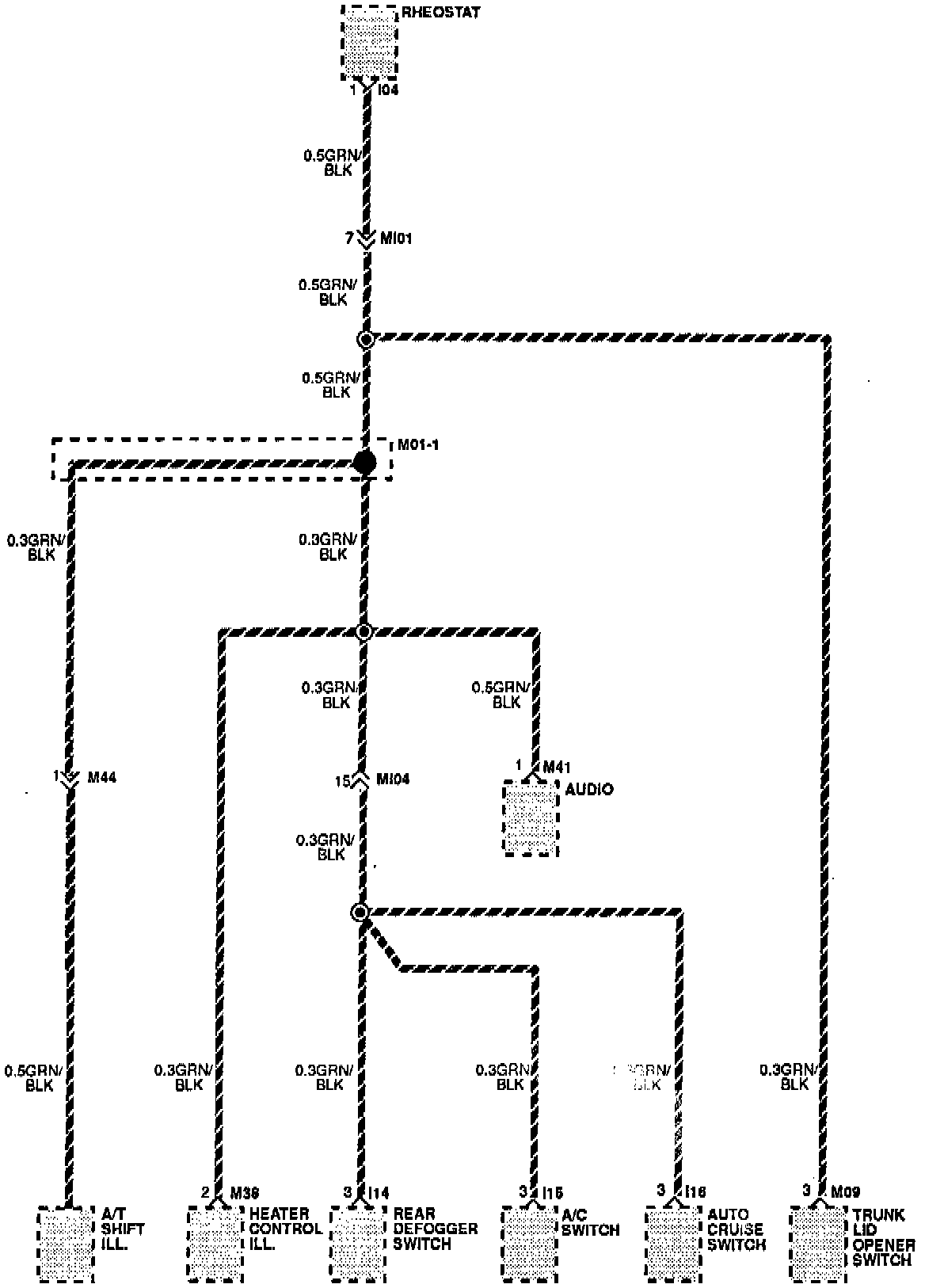

Joint Distribution: M01-1:
