Kickdown Servo Adjustment

1. Completely remove all dirt and other contaminating materials adhered around the kickdown adjust screw.

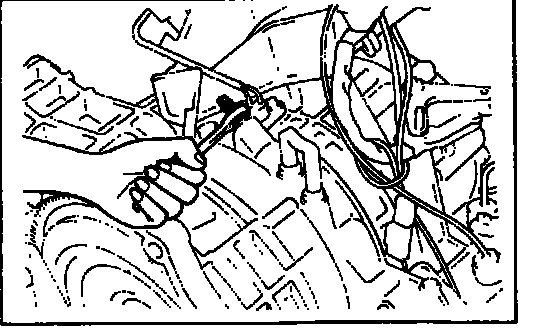

2. Loosen the lock nut.
3. Loosen and tighten the adjust screw two times by torque of 5 Nm (3.6 lb.ft).
4. Again loosen the adjust screw 3 to 3-1/3 turns.
5. Tighten the lock nut to the specitied torque.

Lock nut: 15-25 Nm (150-250 kg.cm, 11-18 lb.ft)

NOTE: Before assembly, apply sealant (DC780) to center portion of tile adjust screw.
