Home >> Hyundai >> 1993 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks

Door Locks

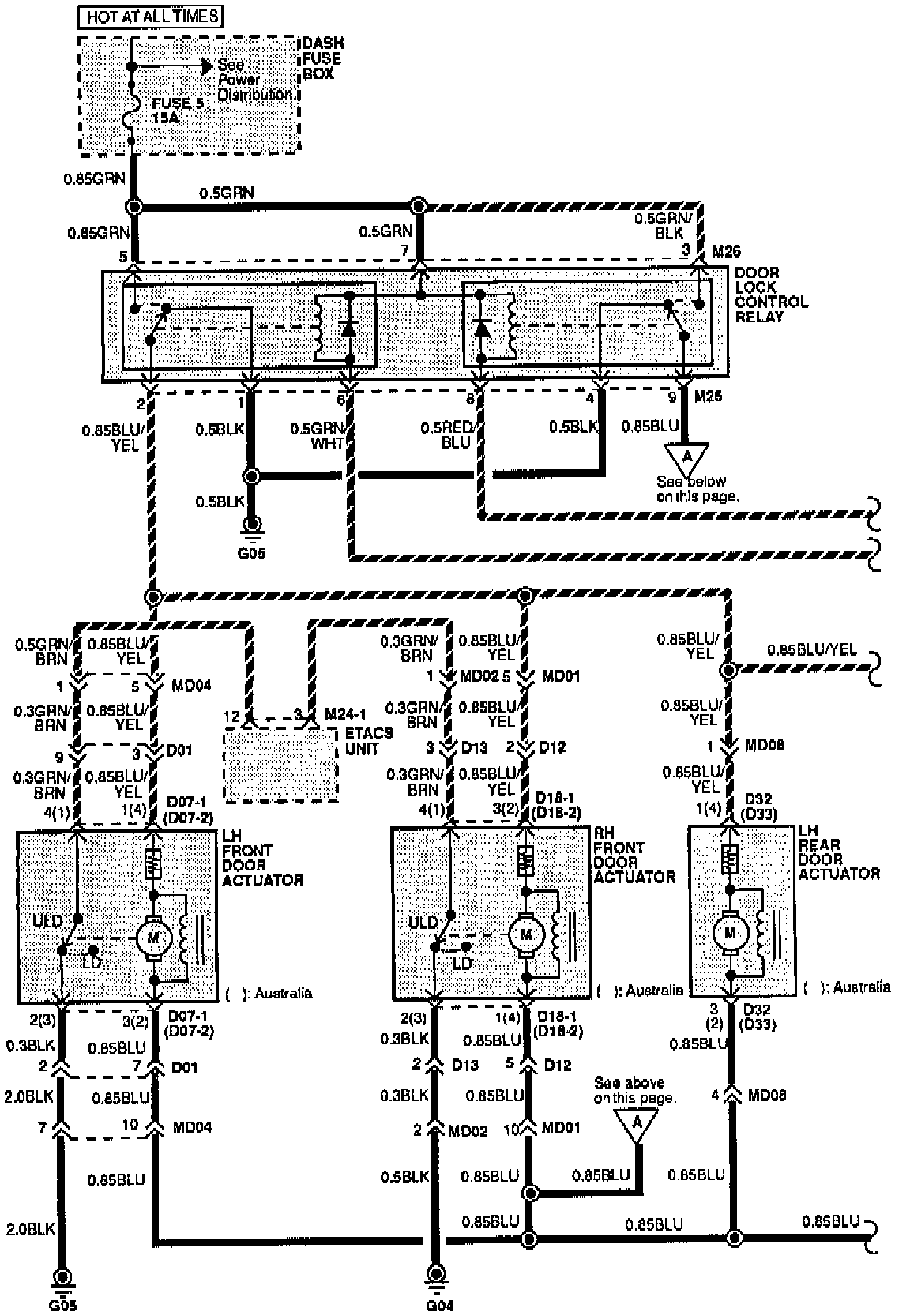

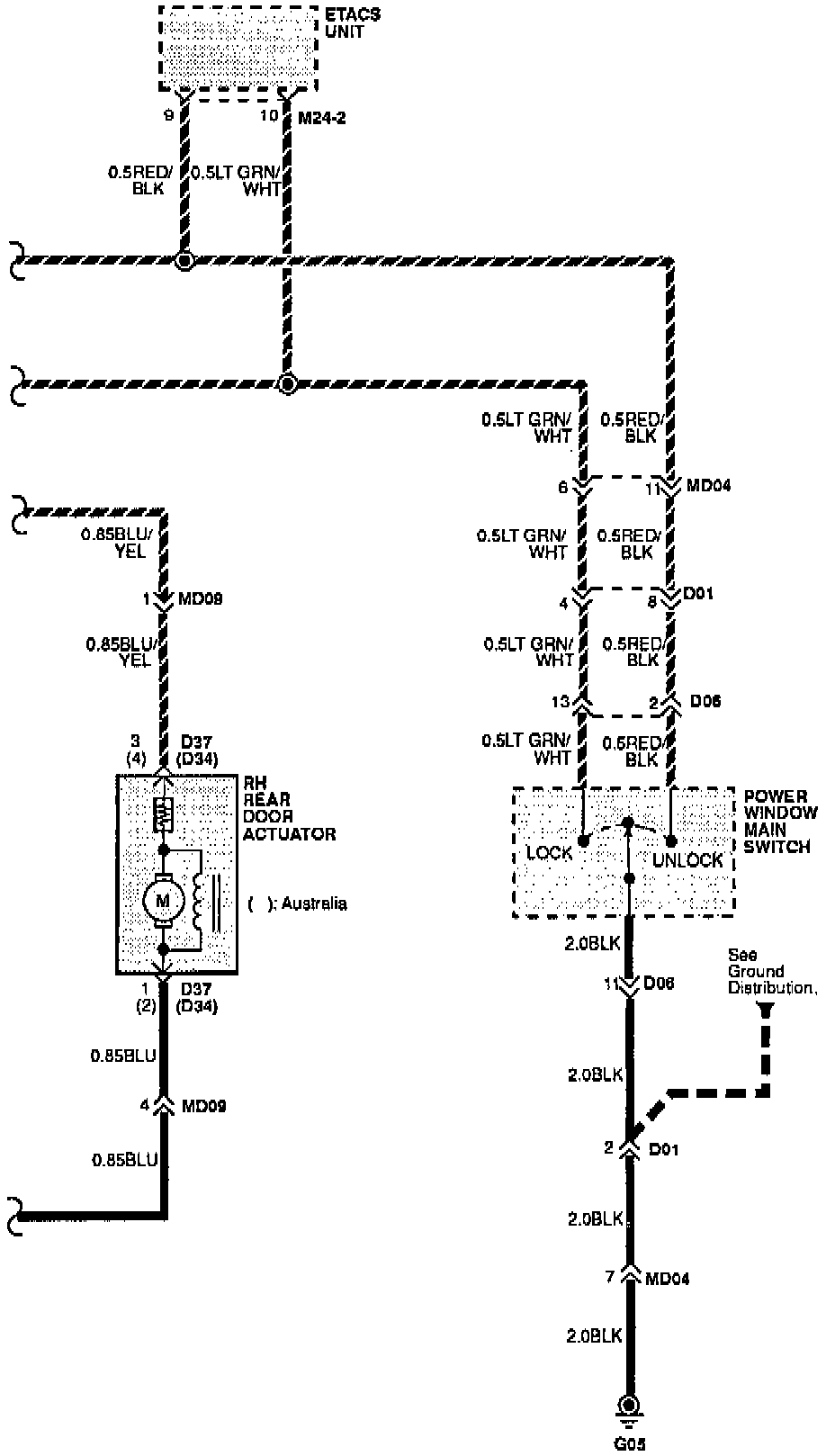

Power Door Locks:



Power Door Locks:
