Engine System ID







The engine identification plate is stamped at the right front side on the top edge of the cylinder block.

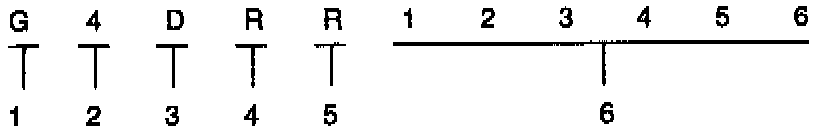

The engine identification number consists of 10 digits.

1. Engine fuel:
G - Gasoline

2. Engine range:
4 - In line 4 cycle 4 cylinder

3. Engine development order:
A-Z

4. Engine displacement:
R - 1596cc, M - 1836cc

5. Product year:
P - 1993, R - 1994, S - 1995

6. Serial number:
000001 through 999999
