A/C Evaporator - Temperature Switch Modification

Group: CLIMATE CONTROL

Number: 94-97-003

Date: SEPTEMBER, 1994

Model: 1994 ELANTRA, 1994 SCOUPE

Subject:
CHANGE IN EVAPORATOR TEMPERATURE SWITCH

DESCRIPTION:

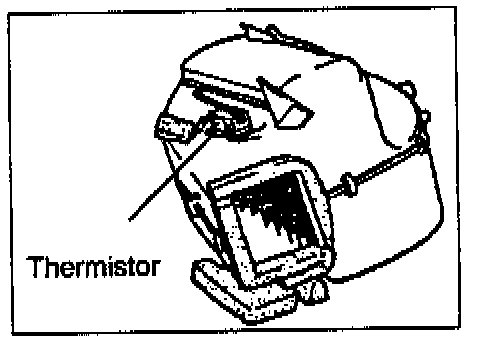

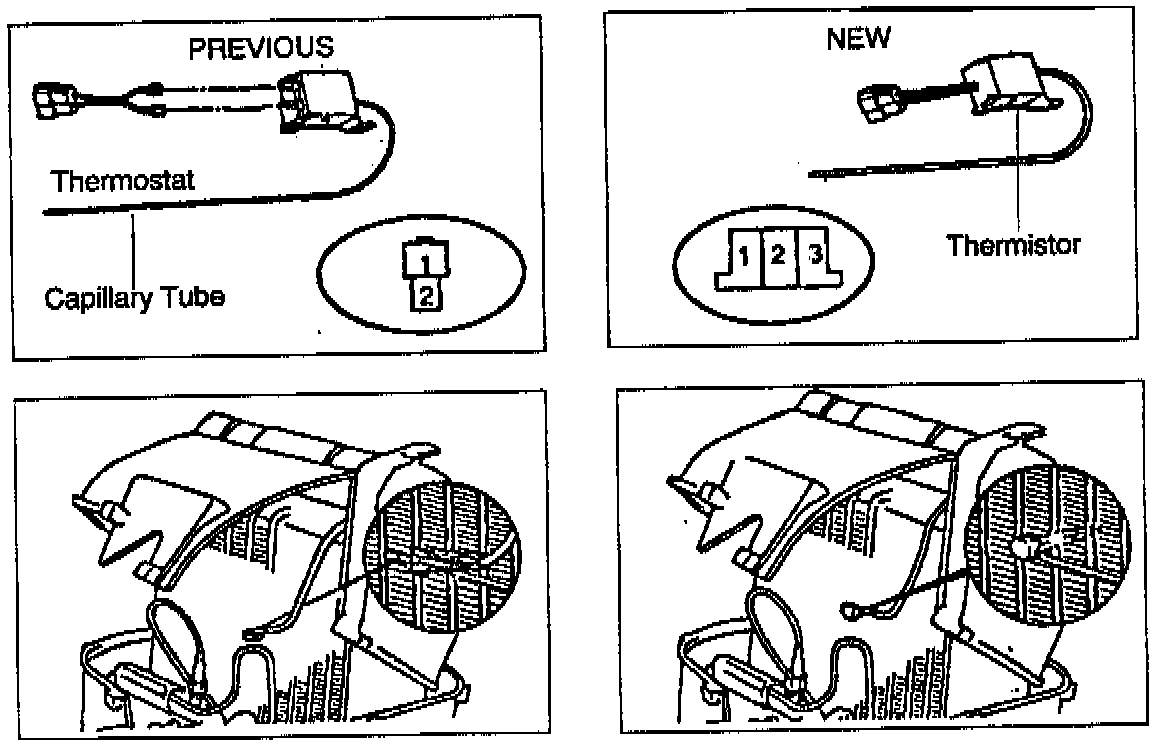

The evaporator temperature switch has been changed from a thermostat type of switch to a thermistor switch. The connector to the switch has also been changed from a two pin connector to a three pin connector.

SPECIFICATIONS:

OPERATIONAL TEMPERATURES

A/C OFF 1.5 +/- 1°C (34.7 +/- 1.8°F)
A/C ON 4.3 +/- 1°C (39.7 +/- 1.8°F)

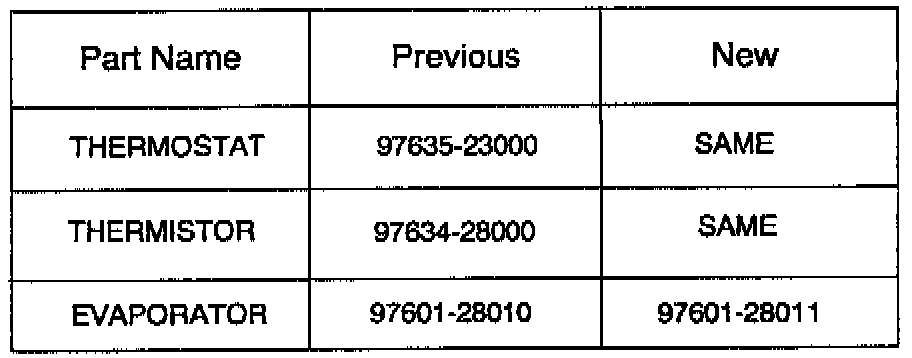

A/C EVAPORATOR TEMPERATURE SWITCH COMPONENT CHANGE:

DIAGNOSTIC PROCEDURES:

1) Run the engine.

2) Turn on the A/C switch








3) Check whether there is a change in voltage between pins 1 and 2 corresponding to the temperature changes of the evaporator.

NOTE:
This test should be carried out with the connector coupled.

4) If the condition is not satisfied, replace the thermistor.





PARTS INFORMATION

NOTE:
The 1994 A/C kit applications for the Elantra and Scoupe are as follows:

ELANTRA

Production Date A/C Kit P/N

07/01/93 - 10/10/93 97600 - 28BO0

10/11/93 - Current 97600 - 28B01

P/N 97600-28 BOO can be used in place of 97600-28B01 by using extension wire 00228-14100. P/N 97600-28B01 CANNOT be used in place of 97600-28 B00 (vehicles produced before 10/11/93).

SCOUPE

Production Date A/C kit P/N

07/01/93 - 10/31/93 97600 - 23B00

11/01/93 - Current 97600 - 23B01

P/N 97600-23B00 can be used in place of 97600-23B01 by using extension wire 00228-14100. P/N 97600-23B01 CANNOT be used in place of 97600-23B00 (vehicles produced before 11/01/93).

EFFECTIVE PRODUCTION DATE:

1) ELANTRA : October 11, 1993

2) SCOUPE : November 01, 1993

INTERCHANGEABILITY: N





A/C COMPRESSOR CONTROLS (ELANTRA) SCHEMATIC DIAGRAM (1)





A/C COMPRESSOR CONTROLS (SCOUPE) SCHEMATIC DIAGRAM (2)
