Engine Valve Stem - Seal Revision

Group: ENGINE MECHANICAL

Number: 95-20-002

Date: APRIL, 1995

Model: ALL

Subject
VALVE STEM SEAL REVISION

DESCRIPTION:

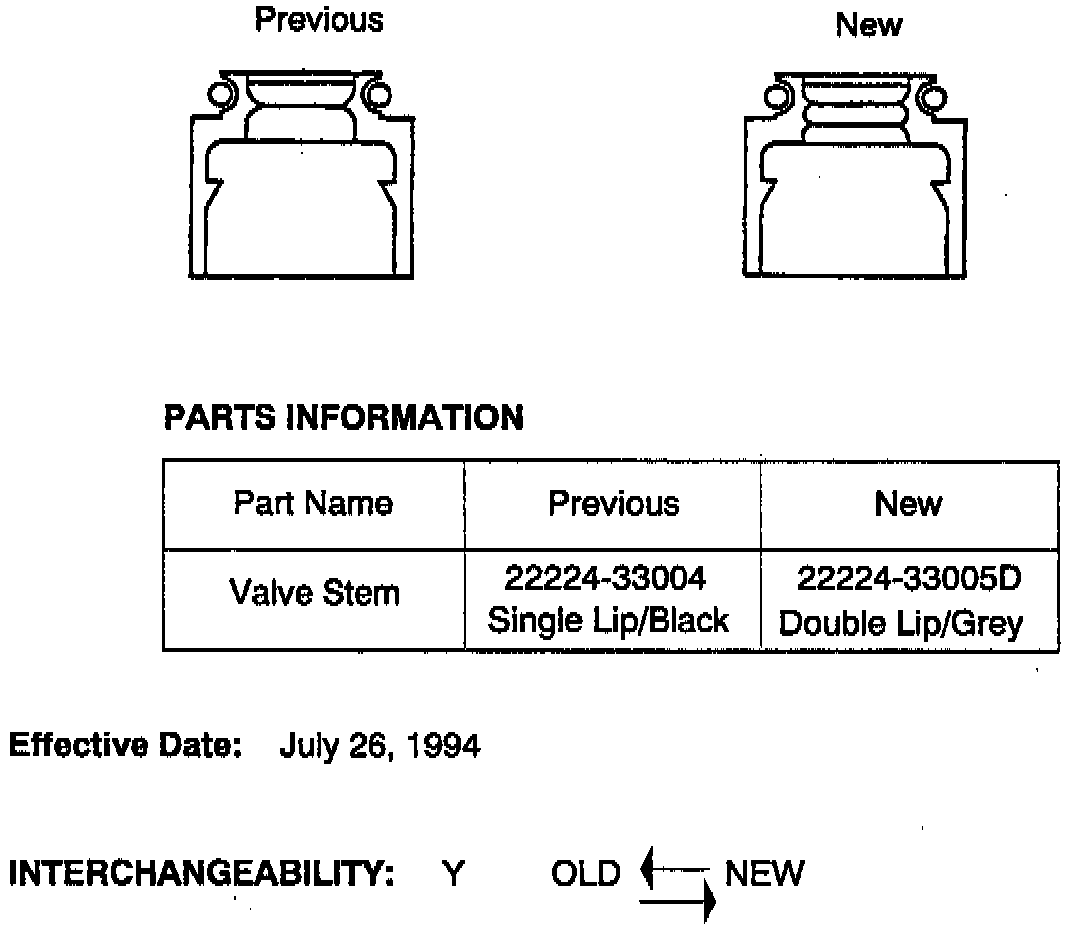

The valve stem seal has been updated. The new seal is a double lip design and can be identified by its grey color. The illustration demonstrates the change that has been made.
