Heater - Defrosting/Defogging Control Settings

Group: CLIMATE CONTROL
Number: 94-97-001
Date: MARCH, 1994
Model: ALL

Subject:
WINDSHIELD DEFROSTING/ DEFOGGING

CONDITION:

Slow defrosting/defogging of windshield.

CAUSE:

Incorrect setting of ventilation system.

CORRECTION:

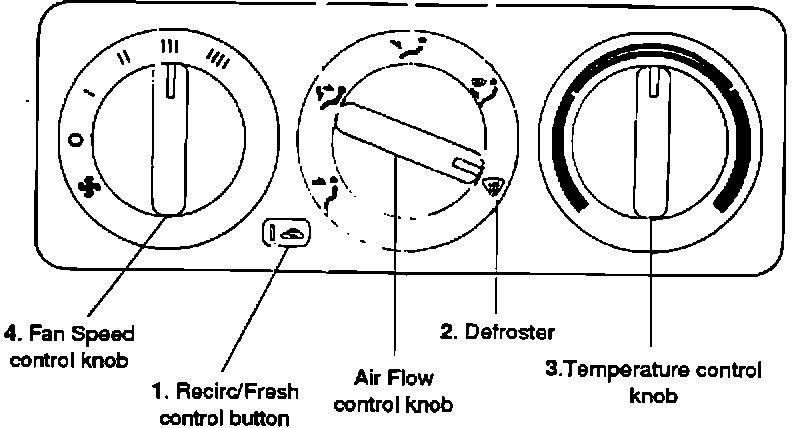

Set the air intake control (1) to the "FRESH" position.

Set the air distribution control (2) to the "DEF" position.

Set the temperature control (3) to a comfortably warm position.

Set the fan speed control (4) to position 3 or 4.

Turn the A/C on if the vehicle is so equipped





NOTE:
In high humidity areas, the A/C can be used with the Recirc/Fresh control button in the "RECIRC" position for increased defogging action..
