Horn Relay - Location Change
Group: BODY ELECTRICALNumber: 94-90-002
Date: MARCH, 1994
Model: ELANTRA
Subject:
CHANGE OF HORN RELAY LOCATION
DESCRIPTION:

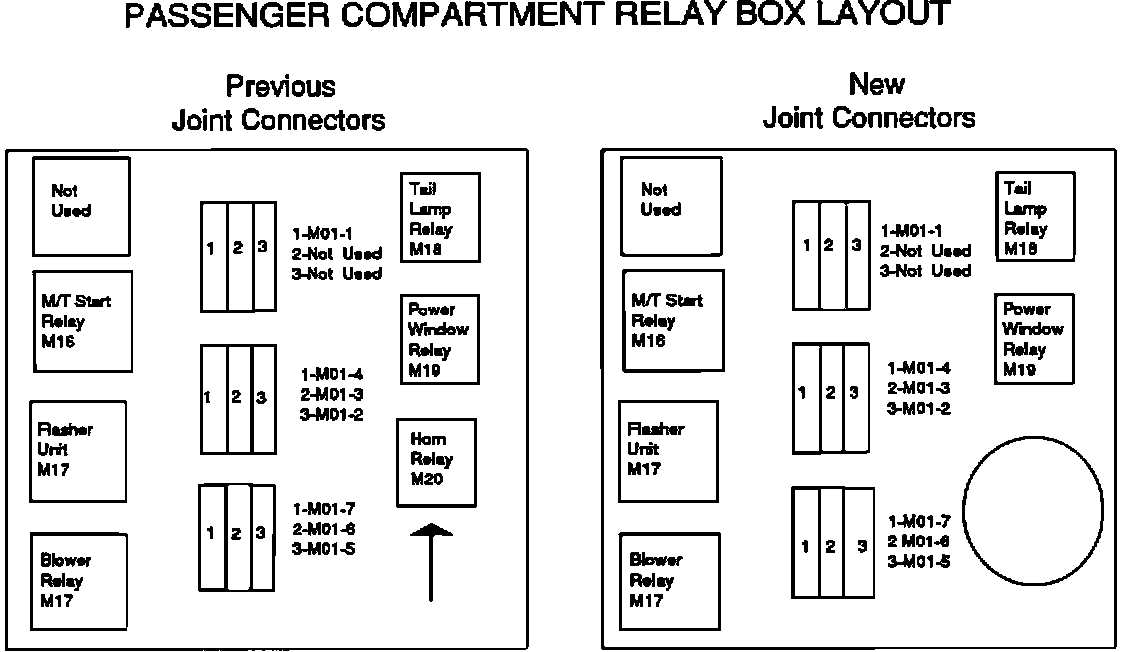

The horn relay location has been changed from the passenger compartment relay box to the engine compartment relay box. To accommodate this change, the engine compartment fuse/ relay box cover, engine wiring assembly, and main wiring assembly have been modified.
PARTS INFORMATION:
Refer to latest Parts Catalog/Microfiche for applicable parts.
Effective Date: July 27, 1993
INTERCHANGEABILITY:
