Sunroof - Motor Installation
Group: BODY ELECTRICALNumber: 94-90-012
Date: AUGUST, 1994
Model: ELANTRA/SONATA
Subject:
SUN ROOF MOTOR INSTALLATION
REMOVING SUNROOF MOTOR:
1) Before removing the sunroof motor, fully close the sunroof. Use the sunroof wrench if the motor is inoperable. (Be careful not to go past the closed position into the tilt-up position).

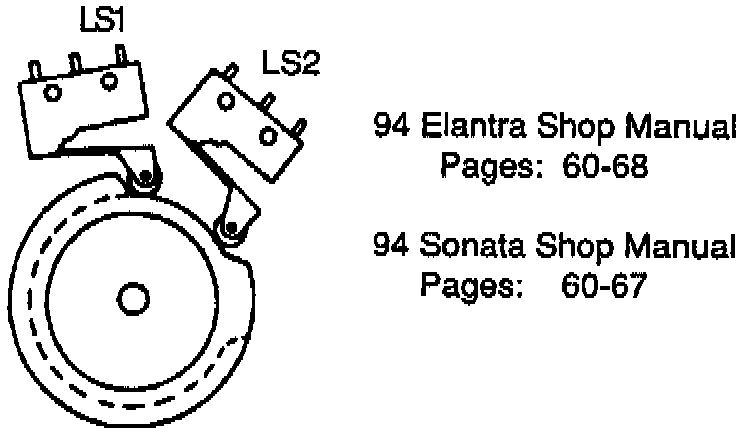

2) Prior to installing a new motor, make sure the limit switches (LS1 & LS2) are at the fully closed position. This can be done by using the sunroof wrench and manually rotating the motor.
3) Install the new motor and check the operation of all functions.
