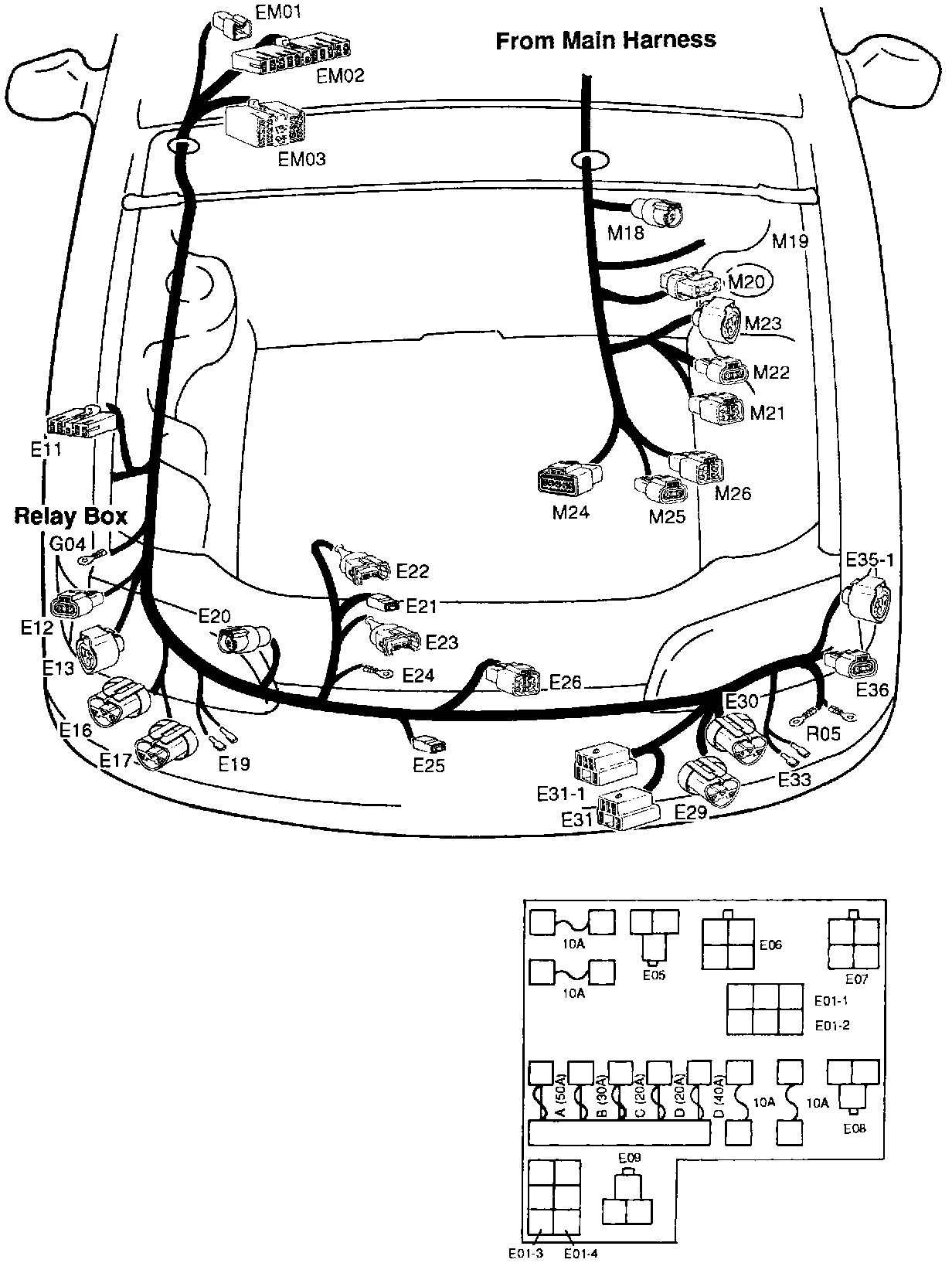

Engine Harness

Engine Wiring Harness:

E01-1 Joint Connector (Headlamp) (High)
E01-2 Joint connector (Headlamp) (Low)
E01-3 Joint Connector (Headlamp)
E01-4 Joint connector (Taillamp)
E03 Washer motor
E05 Condenser fan relay
E06 Tail lamp relay
E07 A/C relay
E08 Radiator fan relay (Low)
E09 Radiator fan relay (High)
E11 Daytime running light unit (Canada)
E12 Side marker lamp (RH)
E13-1 Turn signal lamp (RH)
E16 Headlamp (RH)
E17 Headlamp(RH)
E19 Horn (RH)
E20 Pressure switch
E21 Coolant temp. sensor
E22 Coolant temp. sender
E23 Generator (S or L)
E24 Generator (+)
E25 Condenser fan
E26 Radiator fan
E29 Headlamp (RH)
E30 Headlamp (RH)
E31 Headlamp relay
E31-1 Headlamp relay
E33 Horn (LH)
E35-1 Turn signal lamp (LH)
E36 Side marker lamp (LH)
EM01 Connection with main harness
EM02 Connection with main harness
EM03 Connection with main harness
