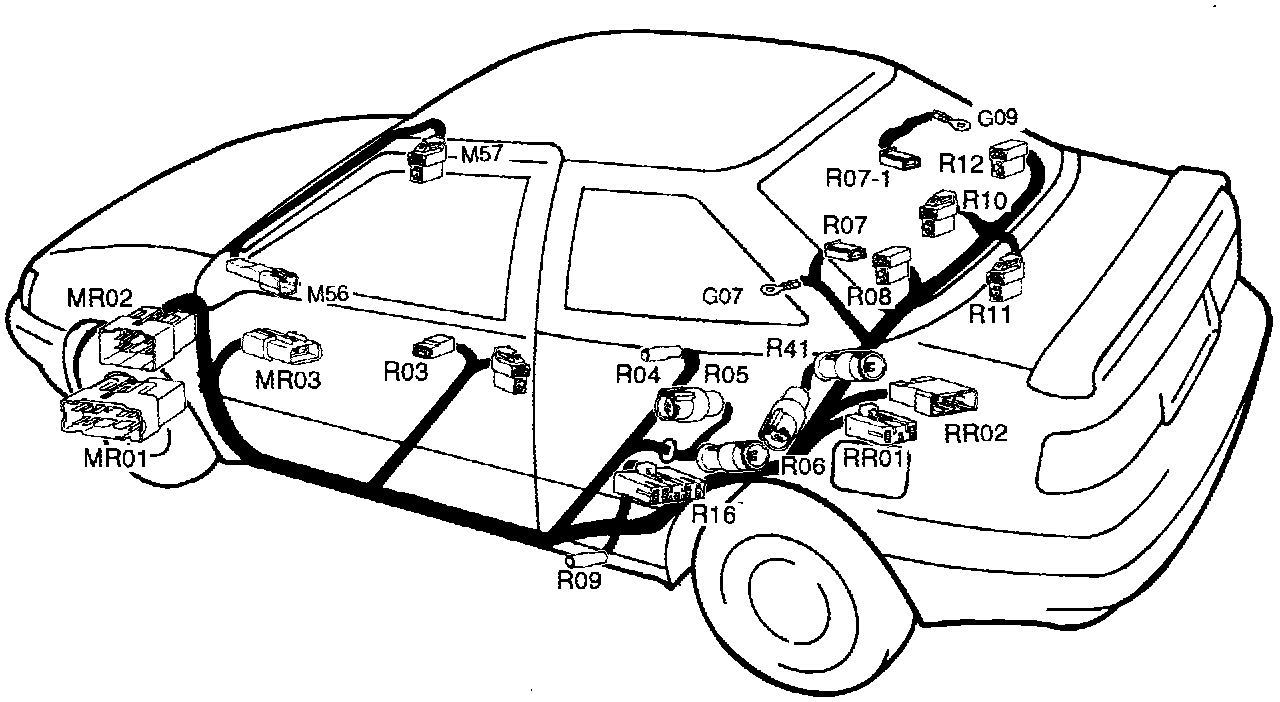

Floor Wiring Harness

Floor Wiring Harness:

R03 Parking brake switch
R02 Lap belt switch (U.S.A.)
R02 Seat belt switch (CANADA)
R04 Door switch (RH)
R05 Fuel pump
R06 Fuel sender extension wiring
R07 Heated glass (+)
R07-1 Heated glass (-)
R08 Speaker (Rear, LH)
R09 Door switch (LH)
R10 High mounted stop lamp
R11 Luggage lamp
R12 Speaker (Rear, RH)
R16 A/T and key lock control unit
R41 Fuel sender
M56 Root extension wiring
M57 Room lamp
MR01 Connection with main harness
MR02 Connection with main harness
MR03 Connection with main harness
MR04 Connection with main harness
RR01 Connection with rear floor harness
RR02 Connection with trunk lid harness
