Evaporative Emissions System: Testing and Inspection

1. Disconnect the vacuum hose from the throttle body, and connect a vacuum pump to the vacuum hose.

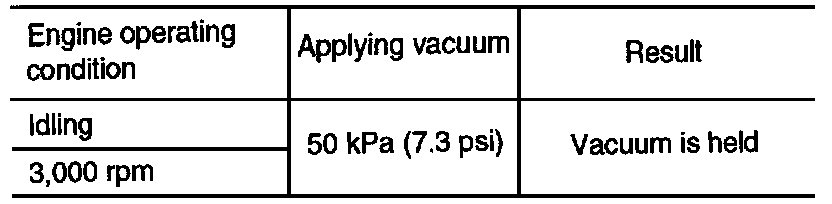

2. Check the following points





- When the coolant temperature is 60° C (140°F) or below.





- and when coolant temperature is 70° C (158°F) or higher.
