Distributor: Testing and Inspection

Circuit Diagram

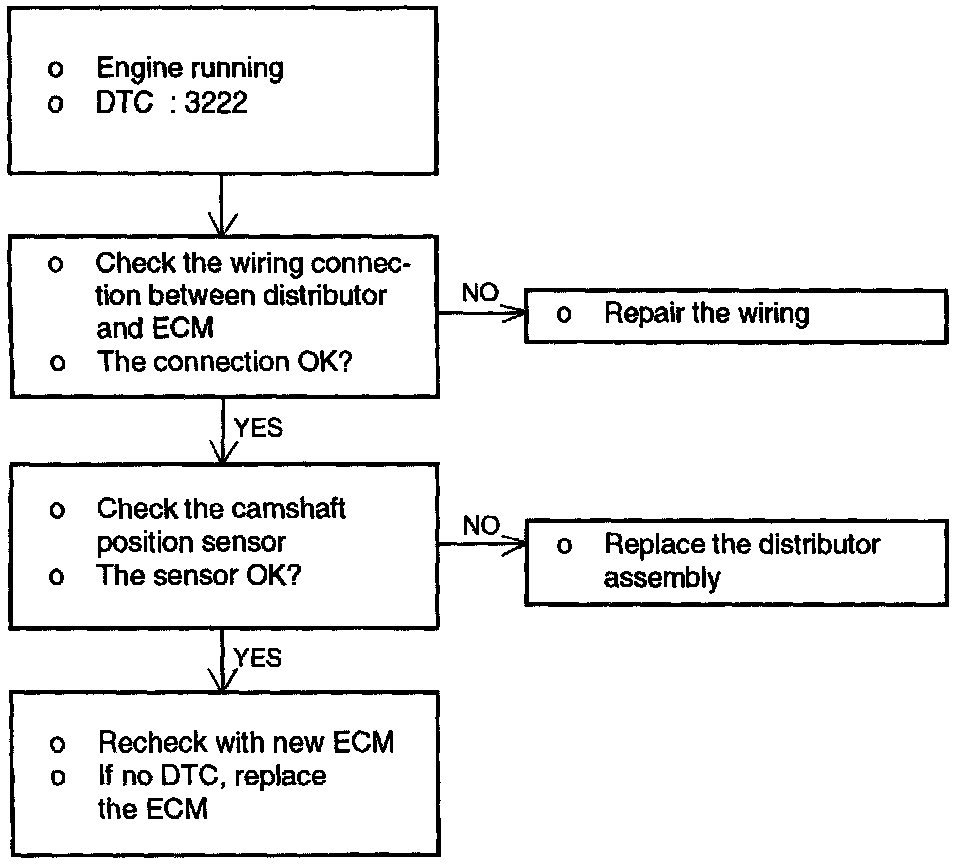

Troubleshooting Procedures

Troubleshooting Hints
If the camshaft position sensor does not operate correctly, correct sequential injection is not made so that the engine may stall or run irregularly at idle or fail to accelerate nomally.

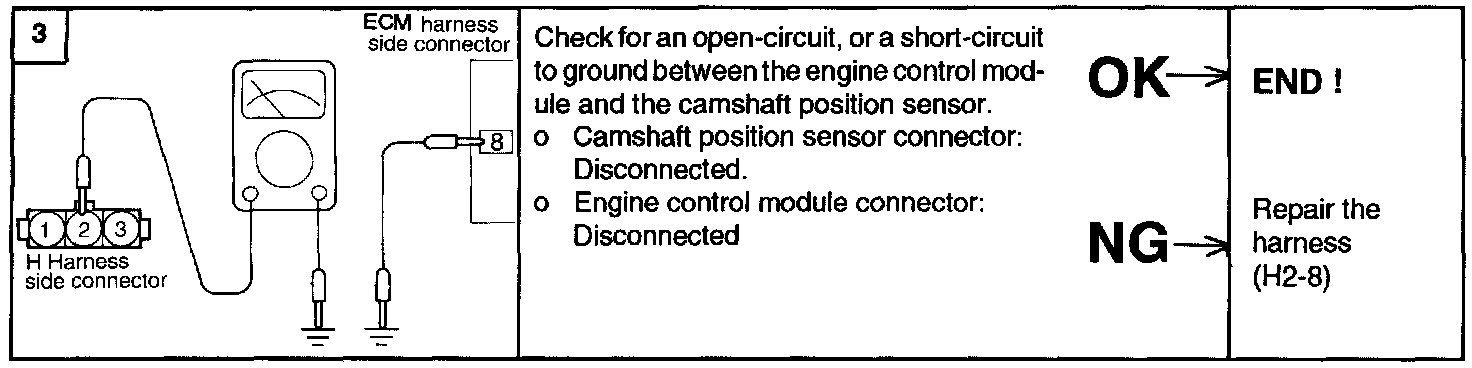

Harness Inspection Procedure
