Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1994
>>
Scoupe L4-1495cc 1.5L SOHC Turbo VIN N MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Daytime Running Lamp
Daytime Running Lamp
Daytime Running Lights (DRL) (Part 1 Of 3):

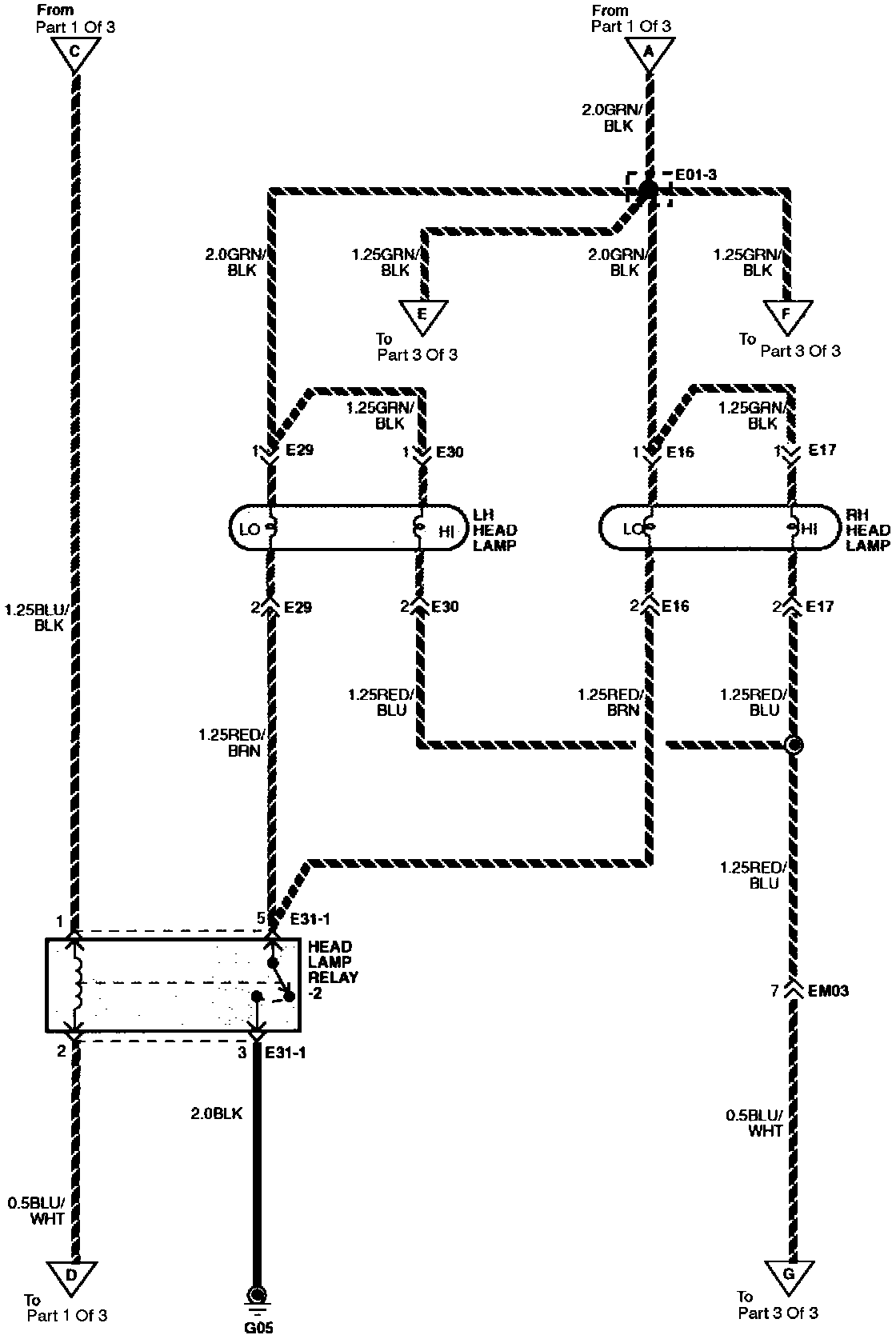

Daytime Running Lights (DRL) (Part 2 Of 3):

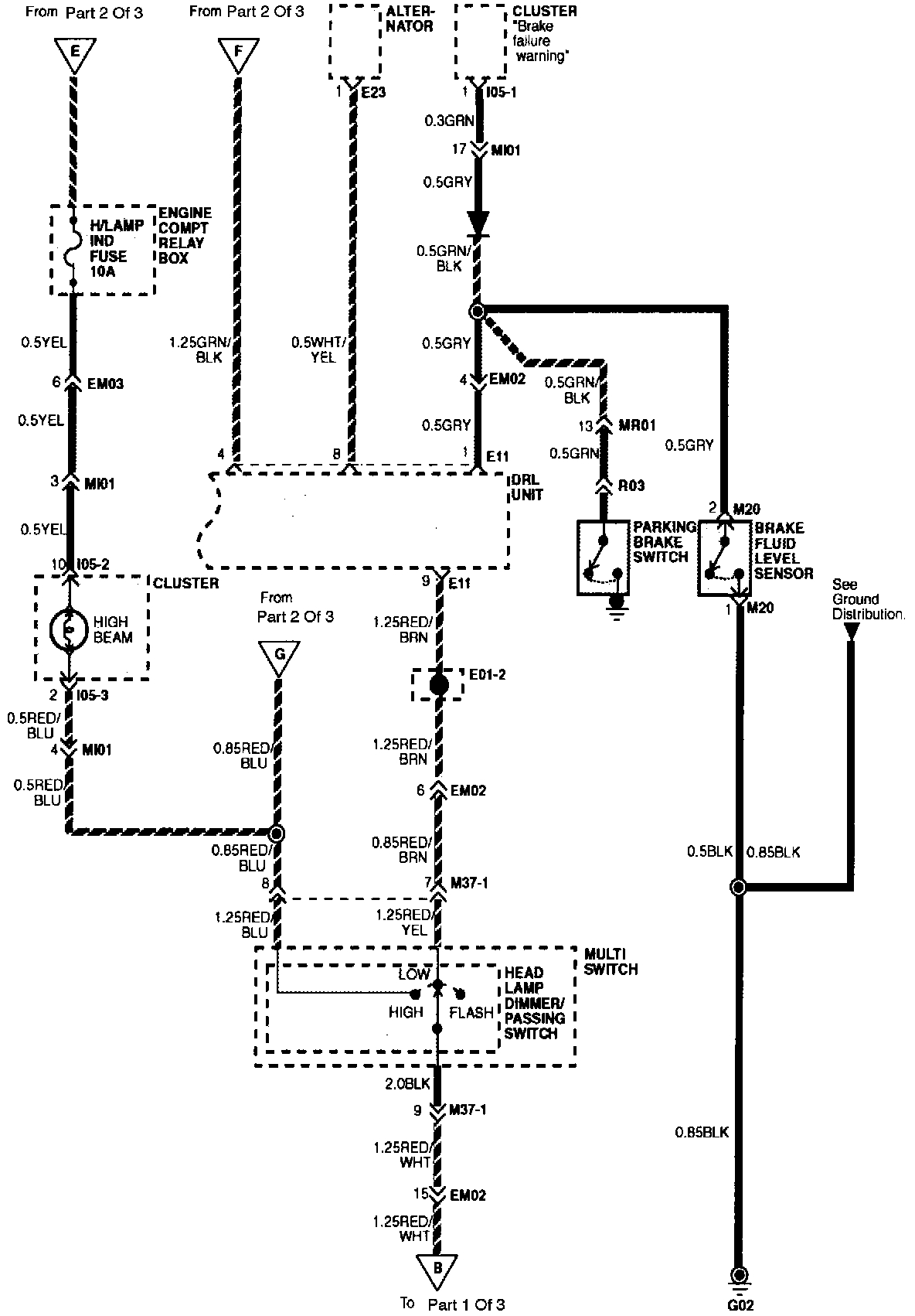

Daytime Running Lights (DRL) (Part 3 Of 3):
