Home >> Hyundai >> 1994 >> Scoupe L4-1495cc 1.5L SOHC Turbo VIN N MFI >> Repair and Diagnosis >> Locations >> Component Locations >> Vehicle Lift Points

Vehicle Lift Points

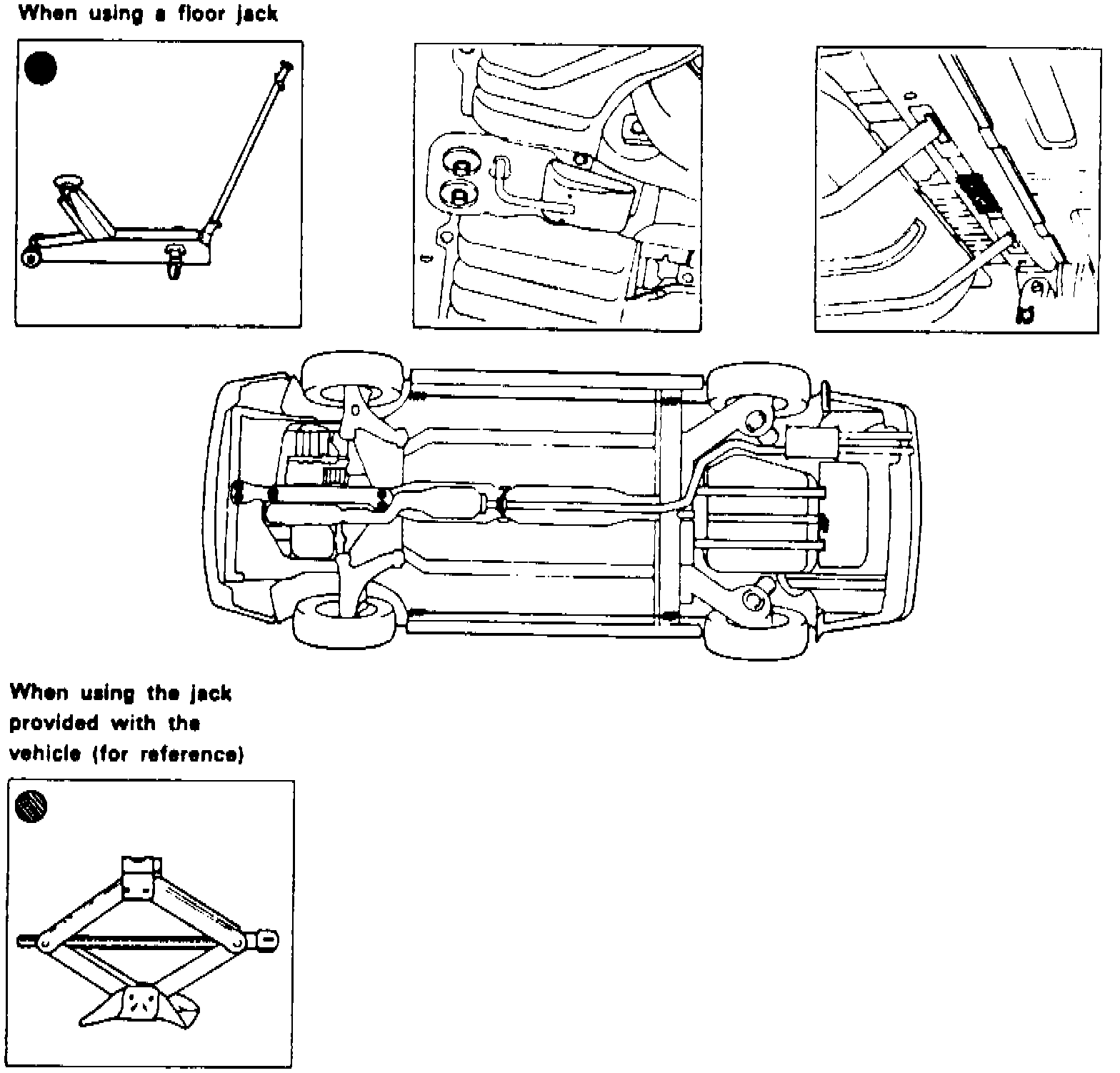

Fig. 7 Floor Jack:

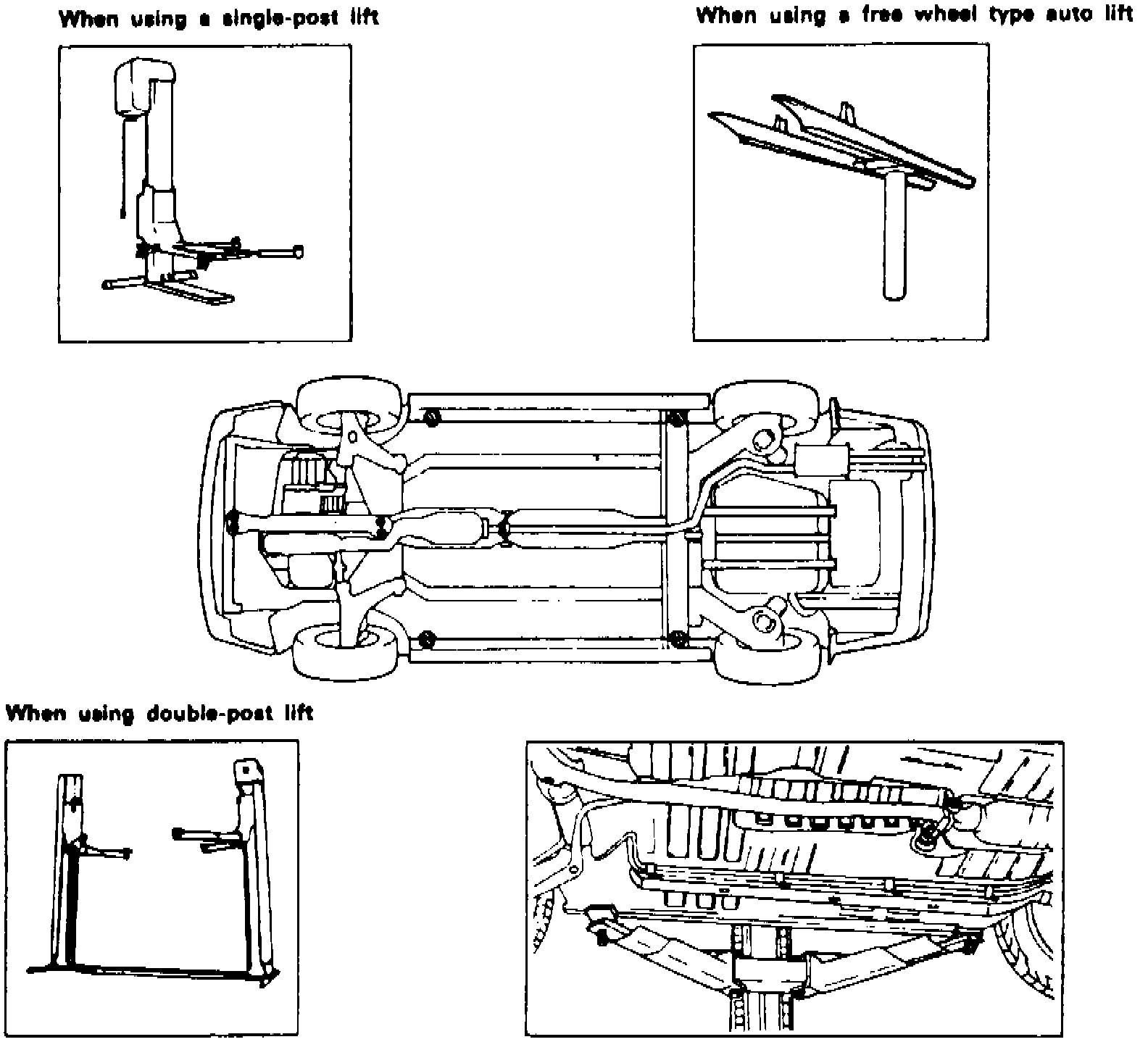

Fig. 6 Hoist:
