Home >> Hyundai >> 1994 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> D16 - E15

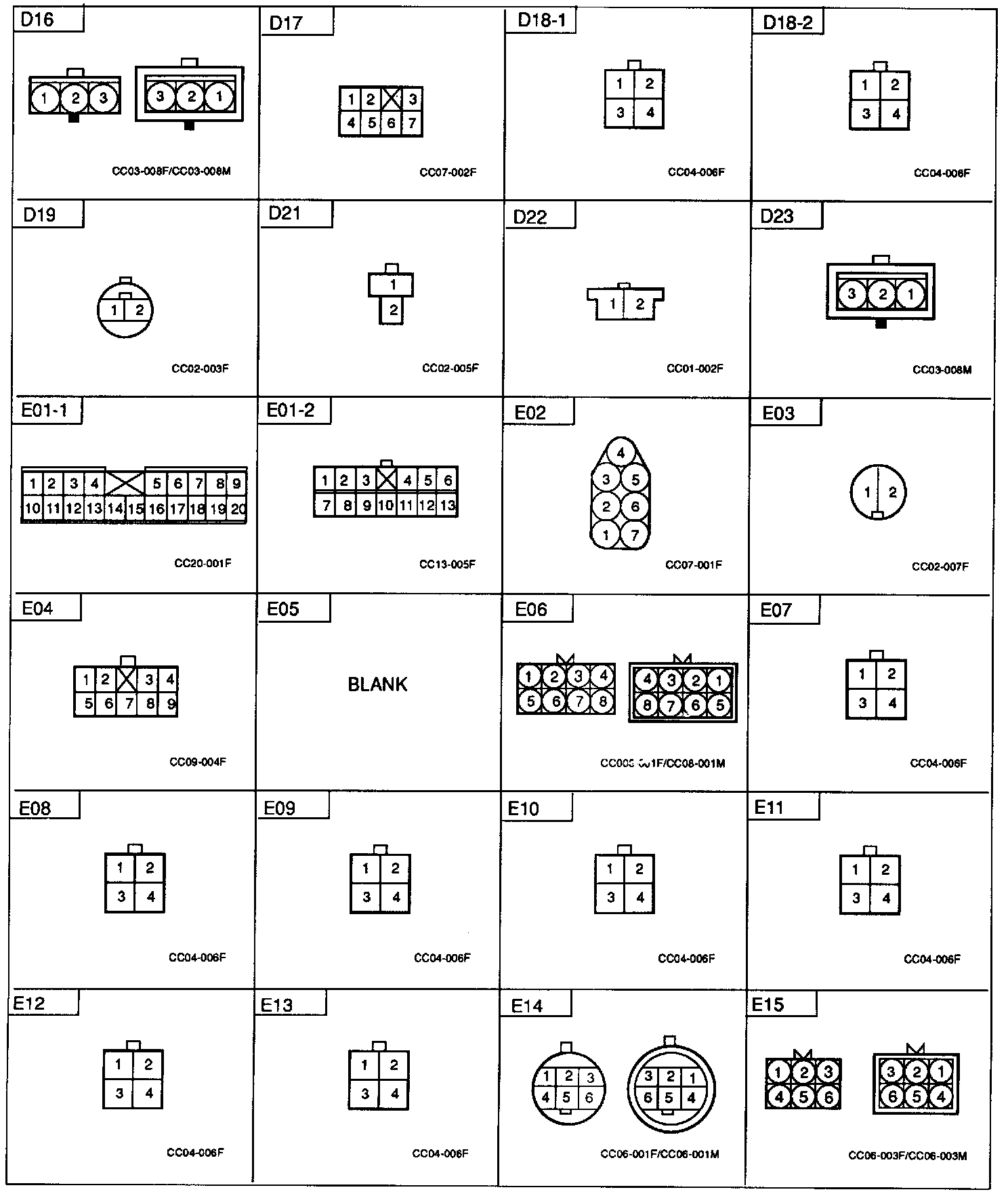

D16 - E15

D16 - E15:
