Blower Motor

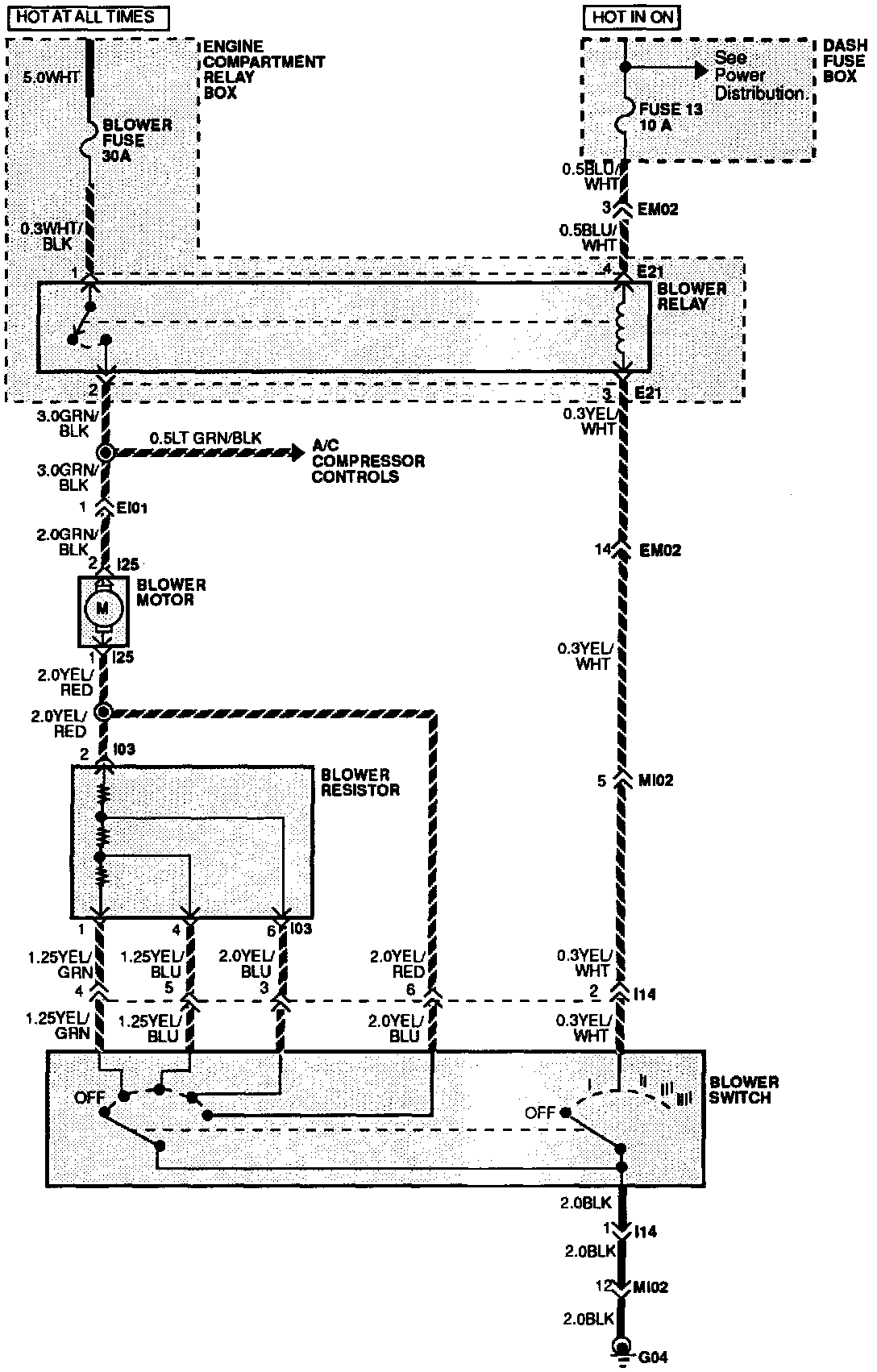

Blower Controls (Manual A/C):



Blower Controls (Semi Automatic Temperature Control A/C):
