Fuse Block

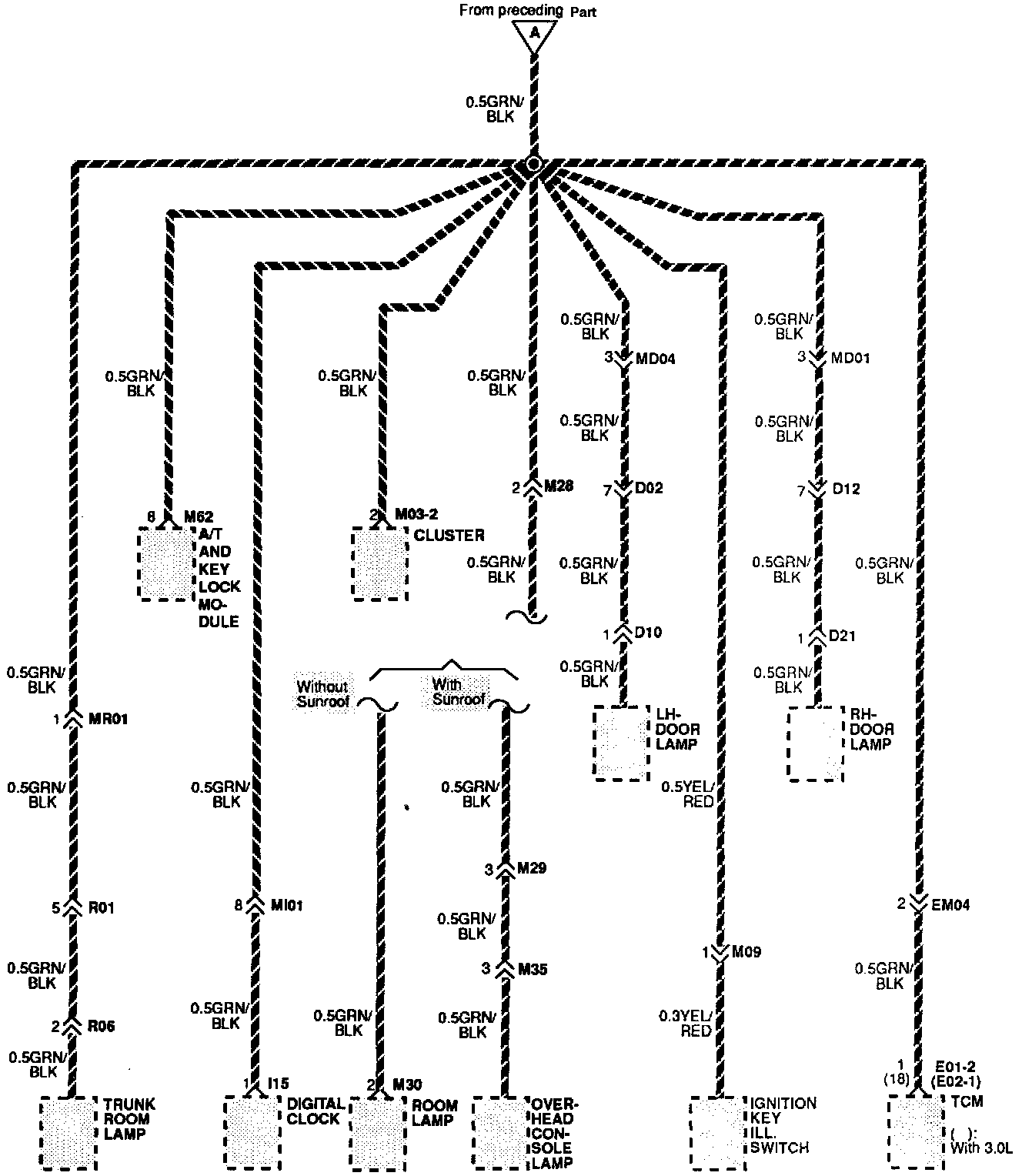

Dash Fuse Box Details (Part 1 0f 5):

Part 1 of 5

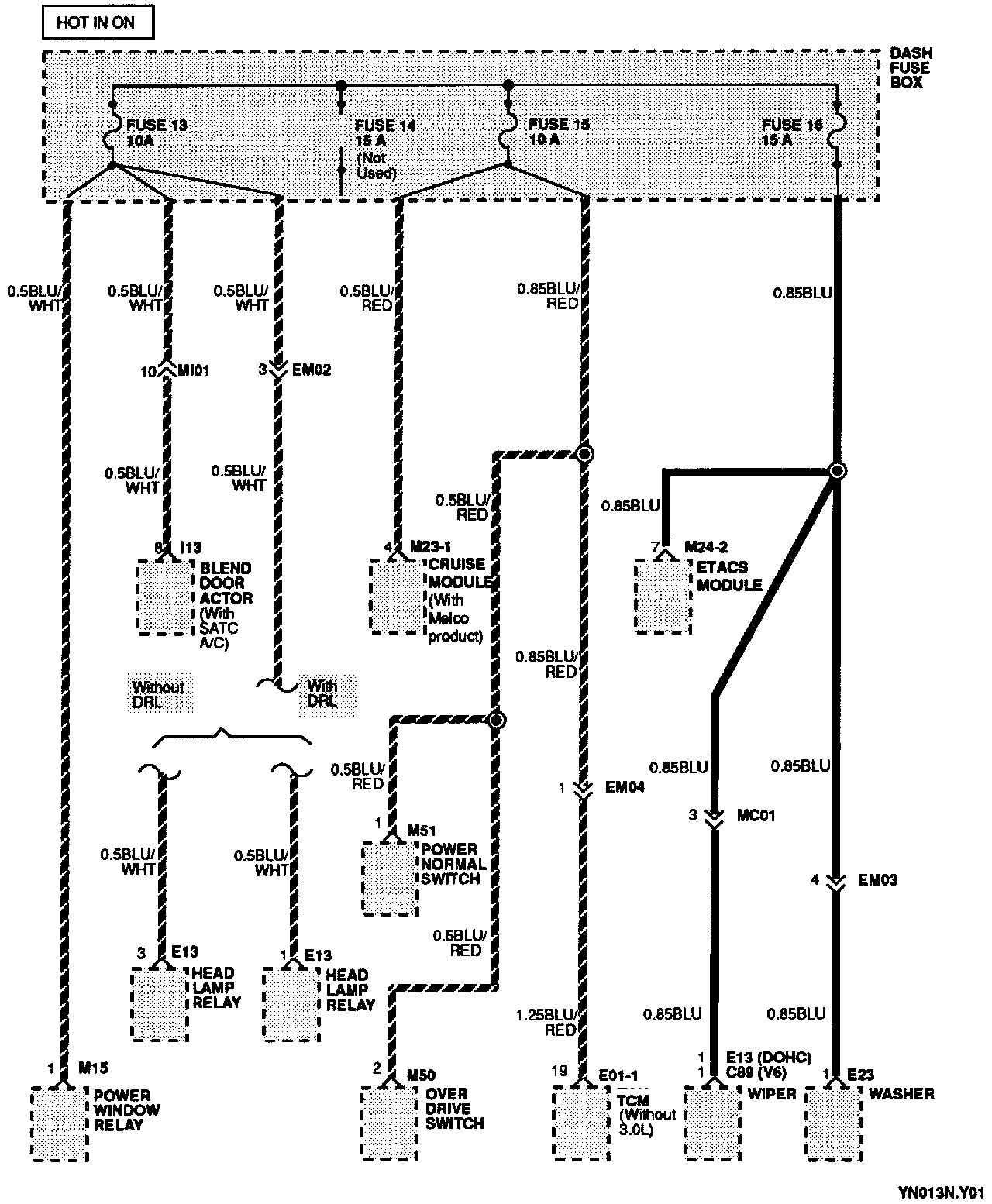

Dash Fuse Box Details (Part 2a 0f 5):

Part 2a of 5

Dash Fuse Box Details (Part 2b 0f 5):

Part 2b of 5

Dash Fuse Box Details (Part 3 0f 5):

Part 3 of 5

Dash Fuse Box Details (Part 4 0f 5):

Part 4 of 5

Dash Fuse Box Details (Part 5 0f 5):

Part 5 of 5
