Home >> Hyundai >> 1994 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G06

G06

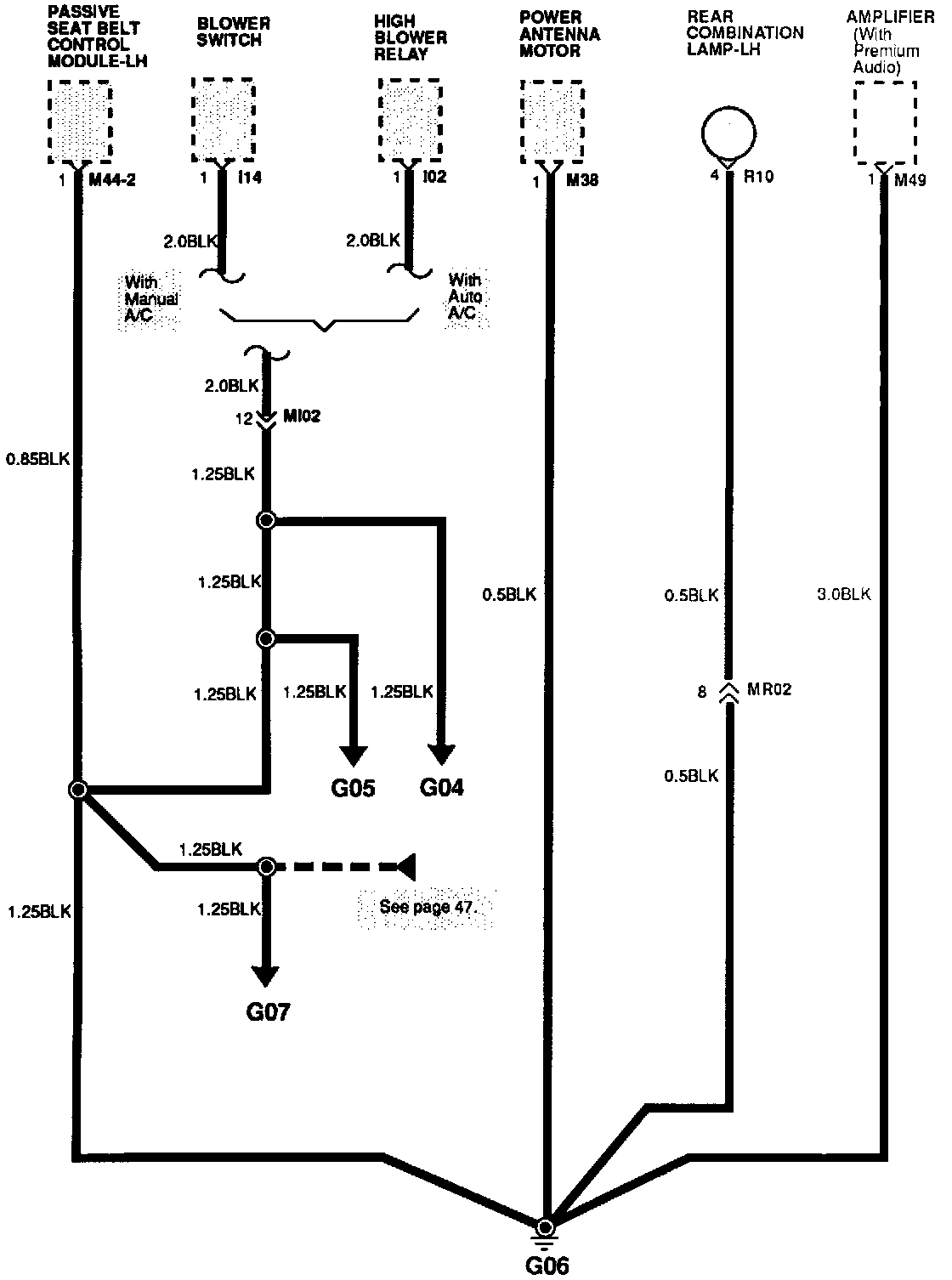

Ground Distribution (G06):
