Door Switch - Mounting Change
Group: ELECTRICALNumber: 94-90-013
Date: AUGUST, 1994
Model: SONATA
Subject:
CHANGE OF MOUNTING METHOD FOR DOOR SWITCH

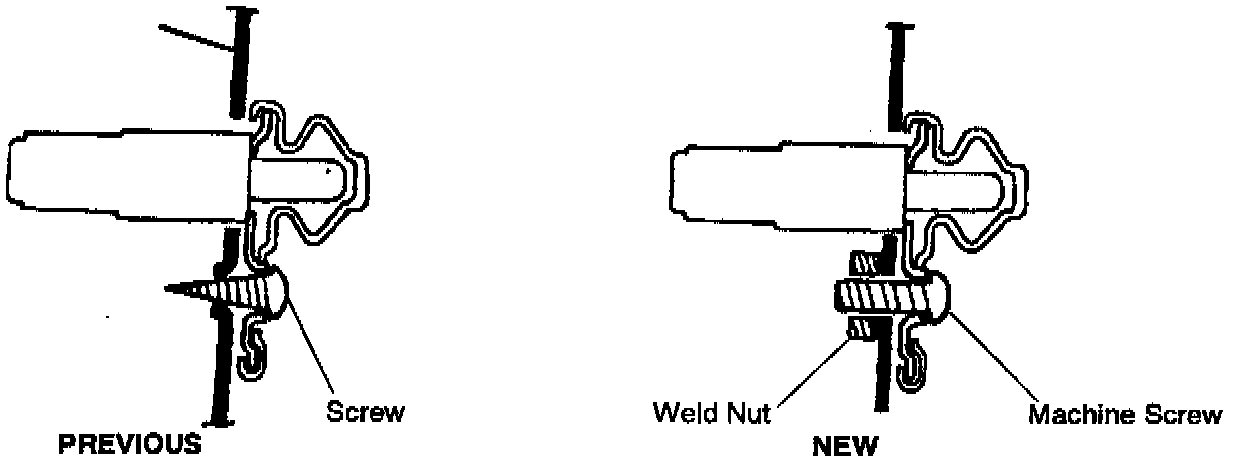

The mounting method for the door switch in the Sonata has changed as shown.
The door switch is now mounted with a weld-nut and a machine screw that improve its tightening and grounding performance.
