High Mount Stop Lamp - Bulb Replacement Procedure
GROUP: BODY ELECTRICALNUMBER: 95-90-008
DATE: JUNE, 1995
MODEL: SONATA - Y3
SUBJECT:
Center High Mounted Stop Lamp Assembly Bulb Replacement Procedure
INSTRUCTIONS FOR BULB REPLACEMENT IN CENTER HIGH MOUNTED STOP LAMP ASSEMBLY (CHMSL)
If the high mounted stop lamp does not come ON or illuminate when the brake pedal is pressed, check and repair as below:

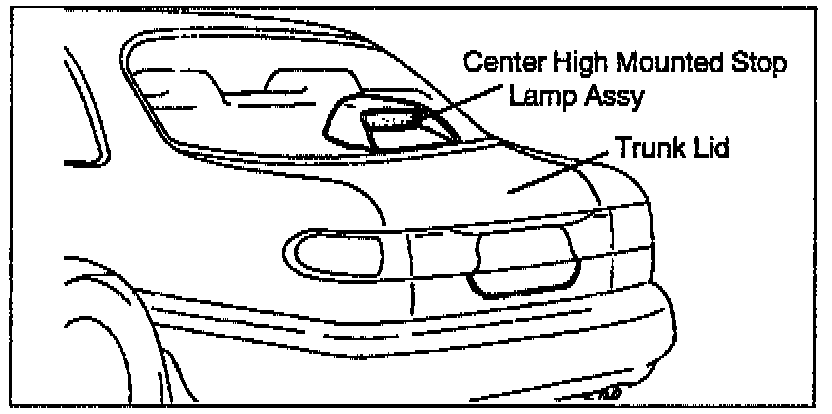

1. Open the trunk lid.

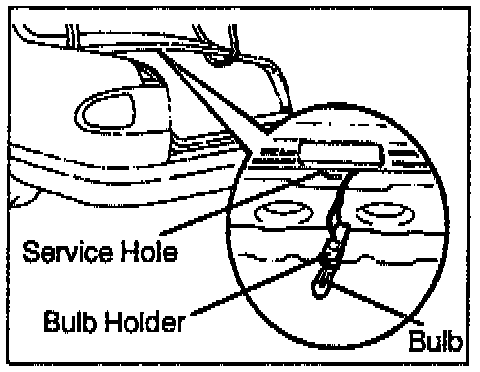

2. Remove the bulb holder from the CHMSL housing through the service hole.
3. Replace bulb with a new one and install it into the CHMSL housing.
NOTE:

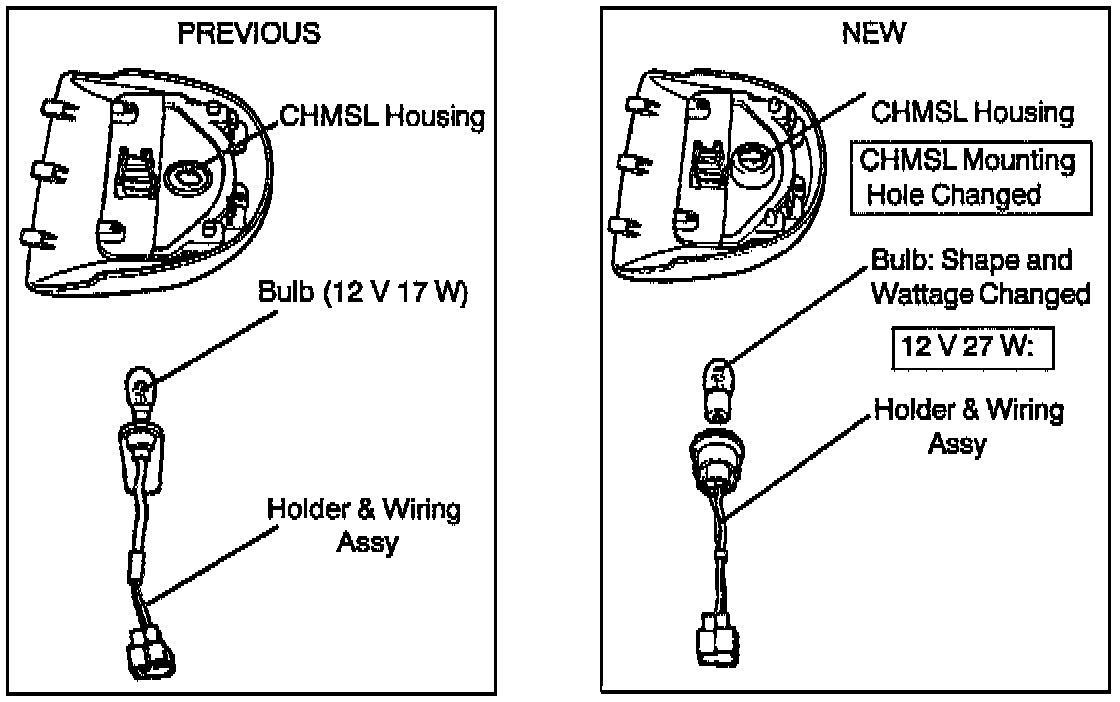

Bulb specifications differ according to vehicle production date.
4. If the bulb is working, check the battery, fuses and wiring connections per the schematic diagram of Shop Manual, Volume 2.

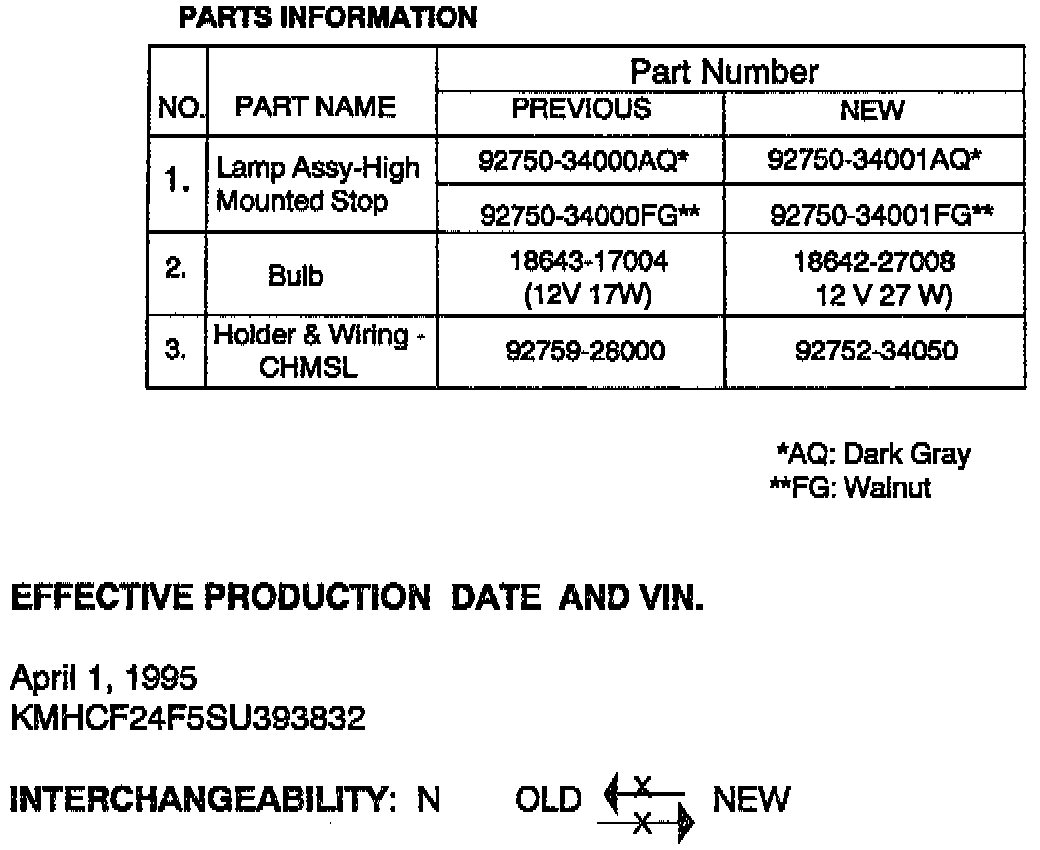

Parts Information
Effective Production
