System Diagram

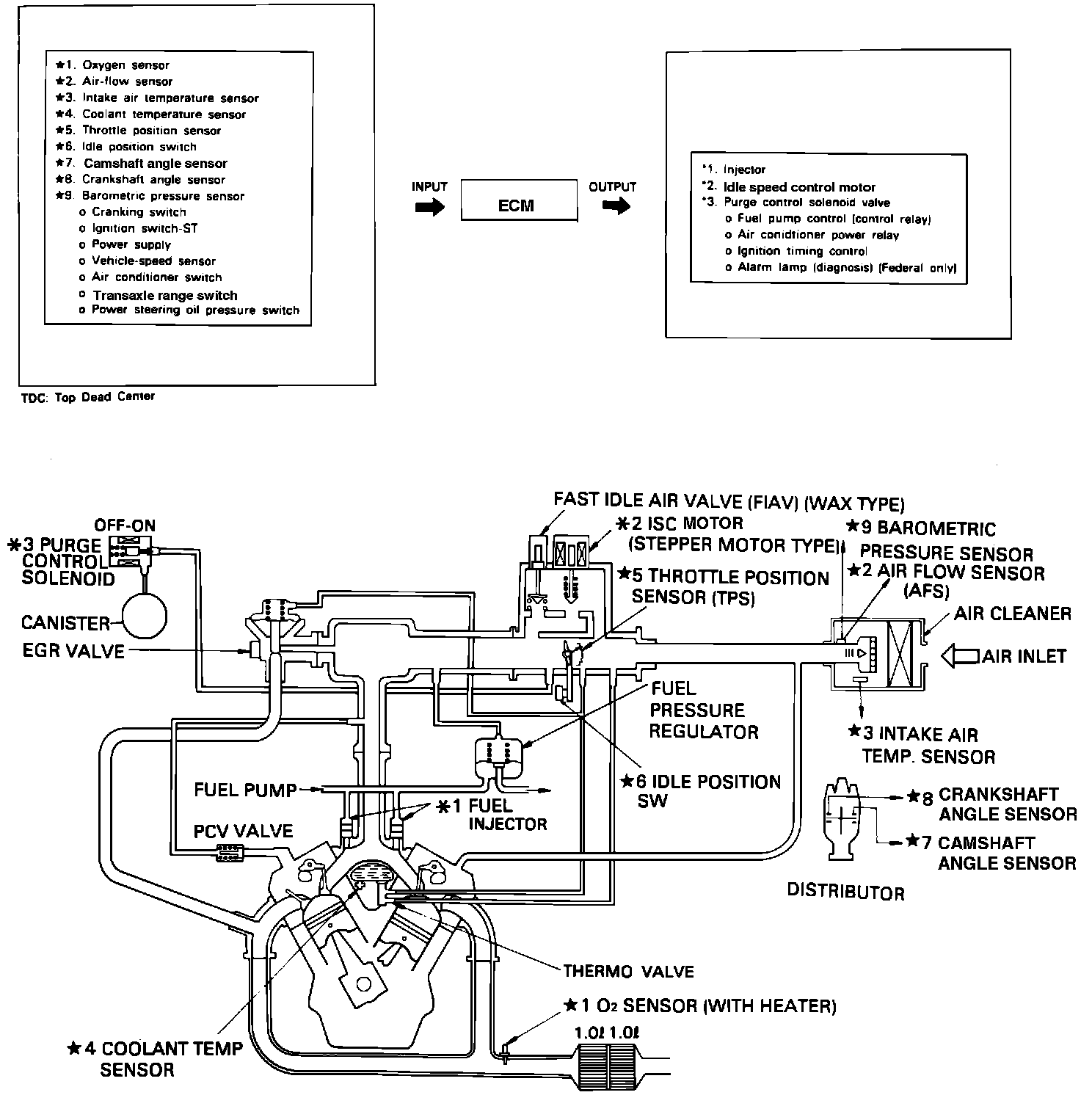

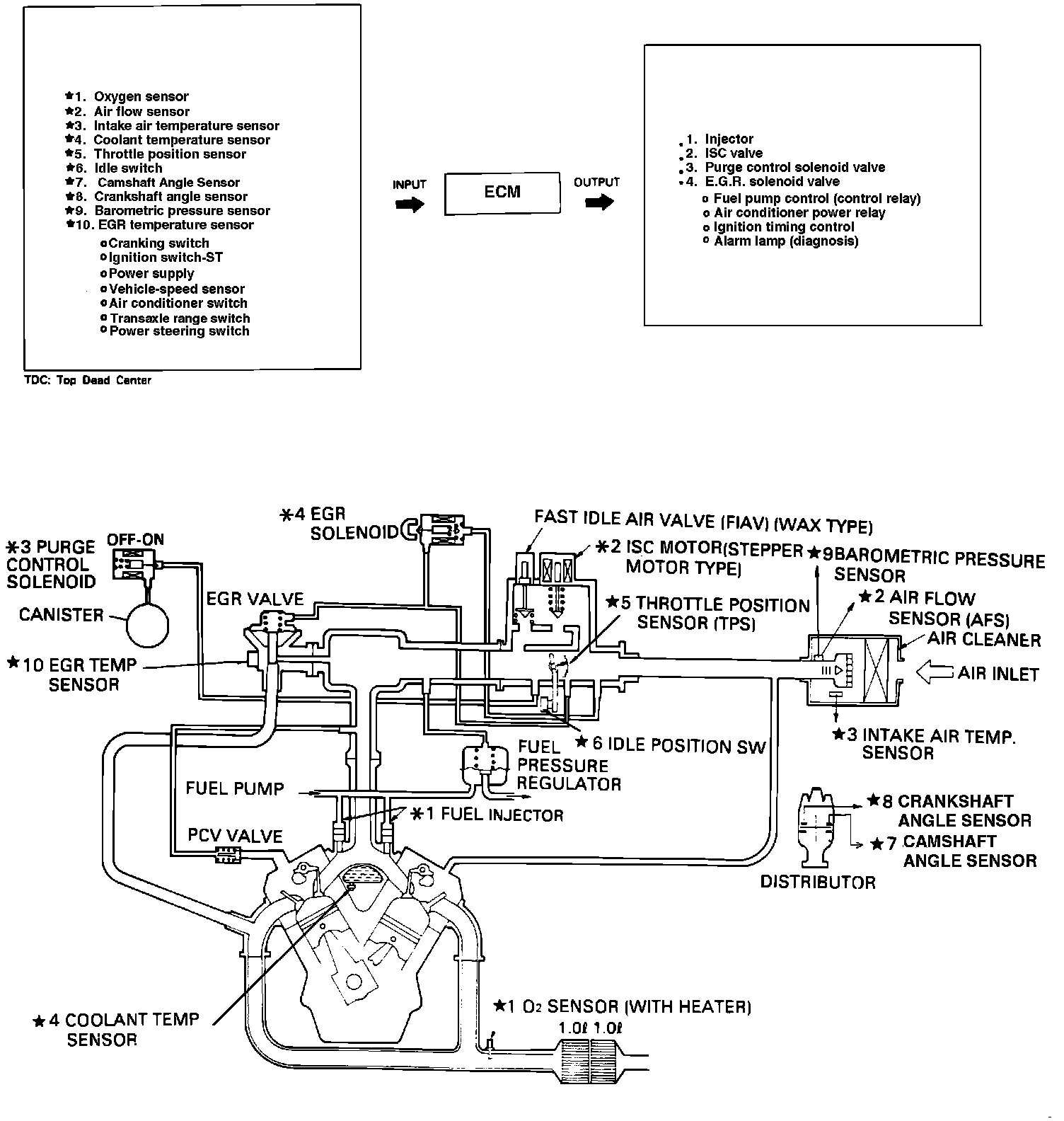

3.0 Litre SOHC V-6





Vacuum Hoses And Components





Vacuum Hoses, Except California





Fuel And Vapor Line System And Components





Fuel Tank System And Components
