Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1995
>>
Accent L4-1.5L SOHC Alpha Engine
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
E23 - E38-2
E23 - E38-2

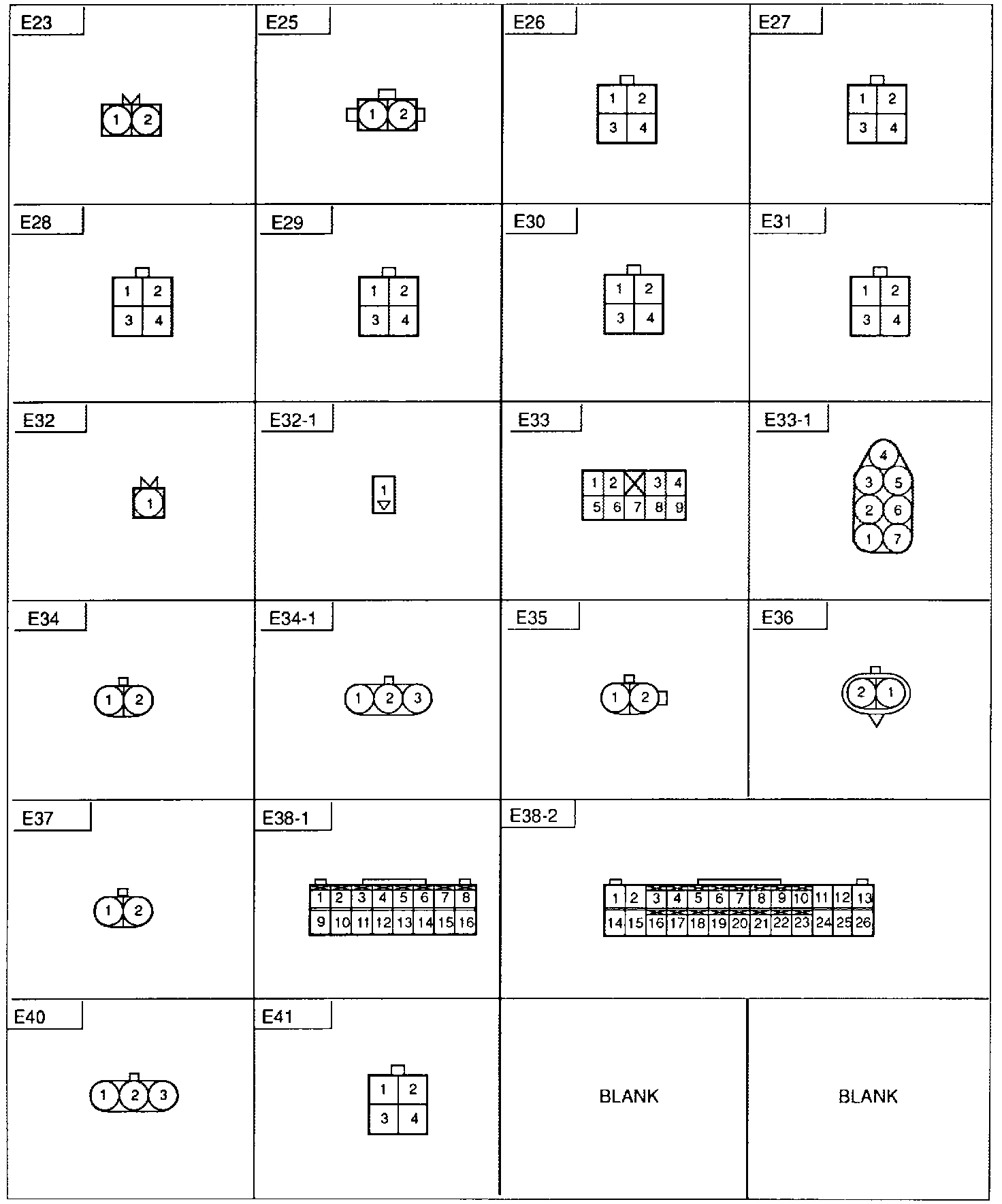

E23 ~ E38-2:
