Home >> Hyundai >> 1995 >> Accent L4-1.5L SOHC Alpha Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> I01 - I19

I01 - I19

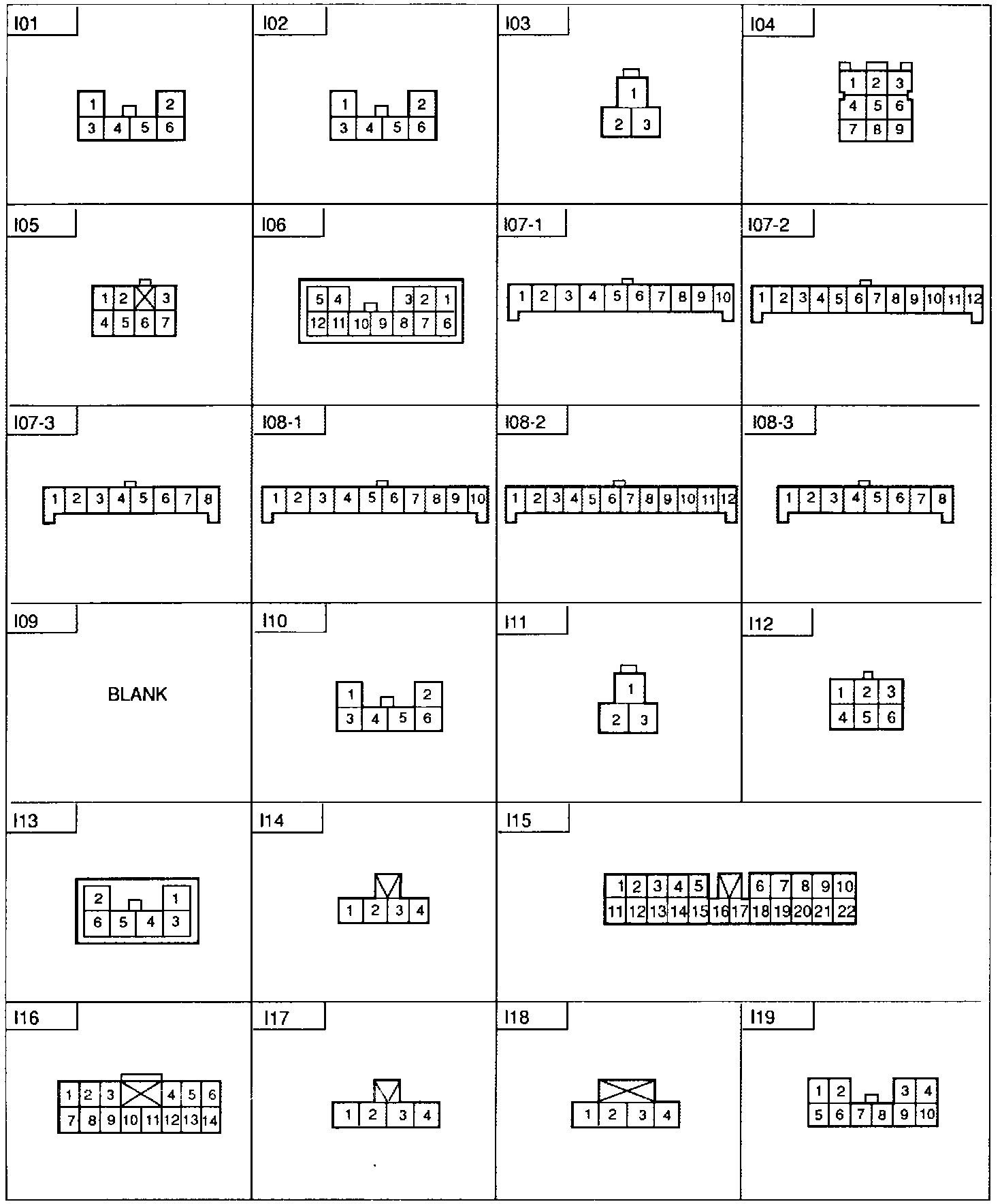

I01 ~ I19:
