Home >> Hyundai >> 1995 >> Accent L4-1.5L SOHC Alpha Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> M23 - M50

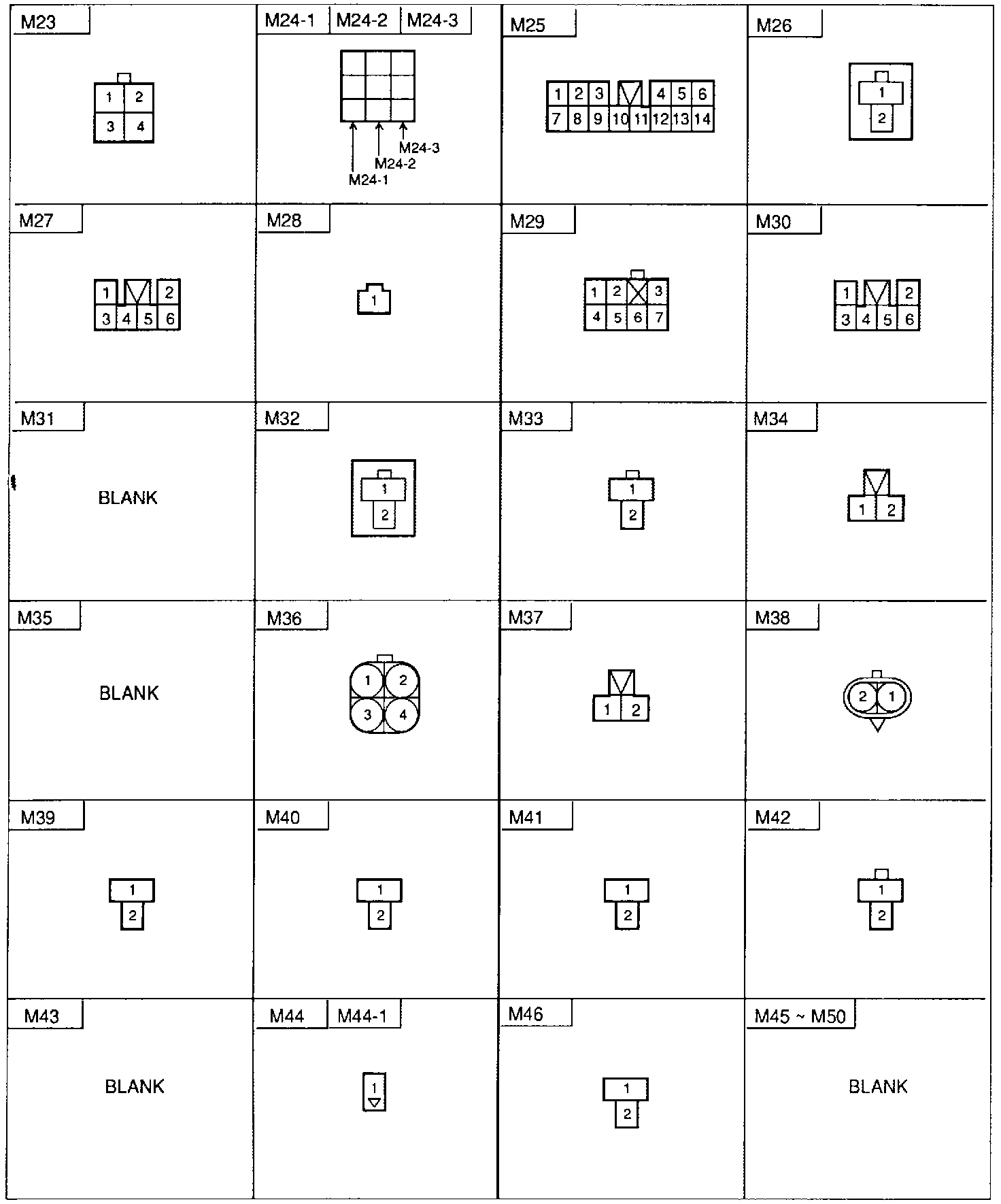

M23 - M50

M23 ~ M50:
