Home >> Hyundai >> 1995 >> Accent L4-1.5L SOHC Alpha Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> M51 - R33

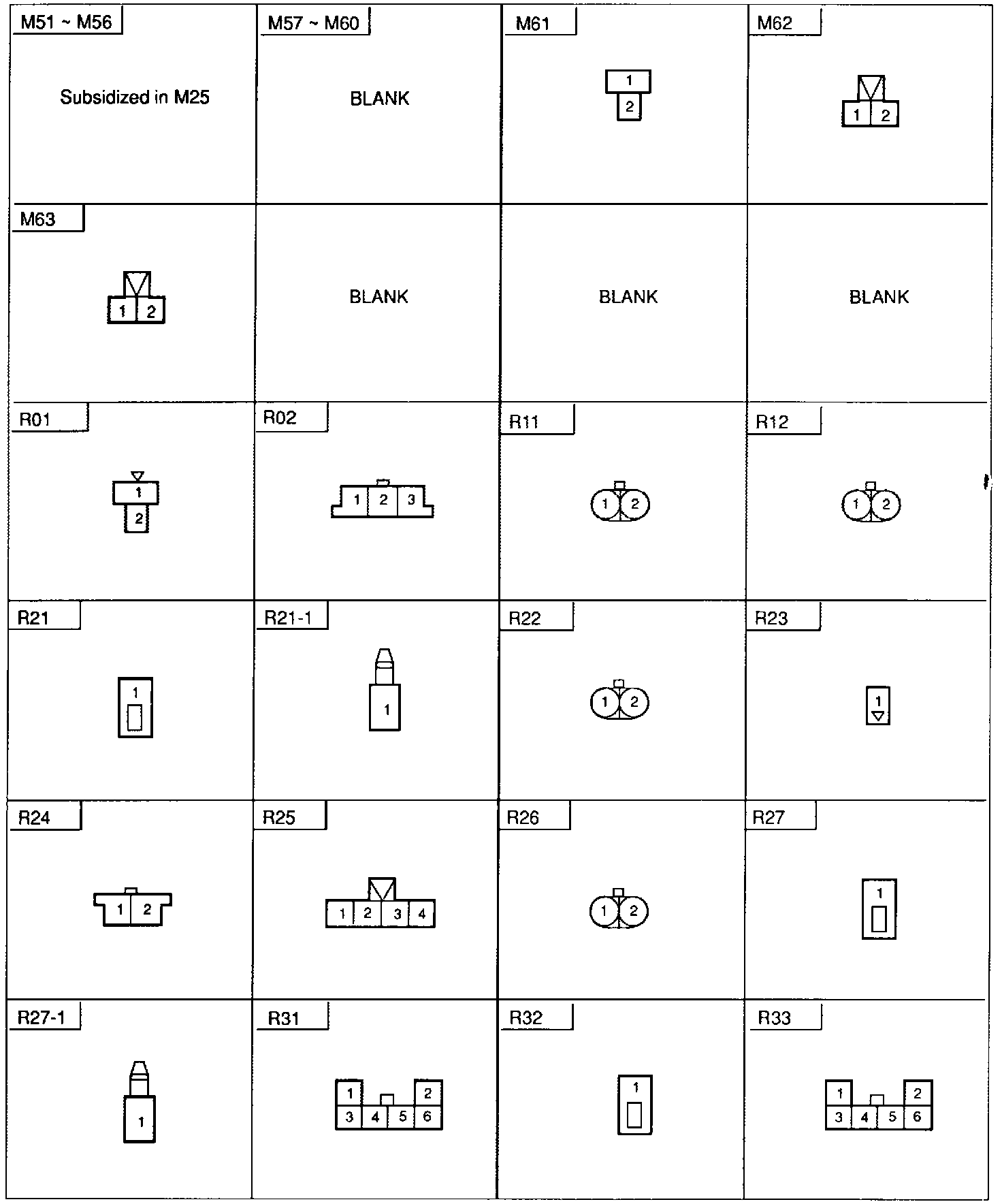

M51 - R33

M51 ~ R33:
