Accent L4-1.5L SOHC Alpha Engine
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Harness
Engine Harness

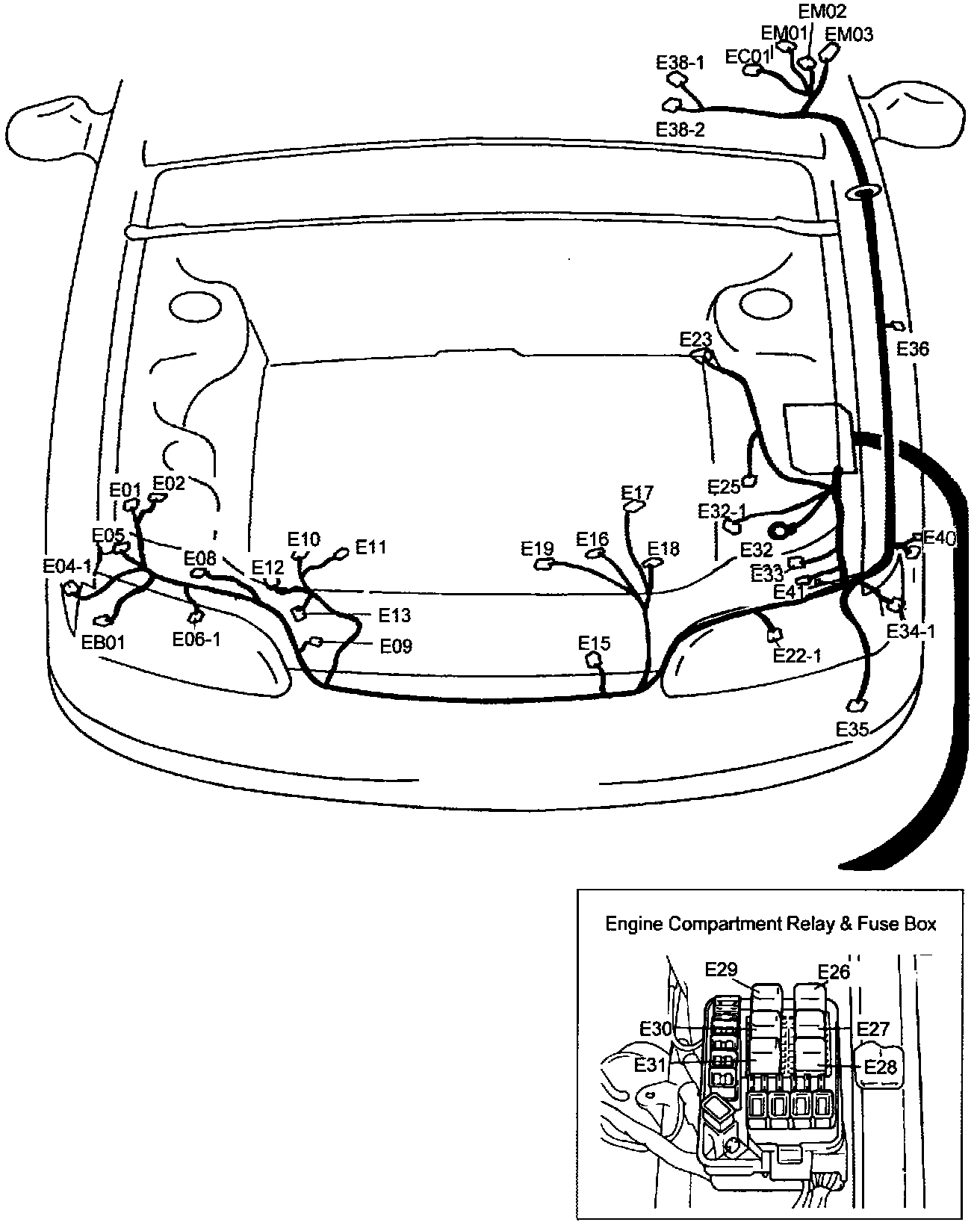

Harness Layout:
